CWE/SANS Top 25 Most Dangerous Software Errors
Home > CWE List > VIEW SLICE: CWE-1154: Weaknesses Addressed by the SEI CERT C Coding Standard (3.2)
ID

CWE VIEW: Weaknesses Addressed by the SEI CERT C Coding Standard

View ID: 1154
Type: Graph
Status: Stable
Downloads: Booklet | CSV | XML
+ Objective
CWE entries in this view (graph) are fully or partially eliminated by following the guidance presented in the online wiki that reflects that current rules and recommendations of the SEI CERT C Coding Standard.
+ Audience
StakeholderDescription
Software DevelopersBy following the SEI CERT C Coding Standard, developers will be able to fully or partially prevent the weaknesses that are identified in this view. In addition, developers can use a CWE coverage graph to determine which weaknesses are not directly addressed by the standard, which will help identify and resolve remaining gaps in training, tool acquisition, or other approaches for reducing weaknesses.
Software CustomersIf a software developer claims to be following the SEI CERT C Coding standard, then customers can search for the weaknesses in this view in order to formulate independent evidence of that claim.
EducatorsEducators can use this view in multiple ways. For example, if there is a focus on teaching weaknesses, the educator could link them to the relevant Secure Coding Standard.
+ Relationships
The following graph shows the tree-like relationships between weaknesses that exist at different levels of abstraction. At the highest level, categories and classes exist to group weaknesses. A category is a CWE entry that contains a set of other entries that share a common characteristic. Classes are weaknesses that are described in a very abstract fashion, typically independent of any specific language or technology and are more general than a base weakness. Within classes, base level weaknesses are used to present a more specific type of weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. A variant is a weakness that is described at a very low level of detail, typically limited to a specific language or technology. A chain is a set of weaknesses that must be reachable consecutively in order to produce an exploitable vulnerability. A composite is a set of weaknesses that must all be present simultaneously in order to produce an exploitable vulnerability.
Show Details:
1154 - Weaknesses Addressed by the SEI CERT C Coding Standard
*CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 01. Preprocessor (PRE) - (1155)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1155 (SEI CERT C Coding Standard - Guidelines 01. Preprocessor (PRE))
Weaknesses in this category are related to the rules and recommendations in the Preprocessor (PRE) section of the SEI CERT C Coding Standard.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 02. Declarations and Initialization (DCL) - (1156)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1156 (SEI CERT C Coding Standard - Guidelines 02. Declarations and Initialization (DCL))
Weaknesses in this category are related to the rules and recommendations in the Declarations and Initialization (DCL) section of the SEI CERT C Coding Standard.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Return of Stack Variable Address - (562)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1156 (SEI CERT C Coding Standard - Guidelines 02. Declarations and Initialization (DCL)) > 562 (Return of Stack Variable Address)
A function returns the address of a stack variable, which will cause unintended program behavior, typically in the form of a crash.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP) - (1157)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1157 (SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP))
Weaknesses in this category are related to the rules and recommendations in the Expressions (EXP) section of the SEI CERT C Coding Standard.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Reliance on Undefined, Unspecified, or Implementation-Defined Behavior - (758)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1157 (SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)) > 758 (Reliance on Undefined, Unspecified, or Implementation-Defined Behavior)
The software uses an API function, data structure, or other entity in a way that relies on properties that are not always guaranteed to hold for that entity.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Use of Uninitialized Resource - (908)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1157 (SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)) > 908 (Use of Uninitialized Resource)
The software uses a resource that has not been properly initialized.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.NULL Pointer Dereference - (476)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1157 (SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)) > 476 (NULL Pointer Dereference)
A NULL pointer dereference occurs when the application dereferences a pointer that it expects to be valid, but is NULL, typically causing a crash or exit.
*ChainChain - a Compound Element that is a sequence of two or more separate weaknesses that can be closely linked together within software. One weakness, X, can directly create the conditions that are necessary to cause another weakness, Y, to enter a vulnerable condition. When this happens, CWE refers to X as "primary" to Y, and Y is "resultant" from X. Chains can involve more than two weaknesses, and in some cases, they might have a tree-like structure.Unchecked Return Value to NULL Pointer Dereference - (690)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1157 (SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)) > 690 (Unchecked Return Value to NULL Pointer Dereference)
The product does not check for an error after calling a function that can return with a NULL pointer if the function fails, which leads to a resultant NULL pointer dereference.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Function Call with Incorrectly Specified Arguments - (628)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1157 (SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)) > 628 (Function Call with Incorrectly Specified Arguments)
The product calls a function, procedure, or routine with arguments that are not correctly specified, leading to always-incorrect behavior and resultant weaknesses.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Function Call With Incorrect Number of Arguments - (685)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1157 (SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)) > 685 (Function Call With Incorrect Number of Arguments)
The software calls a function, procedure, or routine, but the caller specifies too many arguments, or too few arguments, which may lead to undefined behavior and resultant weaknesses.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Function Call With Incorrect Argument Type - (686)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1157 (SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)) > 686 (Function Call With Incorrect Argument Type)
The software calls a function, procedure, or routine, but the caller specifies an argument that is the wrong data type, which may lead to resultant weaknesses.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Access of Resource Using Incompatible Type ('Type Confusion') - (843)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1157 (SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)) > 843 (Access of Resource Using Incompatible Type ('Type Confusion'))
The program allocates or initializes a resource such as a pointer, object, or variable using one type, but it later accesses that resource using a type that is incompatible with the original type.Object Type Confusion
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Incorrect Type Conversion or Cast - (704)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1157 (SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)) > 704 (Incorrect Type Conversion or Cast)
The software does not correctly convert an object, resource, or structure from one type to a different type.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Improper Restriction of Operations within the Bounds of a Memory Buffer - (119)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1157 (SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)) > 119 (Improper Restriction of Operations within the Bounds of a Memory Buffer)
The software performs operations on a memory buffer, but it can read from or write to a memory location that is outside of the intended boundary of the buffer.Memory Corruption
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Out-of-bounds Read - (125)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1157 (SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)) > 125 (Out-of-bounds Read)
The software reads data past the end, or before the beginning, of the intended buffer.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Use of Incorrect Operator - (480)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1157 (SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)) > 480 (Use of Incorrect Operator)
The programmer accidentally uses the wrong operator, which changes the application logic in security-relevant ways.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Assigning instead of Comparing - (481)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1157 (SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)) > 481 (Assigning instead of Comparing)
The code uses an operator for assignment when the intention was to perform a comparison.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 04. Integers (INT) - (1158)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT))
Weaknesses in this category are related to the rules and recommendations in the Integers (INT) section of the SEI CERT C Coding Standard.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Integer Overflow or Wraparound - (190)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT)) > 190 (Integer Overflow or Wraparound)
The software performs a calculation that can produce an integer overflow or wraparound, when the logic assumes that the resulting value will always be larger than the original value. This can introduce other weaknesses when the calculation is used for resource management or execution control.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Incorrect Calculation of Buffer Size - (131)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT)) > 131 (Incorrect Calculation of Buffer Size)
The software does not correctly calculate the size to be used when allocating a buffer, which could lead to a buffer overflow.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Integer Underflow (Wrap or Wraparound) - (191)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT)) > 191 (Integer Underflow (Wrap or Wraparound))
The product subtracts one value from another, such that the result is less than the minimum allowable integer value, which produces a value that is not equal to the correct result.Integer underflow
*ChainChain - a Compound Element that is a sequence of two or more separate weaknesses that can be closely linked together within software. One weakness, X, can directly create the conditions that are necessary to cause another weakness, Y, to enter a vulnerable condition. When this happens, CWE refers to X as "primary" to Y, and Y is "resultant" from X. Chains can involve more than two weaknesses, and in some cases, they might have a tree-like structure.Integer Overflow to Buffer Overflow - (680)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT)) > 680 (Integer Overflow to Buffer Overflow)
The product performs a calculation to determine how much memory to allocate, but an integer overflow can occur that causes less memory to be allocated than expected, leading to a buffer overflow.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Integer Coercion Error - (192)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT)) > 192 (Integer Coercion Error)
Integer coercion refers to a set of flaws pertaining to the type casting, extension, or truncation of primitive data types.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Numeric Truncation Error - (197)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT)) > 197 (Numeric Truncation Error)
Truncation errors occur when a primitive is cast to a primitive of a smaller size and data is lost in the conversion.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Incorrect Conversion between Numeric Types - (681)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT)) > 681 (Incorrect Conversion between Numeric Types)
When converting from one data type to another, such as long to integer, data can be omitted or translated in a way that produces unexpected values. If the resulting values are used in a sensitive context, then dangerous behaviors may occur.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Incorrect Type Conversion or Cast - (704)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT)) > 704 (Incorrect Type Conversion or Cast)
The software does not correctly convert an object, resource, or structure from one type to a different type.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Unexpected Sign Extension - (194)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT)) > 194 (Unexpected Sign Extension)
The software performs an operation on a number that causes it to be sign extended when it is transformed into a larger data type. When the original number is negative, this can produce unexpected values that lead to resultant weaknesses.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Signed to Unsigned Conversion Error - (195)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT)) > 195 (Signed to Unsigned Conversion Error)
The software uses a signed primitive and performs a cast to an unsigned primitive, which can produce an unexpected value if the value of the signed primitive can not be represented using an unsigned primitive.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Divide By Zero - (369)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT)) > 369 (Divide By Zero)
The product divides a value by zero.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Incorrect Calculation - (682)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT)) > 682 (Incorrect Calculation)
The software performs a calculation that generates incorrect or unintended results that are later used in security-critical decisions or resource management.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Reliance on Undefined, Unspecified, or Implementation-Defined Behavior - (758)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT)) > 758 (Reliance on Undefined, Unspecified, or Implementation-Defined Behavior)
The software uses an API function, data structure, or other entity in a way that relies on properties that are not always guaranteed to hold for that entity.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Assignment of a Fixed Address to a Pointer - (587)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1158 (SEI CERT C Coding Standard - Guidelines 04. Integers (INT)) > 587 (Assignment of a Fixed Address to a Pointer)
The software sets a pointer to a specific address other than NULL or 0.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 05. Floating Point (FLP) - (1159)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1159 (SEI CERT C Coding Standard - Guidelines 05. Floating Point (FLP))
Weaknesses in this category are related to the rules and recommendations in the Floating Point (FLP) section of the SEI CERT C Coding Standard.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Incorrect Calculation - (682)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1159 (SEI CERT C Coding Standard - Guidelines 05. Floating Point (FLP)) > 682 (Incorrect Calculation)
The software performs a calculation that generates incorrect or unintended results that are later used in security-critical decisions or resource management.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Unchecked Error Condition - (391)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1159 (SEI CERT C Coding Standard - Guidelines 05. Floating Point (FLP)) > 391 (Unchecked Error Condition)
Ignoring exceptions and other error conditions may allow an attacker to induce unexpected behavior unnoticed.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Incorrect Conversion between Numeric Types - (681)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1159 (SEI CERT C Coding Standard - Guidelines 05. Floating Point (FLP)) > 681 (Incorrect Conversion between Numeric Types)
When converting from one data type to another, such as long to integer, data can be omitted or translated in a way that produces unexpected values. If the resulting values are used in a sensitive context, then dangerous behaviors may occur.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Numeric Truncation Error - (197)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1159 (SEI CERT C Coding Standard - Guidelines 05. Floating Point (FLP)) > 197 (Numeric Truncation Error)
Truncation errors occur when a primitive is cast to a primitive of a smaller size and data is lost in the conversion.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 06. Arrays (ARR) - (1160)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1160 (SEI CERT C Coding Standard - Guidelines 06. Arrays (ARR))
Weaknesses in this category are related to the rules and recommendations in the Arrays (ARR) section of the SEI CERT C Coding Standard.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Improper Restriction of Operations within the Bounds of a Memory Buffer - (119)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1160 (SEI CERT C Coding Standard - Guidelines 06. Arrays (ARR)) > 119 (Improper Restriction of Operations within the Bounds of a Memory Buffer)
The software performs operations on a memory buffer, but it can read from or write to a memory location that is outside of the intended boundary of the buffer.Memory Corruption
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Improper Validation of Array Index - (129)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1160 (SEI CERT C Coding Standard - Guidelines 06. Arrays (ARR)) > 129 (Improper Validation of Array Index)
The product uses untrusted input when calculating or using an array index, but the product does not validate or incorrectly validates the index to ensure the index references a valid position within the array.out-of-bounds array indexindex-out-of-rangearray index underflow
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Access of Memory Location Before Start of Buffer - (786)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1160 (SEI CERT C Coding Standard - Guidelines 06. Arrays (ARR)) > 786 (Access of Memory Location Before Start of Buffer)
The software reads or writes to a buffer using an index or pointer that references a memory location prior to the beginning of the buffer.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Write-what-where Condition - (123)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1160 (SEI CERT C Coding Standard - Guidelines 06. Arrays (ARR)) > 123 (Write-what-where Condition)
Any condition where the attacker has the ability to write an arbitrary value to an arbitrary location, often as the result of a buffer overflow.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Out-of-bounds Read - (125)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1160 (SEI CERT C Coding Standard - Guidelines 06. Arrays (ARR)) > 125 (Out-of-bounds Read)
The software reads data past the end, or before the beginning, of the intended buffer.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Reliance on Undefined, Unspecified, or Implementation-Defined Behavior - (758)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1160 (SEI CERT C Coding Standard - Guidelines 06. Arrays (ARR)) > 758 (Reliance on Undefined, Unspecified, or Implementation-Defined Behavior)

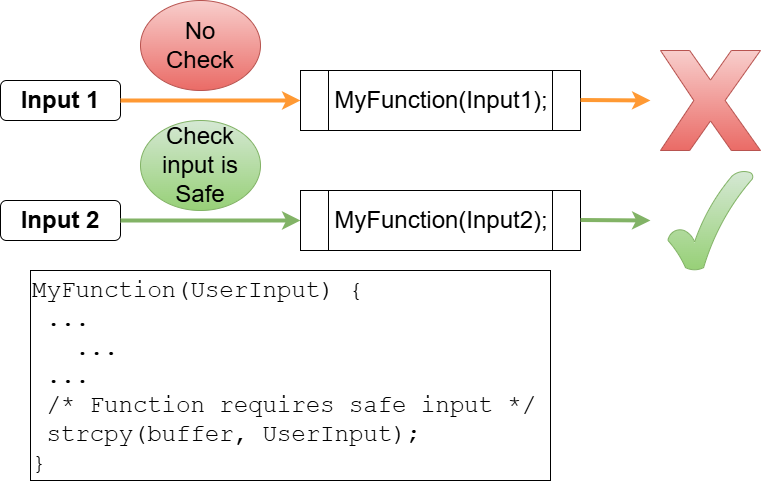

The software uses an API function, data structure, or other entity in a way that relies on properties that are not always guaranteed to hold for that entity.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Use of Pointer Subtraction to Determine Size - (469)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1160 (SEI CERT C Coding Standard - Guidelines 06. Arrays (ARR)) > 469 (Use of Pointer Subtraction to Determine Size)
The application subtracts one pointer from another in order to determine size, but this calculation can be incorrect if the pointers do not exist in the same memory chunk.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Stack-based Buffer Overflow - (121)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1160 (SEI CERT C Coding Standard - Guidelines 06. Arrays (ARR)) > 121 (Stack-based Buffer Overflow)

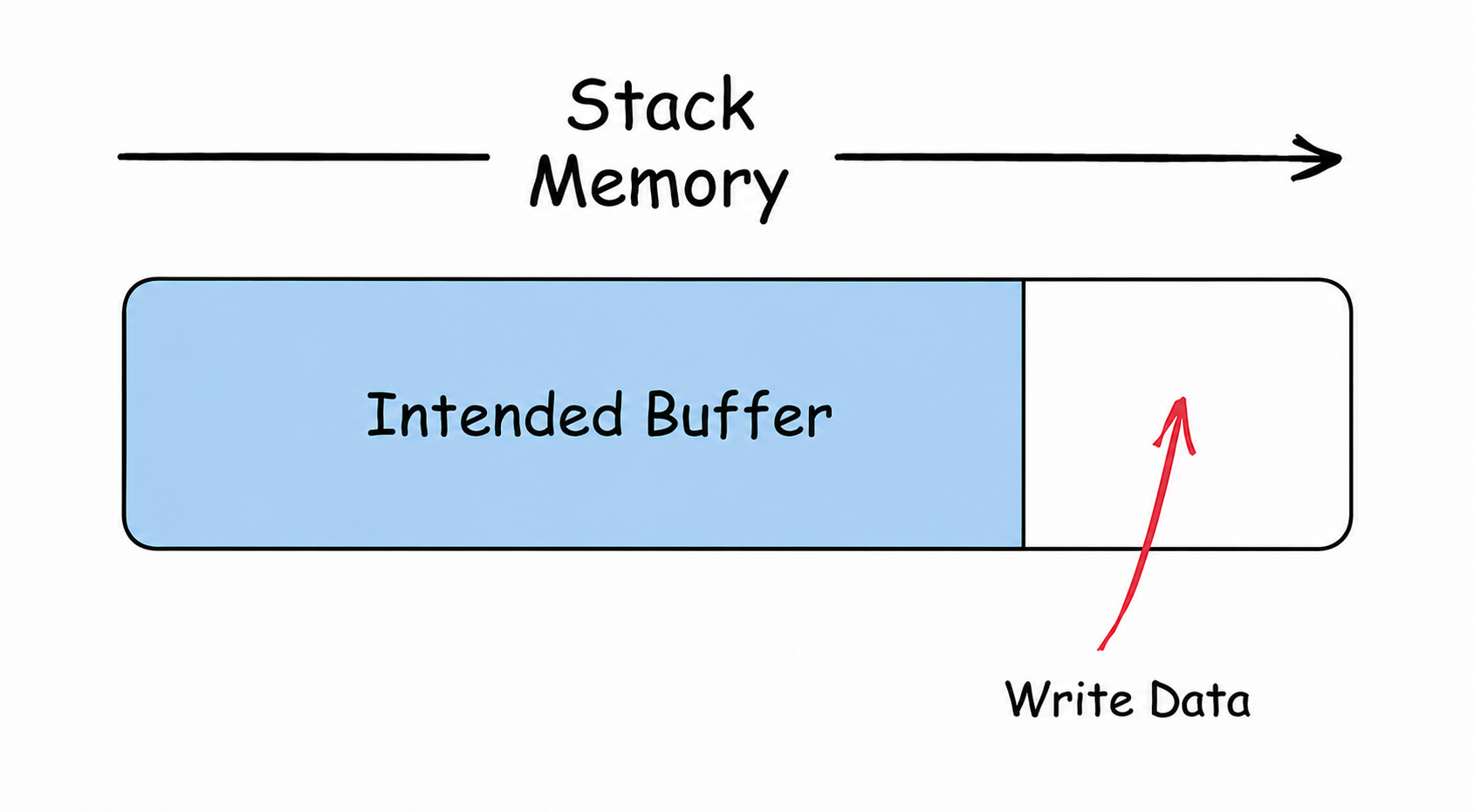

A stack-based buffer overflow condition is a condition where the buffer being overwritten is allocated on the stack (i.e., is a local variable or, rarely, a parameter to a function).Stack Overflow
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Buffer Access with Incorrect Length Value - (805)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1160 (SEI CERT C Coding Standard - Guidelines 06. Arrays (ARR)) > 805 (Buffer Access with Incorrect Length Value)
The software uses a sequential operation to read or write a buffer, but it uses an incorrect length value that causes it to access memory that is outside of the bounds of the buffer.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Incorrect Pointer Scaling - (468)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1160 (SEI CERT C Coding Standard - Guidelines 06. Arrays (ARR)) > 468 (Incorrect Pointer Scaling)
In C and C++, one may often accidentally refer to the wrong memory due to the semantics of when math operations are implicitly scaled.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 07. Characters and Strings (STR) - (1161)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1161 (SEI CERT C Coding Standard - Guidelines 07. Characters and Strings (STR))
Weaknesses in this category are related to the rules and recommendations in the Characters and Strings (STR) section of the SEI CERT C Coding Standard.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Buffer Copy without Checking Size of Input ('Classic Buffer Overflow') - (120)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1161 (SEI CERT C Coding Standard - Guidelines 07. Characters and Strings (STR)) > 120 (Buffer Copy without Checking Size of Input ('Classic Buffer Overflow'))
The program copies an input buffer to an output buffer without verifying that the size of the input buffer is less than the size of the output buffer, leading to a buffer overflow.buffer overrunUnbounded Transfer
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Improper Restriction of Operations within the Bounds of a Memory Buffer - (119)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1161 (SEI CERT C Coding Standard - Guidelines 07. Characters and Strings (STR)) > 119 (Improper Restriction of Operations within the Bounds of a Memory Buffer)
The software performs operations on a memory buffer, but it can read from or write to a memory location that is outside of the intended boundary of the buffer.Memory Corruption
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Stack-based Buffer Overflow - (121)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1161 (SEI CERT C Coding Standard - Guidelines 07. Characters and Strings (STR)) > 121 (Stack-based Buffer Overflow)
A stack-based buffer overflow condition is a condition where the buffer being overwritten is allocated on the stack (i.e., is a local variable or, rarely, a parameter to a function).Stack Overflow
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Heap-based Buffer Overflow - (122)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1161 (SEI CERT C Coding Standard - Guidelines 07. Characters and Strings (STR)) > 122 (Heap-based Buffer Overflow)

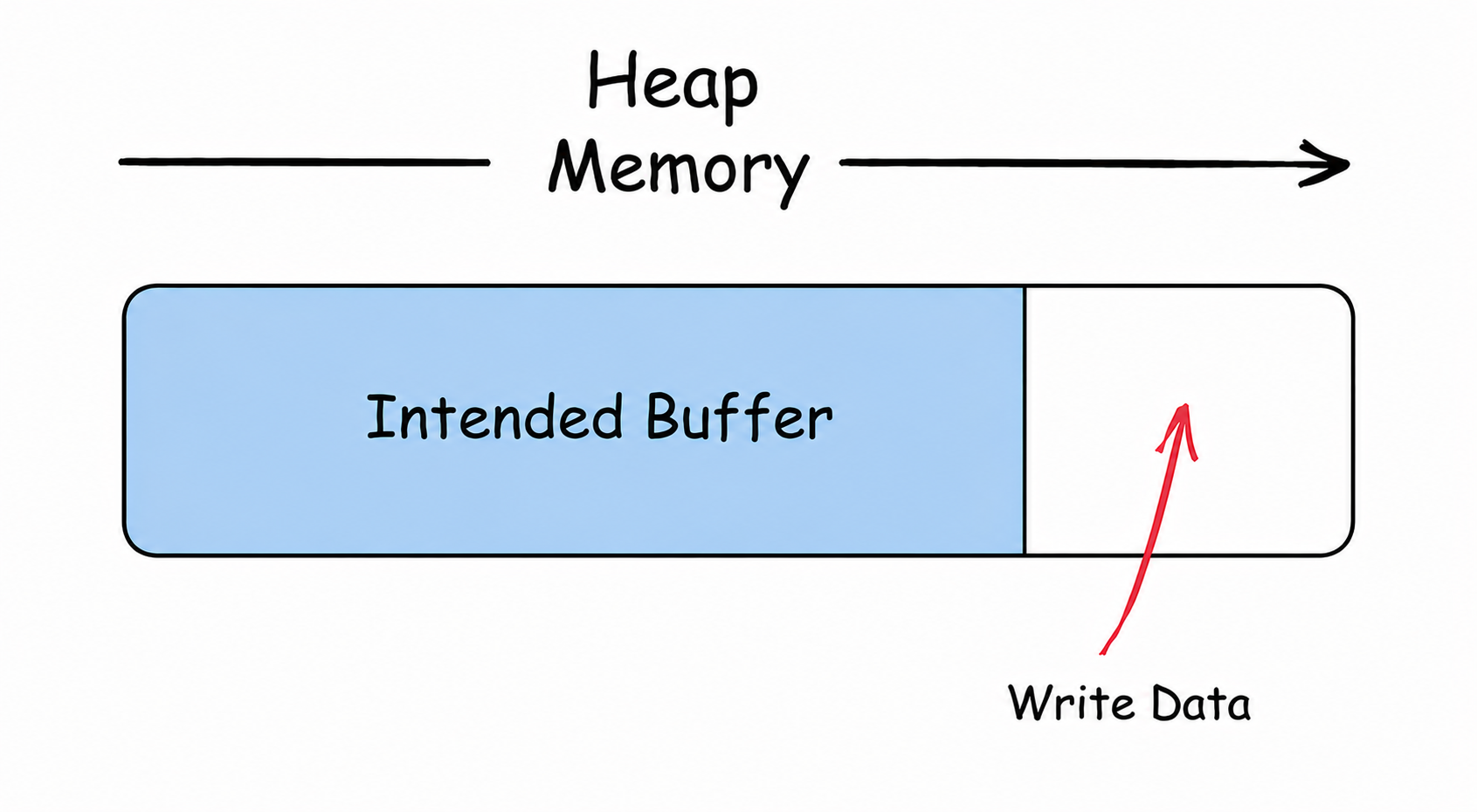

A heap overflow condition is a buffer overflow, where the buffer that can be overwritten is allocated in the heap portion of memory, generally meaning that the buffer was allocated using a routine such as malloc().
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Write-what-where Condition - (123)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1161 (SEI CERT C Coding Standard - Guidelines 07. Characters and Strings (STR)) > 123 (Write-what-where Condition)
Any condition where the attacker has the ability to write an arbitrary value to an arbitrary location, often as the result of a buffer overflow.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Out-of-bounds Read - (125)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1161 (SEI CERT C Coding Standard - Guidelines 07. Characters and Strings (STR)) > 125 (Out-of-bounds Read)
The software reads data past the end, or before the beginning, of the intended buffer.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Use of Potentially Dangerous Function - (676)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1161 (SEI CERT C Coding Standard - Guidelines 07. Characters and Strings (STR)) > 676 (Use of Potentially Dangerous Function)

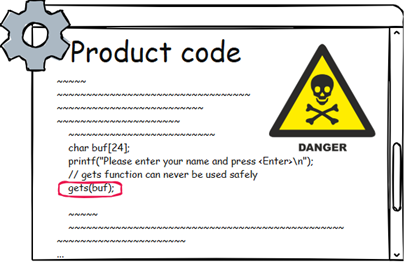

The program invokes a potentially dangerous function that could introduce a vulnerability if it is used incorrectly, but the function can also be used safely.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Improper Null Termination - (170)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1161 (SEI CERT C Coding Standard - Guidelines 07. Characters and Strings (STR)) > 170 (Improper Null Termination)
The software does not terminate or incorrectly terminates a string or array with a null character or equivalent terminator.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Incorrect Type Conversion or Cast - (704)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1161 (SEI CERT C Coding Standard - Guidelines 07. Characters and Strings (STR)) > 704 (Incorrect Type Conversion or Cast)
The software does not correctly convert an object, resource, or structure from one type to a different type.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM) - (1162)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM))
Weaknesses in this category are related to the rules and recommendations in the Memory Management (MEM) section of the SEI CERT C Coding Standard.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Use After Free - (416)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 416 (Use After Free)
Referencing memory after it has been freed can cause a program to crash, use unexpected values, or execute code.Dangling pointerUse-After-Free
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Operation on a Resource after Expiration or Release - (672)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 672 (Operation on a Resource after Expiration or Release)
The software uses, accesses, or otherwise operates on a resource after that resource has been expired, released, or revoked.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Reliance on Undefined, Unspecified, or Implementation-Defined Behavior - (758)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 758 (Reliance on Undefined, Unspecified, or Implementation-Defined Behavior)
The software uses an API function, data structure, or other entity in a way that relies on properties that are not always guaranteed to hold for that entity.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Operation on Resource in Wrong Phase of Lifetime - (666)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 666 (Operation on Resource in Wrong Phase of Lifetime)
The software performs an operation on a resource at the wrong phase of the resource's lifecycle, which can lead to unexpected behaviors.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Double Free - (415)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 415 (Double Free)
The product calls free() twice on the same memory address, potentially leading to modification of unexpected memory locations.Double-free
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Improper Release of Memory Before Removing Last Reference - (401)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 401 (Improper Release of Memory Before Removing Last Reference)
The software does not sufficiently track and release allocated memory after it has been used, which slowly consumes remaining memory.Memory Leak
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Improper Resource Shutdown or Release - (404)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 404 (Improper Resource Shutdown or Release)
The program does not release or incorrectly releases a resource before it is made available for re-use.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Incomplete Cleanup - (459)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 459 (Incomplete Cleanup)
The software does not properly "clean up" and remove temporary or supporting resources after they have been used.Insufficient Cleanup
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Missing Reference to Active Allocated Resource - (771)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 771 (Missing Reference to Active Allocated Resource)
The software does not properly maintain a reference to a resource that has been allocated, which prevents the resource from being reclaimed.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Missing Release of Resource after Effective Lifetime - (772)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 772 (Missing Release of Resource after Effective Lifetime)
The software does not release a resource after its effective lifetime has ended, i.e., after the resource is no longer needed.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Free of Memory not on the Heap - (590)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 590 (Free of Memory not on the Heap)
The application calls free() on a pointer to memory that was not allocated using associated heap allocation functions such as malloc(), calloc(), or realloc().
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Incorrect Calculation of Buffer Size - (131)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 131 (Incorrect Calculation of Buffer Size)
The software does not correctly calculate the size to be used when allocating a buffer, which could lead to a buffer overflow.
*ChainChain - a Compound Element that is a sequence of two or more separate weaknesses that can be closely linked together within software. One weakness, X, can directly create the conditions that are necessary to cause another weakness, Y, to enter a vulnerable condition. When this happens, CWE refers to X as "primary" to Y, and Y is "resultant" from X. Chains can involve more than two weaknesses, and in some cases, they might have a tree-like structure.Integer Overflow to Buffer Overflow - (680)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 680 (Integer Overflow to Buffer Overflow)
The product performs a calculation to determine how much memory to allocate, but an integer overflow can occur that causes less memory to be allocated than expected, leading to a buffer overflow.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Use of sizeof() on a Pointer Type - (467)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 467 (Use of sizeof() on a Pointer Type)
The code calls sizeof() on a malloced pointer type, which always returns the wordsize/8. This can produce an unexpected result if the programmer intended to determine how much memory has been allocated.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Uncontrolled Memory Allocation - (789)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 789 (Uncontrolled Memory Allocation)
The product allocates memory based on an untrusted size value, but it does not validate or incorrectly validates the size, allowing arbitrary amounts of memory to be allocated.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Integer Overflow or Wraparound - (190)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1162 (SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)) > 190 (Integer Overflow or Wraparound)
The software performs a calculation that can produce an integer overflow or wraparound, when the logic assumes that the resulting value will always be larger than the original value. This can introduce other weaknesses when the calculation is used for resource management or execution control.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO) - (1163)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO))
Weaknesses in this category are related to the rules and recommendations in the Input Output (FIO) section of the SEI CERT C Coding Standard.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Use of Externally-Controlled Format String - (134)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 134 (Use of Externally-Controlled Format String)
The software uses a function that accepts a format string as an argument, but the format string originates from an external source.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Improper Input Validation - (20)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 20 (Improper Input Validation)
The product does not validate or incorrectly validates input that can affect the control flow or data flow of a program.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Improper Handling of Windows Device Names - (67)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 67 (Improper Handling of Windows Device Names)
The software constructs pathnames from user input, but it does not handle or incorrectly handles a pathname containing a Windows device name such as AUX or CON. This typically leads to denial of service or an information exposure when the application attempts to process the pathname as a regular file.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Numeric Truncation Error - (197)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 197 (Numeric Truncation Error)
Truncation errors occur when a primitive is cast to a primitive of a smaller size and data is lost in the conversion.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Improper Handling of Unexpected Data Type - (241)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 241 (Improper Handling of Unexpected Data Type)
The software does not handle or incorrectly handles when a particular element is not the expected type, e.g. it expects a digit (0-9) but is provided with a letter (A-Z).
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Improper Control of a Resource Through its Lifetime - (664)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 664 (Improper Control of a Resource Through its Lifetime)
The software does not maintain or incorrectly maintains control over a resource throughout its lifetime of creation, use, and release.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Improper Resource Shutdown or Release - (404)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 404 (Improper Resource Shutdown or Release)
The program does not release or incorrectly releases a resource before it is made available for re-use.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Incomplete Cleanup - (459)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 459 (Incomplete Cleanup)
The software does not properly "clean up" and remove temporary or supporting resources after they have been used.Insufficient Cleanup
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Missing Release of Resource after Effective Lifetime - (772)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 772 (Missing Release of Resource after Effective Lifetime)
The software does not release a resource after its effective lifetime has ended, i.e., after the resource is no longer needed.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Missing Reference to Active File Descriptor or Handle - (773)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 773 (Missing Reference to Active File Descriptor or Handle)
The software does not properly maintain references to a file descriptor or handle, which prevents that file descriptor/handle from being reclaimed.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Missing Release of File Descriptor or Handle after Effective Lifetime - (775)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 775 (Missing Release of File Descriptor or Handle after Effective Lifetime)
The software does not release a file descriptor or handle after its effective lifetime has ended, i.e., after the file descriptor/handle is no longer needed.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Missing Reference to Active Allocated Resource - (771)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 771 (Missing Reference to Active Allocated Resource)
The software does not properly maintain a reference to a resource that has been allocated, which prevents the resource from being reclaimed.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Use of Expired File Descriptor - (910)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 910 (Use of Expired File Descriptor)
The software uses or accesses a file descriptor after it has been closed.Stale file descriptor
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Operation on Resource in Wrong Phase of Lifetime - (666)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 666 (Operation on Resource in Wrong Phase of Lifetime)
The software performs an operation on a resource at the wrong phase of the resource's lifecycle, which can lead to unexpected behaviors.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Operation on a Resource after Expiration or Release - (672)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 672 (Operation on a Resource after Expiration or Release)
The software uses, accesses, or otherwise operates on a resource after that resource has been expired, released, or revoked.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Reliance on Undefined, Unspecified, or Implementation-Defined Behavior - (758)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 758 (Reliance on Undefined, Unspecified, or Implementation-Defined Behavior)
The software uses an API function, data structure, or other entity in a way that relies on properties that are not always guaranteed to hold for that entity.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Function Call With Incorrect Argument Type - (686)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 686 (Function Call With Incorrect Argument Type)
The software calls a function, procedure, or routine, but the caller specifies an argument that is the wrong data type, which may lead to resultant weaknesses.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Function Call With Incorrect Number of Arguments - (685)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1163 (SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)) > 685 (Function Call With Incorrect Number of Arguments)
The software calls a function, procedure, or routine, but the caller specifies too many arguments, or too few arguments, which may lead to undefined behavior and resultant weaknesses.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 10. Environment (ENV) - (1165)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1165 (SEI CERT C Coding Standard - Guidelines 10. Environment (ENV))
Weaknesses in this category are related to the rules and recommendations in the Environment (ENV) section of the SEI CERT C Coding Standard.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Incorrect Control Flow Scoping - (705)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1165 (SEI CERT C Coding Standard - Guidelines 10. Environment (ENV)) > 705 (Incorrect Control Flow Scoping)
The software does not properly return control flow to the proper location after it has completed a task or detected an unusual condition.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Use of Potentially Dangerous Function - (676)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1165 (SEI CERT C Coding Standard - Guidelines 10. Environment (ENV)) > 676 (Use of Potentially Dangerous Function)
The program invokes a potentially dangerous function that could introduce a vulnerability if it is used incorrectly, but the function can also be used safely.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Improper Neutralization of Special Elements used in an OS Command ('OS Command Injection') - (78)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1165 (SEI CERT C Coding Standard - Guidelines 10. Environment (ENV)) > 78 (Improper Neutralization of Special Elements used in an OS Command ('OS Command Injection'))
The software constructs all or part of an OS command using externally-influenced input from an upstream component, but it does not neutralize or incorrectly neutralizes special elements that could modify the intended OS command when it is sent to a downstream component.Shell injectionShell metacharacters
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Argument Injection or Modification - (88)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1165 (SEI CERT C Coding Standard - Guidelines 10. Environment (ENV)) > 88 (Argument Injection or Modification)
The software does not sufficiently delimit the arguments being passed to a component in another control sphere, allowing alternate arguments to be provided, leading to potentially security-relevant changes.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 11. Signals (SIG) - (1166)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1166 (SEI CERT C Coding Standard - Guidelines 11. Signals (SIG))
Weaknesses in this category are related to the rules and recommendations in the Signals (SIG) section of the SEI CERT C Coding Standard.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Signal Handler Use of a Non-reentrant Function - (479)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1166 (SEI CERT C Coding Standard - Guidelines 11. Signals (SIG)) > 479 (Signal Handler Use of a Non-reentrant Function)
The program defines a signal handler that calls a non-reentrant function.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Improper Synchronization - (662)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1166 (SEI CERT C Coding Standard - Guidelines 11. Signals (SIG)) > 662 (Improper Synchronization)
The software attempts to use a shared resource in an exclusive manner, but does not prevent or incorrectly prevents use of the resource by another thread or process.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 12. Error Handling (ERR) - (1167)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1167 (SEI CERT C Coding Standard - Guidelines 12. Error Handling (ERR))
Weaknesses in this category are related to the rules and recommendations in the Error Handling (ERR) section of the SEI CERT C Coding Standard.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Missing Initialization of a Variable - (456)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1167 (SEI CERT C Coding Standard - Guidelines 12. Error Handling (ERR)) > 456 (Missing Initialization of a Variable)
The software does not initialize critical variables, which causes the execution environment to use unexpected values.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Unchecked Error Condition - (391)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1167 (SEI CERT C Coding Standard - Guidelines 12. Error Handling (ERR)) > 391 (Unchecked Error Condition)
Ignoring exceptions and other error conditions may allow an attacker to induce unexpected behavior unnoticed.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Unchecked Return Value - (252)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1167 (SEI CERT C Coding Standard - Guidelines 12. Error Handling (ERR)) > 252 (Unchecked Return Value)
The software does not check the return value from a method or function, which can prevent it from detecting unexpected states and conditions.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Incorrect Check of Function Return Value - (253)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1167 (SEI CERT C Coding Standard - Guidelines 12. Error Handling (ERR)) > 253 (Incorrect Check of Function Return Value)
The software incorrectly checks a return value from a function, which prevents the software from detecting errors or exceptional conditions.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Use of Potentially Dangerous Function - (676)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1167 (SEI CERT C Coding Standard - Guidelines 12. Error Handling (ERR)) > 676 (Use of Potentially Dangerous Function)
The program invokes a potentially dangerous function that could introduce a vulnerability if it is used incorrectly, but the function can also be used safely.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Reliance on Undefined, Unspecified, or Implementation-Defined Behavior - (758)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1167 (SEI CERT C Coding Standard - Guidelines 12. Error Handling (ERR)) > 758 (Reliance on Undefined, Unspecified, or Implementation-Defined Behavior)
The software uses an API function, data structure, or other entity in a way that relies on properties that are not always guaranteed to hold for that entity.
*CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 13. Application Programming Interfaces (API) - (1168)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1168 (SEI CERT C Coding Standard - Guidelines 13. Application Programming Interfaces (API))
Weaknesses in this category are related to the rules and recommendations in the Application Programming Interfaces (API) section of the SEI CERT C Coding Standard.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 14. Concurrency (CON) - (1169)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1169 (SEI CERT C Coding Standard - Guidelines 14. Concurrency (CON))
Weaknesses in this category are related to the rules and recommendations in the Concurrency (CON) section of the SEI CERT C Coding Standard.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Improper Locking - (667)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1169 (SEI CERT C Coding Standard - Guidelines 14. Concurrency (CON)) > 667 (Improper Locking)
The software does not properly acquire a lock on a resource, or it does not properly release a lock on a resource, leading to unexpected resource state changes and behaviors.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Race Condition within a Thread - (366)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1169 (SEI CERT C Coding Standard - Guidelines 14. Concurrency (CON)) > 366 (Race Condition within a Thread)
If two threads of execution use a resource simultaneously, there exists the possibility that resources may be used while invalid, in turn making the state of execution undefined.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Use of Potentially Dangerous Function - (676)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1169 (SEI CERT C Coding Standard - Guidelines 14. Concurrency (CON)) > 676 (Use of Potentially Dangerous Function)
The program invokes a potentially dangerous function that could introduce a vulnerability if it is used incorrectly, but the function can also be used safely.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Use of Insufficiently Random Values - (330)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1169 (SEI CERT C Coding Standard - Guidelines 14. Concurrency (CON)) > 330 (Use of Insufficiently Random Values)
The software may use insufficiently random numbers or values in a security context that depends on unpredictable numbers.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Insecure Temporary File - (377)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1169 (SEI CERT C Coding Standard - Guidelines 14. Concurrency (CON)) > 377 (Insecure Temporary File)
Creating and using insecure temporary files can leave application and system data vulnerable to attack.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 48. Miscellaneous (MSC) - (1170)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1170 (SEI CERT C Coding Standard - Guidelines 48. Miscellaneous (MSC))
Weaknesses in this category are related to the rules and recommendations in the Miscellaneous (MSC) section of the SEI CERT C Coding Standard.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Use of a Broken or Risky Cryptographic Algorithm - (327)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1170 (SEI CERT C Coding Standard - Guidelines 48. Miscellaneous (MSC)) > 327 (Use of a Broken or Risky Cryptographic Algorithm)
The use of a broken or risky cryptographic algorithm is an unnecessary risk that may result in the exposure of sensitive information.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Use of Insufficiently Random Values - (330)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1170 (SEI CERT C Coding Standard - Guidelines 48. Miscellaneous (MSC)) > 330 (Use of Insufficiently Random Values)
The software may use insufficiently random numbers or values in a security context that depends on unpredictable numbers.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Use of Cryptographically Weak Pseudo-Random Number Generator (PRNG) - (338)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1170 (SEI CERT C Coding Standard - Guidelines 48. Miscellaneous (MSC)) > 338 (Use of Cryptographically Weak Pseudo-Random Number Generator (PRNG))
The product uses a Pseudo-Random Number Generator (PRNG) in a security context, but the PRNG's algorithm is not cryptographically strong.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Use of Potentially Dangerous Function - (676)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1170 (SEI CERT C Coding Standard - Guidelines 48. Miscellaneous (MSC)) > 676 (Use of Potentially Dangerous Function)
The program invokes a potentially dangerous function that could introduce a vulnerability if it is used incorrectly, but the function can also be used safely.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Insufficient Entropy - (331)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1170 (SEI CERT C Coding Standard - Guidelines 48. Miscellaneous (MSC)) > 331 (Insufficient Entropy)
The software uses an algorithm or scheme that produces insufficient entropy, leaving patterns or clusters of values that are more likely to occur than others.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Reliance on Undefined, Unspecified, or Implementation-Defined Behavior - (758)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1170 (SEI CERT C Coding Standard - Guidelines 48. Miscellaneous (MSC)) > 758 (Reliance on Undefined, Unspecified, or Implementation-Defined Behavior)
The software uses an API function, data structure, or other entity in a way that relies on properties that are not always guaranteed to hold for that entity.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 50. POSIX (POS) - (1171)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1171 (SEI CERT C Coding Standard - Guidelines 50. POSIX (POS))
Weaknesses in this category are related to the rules and recommendations in the POSIX (POS) section of the SEI CERT C Coding Standard.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Improper Null Termination - (170)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1171 (SEI CERT C Coding Standard - Guidelines 50. POSIX (POS)) > 170 (Improper Null Termination)
The software does not terminate or incorrectly terminates a string or array with a null character or equivalent terminator.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Use of Inherently Dangerous Function - (242)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1171 (SEI CERT C Coding Standard - Guidelines 50. POSIX (POS)) > 242 (Use of Inherently Dangerous Function)
The program calls a function that can never be guaranteed to work safely.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Race Condition Enabling Link Following - (363)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1171 (SEI CERT C Coding Standard - Guidelines 50. POSIX (POS)) > 363 (Race Condition Enabling Link Following)
The software checks the status of a file or directory before accessing it, which produces a race condition in which the file can be replaced with a link before the access is performed, causing the software to access the wrong file.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.Incorrect Behavior Order - (696)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1171 (SEI CERT C Coding Standard - Guidelines 50. POSIX (POS)) > 696 (Incorrect Behavior Order)
The software performs multiple related behaviors, but the behaviors are performed in the wrong order in ways which may produce resultant weaknesses.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Improper Check for Dropped Privileges - (273)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1171 (SEI CERT C Coding Standard - Guidelines 50. POSIX (POS)) > 273 (Improper Check for Dropped Privileges)
The software attempts to drop privileges but does not check or incorrectly checks to see if the drop succeeded.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Improper Locking - (667)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1171 (SEI CERT C Coding Standard - Guidelines 50. POSIX (POS)) > 667 (Improper Locking)
The software does not properly acquire a lock on a resource, or it does not properly release a lock on a resource, leading to unexpected resource state changes and behaviors.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Unchecked Error Condition - (391)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1171 (SEI CERT C Coding Standard - Guidelines 50. POSIX (POS)) > 391 (Unchecked Error Condition)
Ignoring exceptions and other error conditions may allow an attacker to induce unexpected behavior unnoticed.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Unchecked Return Value - (252)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1171 (SEI CERT C Coding Standard - Guidelines 50. POSIX (POS)) > 252 (Unchecked Return Value)
The software does not check the return value from a method or function, which can prevent it from detecting unexpected states and conditions.
*BaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.Incorrect Check of Function Return Value - (253)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1171 (SEI CERT C Coding Standard - Guidelines 50. POSIX (POS)) > 253 (Incorrect Check of Function Return Value)
The software incorrectly checks a return value from a function, which prevents the software from detecting errors or exceptional conditions.
+CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.SEI CERT C Coding Standard - Guidelines 51. Microsoft Windows (WIN) - (1172)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1172 (SEI CERT C Coding Standard - Guidelines 51. Microsoft Windows (WIN) )
Weaknesses in this category are related to the rules and recommendations in the Microsoft Windows (WIN) section of the SEI CERT C Coding Standard.
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Mismatched Memory Management Routines - (762)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1172 (SEI CERT C Coding Standard - Guidelines 51. Microsoft Windows (WIN) ) > 762 (Mismatched Memory Management Routines)
The application attempts to return a memory resource to the system, but it calls a release function that is not compatible with the function that was originally used to allocate that resource.
*CategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.7PK - API Abuse - (227)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1172 (SEI CERT C Coding Standard - Guidelines 51. Microsoft Windows (WIN) ) > 227 (7PK - API Abuse)
This category represents one of the phyla in the Seven Pernicious Kingdoms vulnerability classification. It includes weaknesses that involve the software useing an API in a manner contrary to its intended use. According to the authors of the Seven Pernicious Kingdoms, "An API is a contract between a caller and a callee. The most common forms of API misuse occurs when the caller does not honor its end of this contract. For example, if a program does not call chdir() after calling chroot(), it violates the contract that specifies how to change the active root directory in a secure fashion. Another good example of library abuse is expecting the callee to return trustworthy DNS information to the caller. In this case, the caller misuses the callee API by making certain assumptions about its behavior (that the return value can be used for authentication purposes). One can also violate the caller-callee contract from the other side. For example, if a coder subclasses SecureRandom and returns a non-random value, the contract is violated."
*VariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.Free of Memory not on the Heap - (590)
1154 (Weaknesses Addressed by the SEI CERT C Coding Standard) > 1172 (SEI CERT C Coding Standard - Guidelines 51. Microsoft Windows (WIN) ) > 590 (Free of Memory not on the Heap)
The application calls free() on a pointer to memory that was not allocated using associated heap allocation functions such as malloc(), calloc(), or realloc().
+ Notes

Relationship

The relationships in this view were determined based on specific statements within the rules from the standard. Not all rules have direct relationships to individual weaknesses, although they likely have chaining relationships in specific circumstances.
+ References
[REF-598] The Software Engineering Institute. "SEI CERT C Coding Standard". <https://wiki.sei.cmu.edu/confluence/display/c/SEI+CERT+C+Coding+Standard>.
+ View Metrics
CWEs in this viewTotal CWEs
Weaknesses78out of 806
Categories18out of 289
Views0out of 36
Total96out of1131
+ Content History
Submissions
Submission DateSubmitterOrganization
2018-12-18CWE Content TeamMITRE

View Components

A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z

CWE-786: Access of Memory Location Before Start of Buffer

Weakness ID: 786
Abstraction: Base
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
The software reads or writes to a buffer using an index or pointer that references a memory location prior to the beginning of the buffer.
+ Extended Description
This typically occurs when a pointer or its index is decremented to a position before the buffer, when pointer arithmetic results in a position before the beginning of the valid memory location, or when a negative index is used.
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.119Improper Restriction of Operations within the Bounds of a Memory Buffer
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.124Buffer Underwrite ('Buffer Underflow')
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.127Buffer Under-read
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.119Improper Restriction of Operations within the Bounds of a Memory Buffer
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.124Buffer Underwrite ('Buffer Underflow')
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.127Buffer Under-read
+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Confidentiality

Technical Impact: Read Memory

For an out-of-bounds read, the attacker may have access to sensitive information. If the sensitive information contains system details, such as the current buffers position in memory, this knowledge can be used to craft further attacks, possibly with more severe consequences.
Integrity
Availability

Technical Impact: Modify Memory; DoS: Crash, Exit, or Restart

Out of bounds memory access will very likely result in the corruption of relevant memory, and perhaps instructions, possibly leading to a crash.
Integrity

Technical Impact: Modify Memory; Execute Unauthorized Code or Commands

If the corrupted memory can be effectively controlled, it may be possible to execute arbitrary code. If the corrupted memory is data rather than instructions, the system will continue to function with improper changes, possibly in violation of an implicit or explicit policy.
+ Demonstrative Examples

Example 1

In the following C/C++ example, a utility function is used to trim trailing whitespace from a character string. The function copies the input string to a local character string and uses a while statement to remove the trailing whitespace by moving backward through the string and overwriting whitespace with a NUL character.

(bad code)
Example Language:
char* trimTrailingWhitespace(char *strMessage, int length) {
char *retMessage;
char *message = malloc(sizeof(char)*(length+1));

// copy input string to a temporary string
char message[length+1];
int index;
for (index = 0; index < length; index++) {
message[index] = strMessage[index];
}
message[index] = '\0';

// trim trailing whitespace
int len = index-1;
while (isspace(message[len])) {
message[len] = '\0';
len--;
}

// return string without trailing whitespace
retMessage = message;
return retMessage;
}

However, this function can cause a buffer underwrite if the input character string contains all whitespace. On some systems the while statement will move backwards past the beginning of a character string and will call the isspace() function on an address outside of the bounds of the local buffer.

Example 2

The following example asks a user for an offset into an array to select an item.

(bad code)
Example Language:

int main (int argc, char **argv) {
char *items[] = {"boat", "car", "truck", "train"};
int index = GetUntrustedOffset();
printf("You selected %s\n", items[index-1]);
}

The programmer allows the user to specify which element in the list to select, however an attacker can provide an out-of-bounds offset, resulting in a buffer over-read (CWE-126).

Example 3

The following is an example of code that may result in a buffer underwrite, if find() returns a negative value to indicate that ch is not found in srcBuf:

(bad code)
Example Language:
int main() {
...
strncpy(destBuf, &srcBuf[find(srcBuf, ch)], 1024);
...
}

If the index to srcBuf is somehow under user control, this is an arbitrary write-what-where condition.

+ Observed Examples
ReferenceDescription
Unchecked length of SSLv2 challenge value leads to buffer underflow.
Buffer underflow from a small size value with a large buffer (length parameter inconsistency, CWE-130)
Buffer underflow from an all-whitespace string, which causes a counter to be decremented before the buffer while looking for a non-whitespace character.
Buffer underflow resultant from encoded data that triggers an integer overflow.
Product sets an incorrect buffer size limit, leading to "off-by-two" buffer underflow.
Negative value is used in a memcpy() operation, leading to buffer underflow.
Buffer underflow due to mishandled special characters
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1160SEI CERT C Coding Standard - Guidelines 06. Arrays (ARR)
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CERT C Secure CodingARR30-CCWE More SpecificDo not form or use out-of-bounds pointers or array subscripts
+ Content History
Submissions
Submission DateSubmitterOrganization
2009-10-21CWE Content TeamMITRE
Modifications
Modification DateModifierOrganization
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2012-05-11CWE Content TeamMITRE
updated Common_Consequences, Demonstrative_Examples, Observed_Examples, Relationships
2017-11-08CWE Content TeamMITRE
updated Common_Consequences, Demonstrative_Examples, Taxonomy_Mappings
2019-01-03CWE Content TeamMITRE
updated Relationships

CWE-843: Access of Resource Using Incompatible Type ('Type Confusion')

Weakness ID: 843
Abstraction: Base
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
The program allocates or initializes a resource such as a pointer, object, or variable using one type, but it later accesses that resource using a type that is incompatible with the original type.
+ Extended Description

When the program accesses the resource using an incompatible type, this could trigger logical errors because the resource does not have expected properties. In languages without memory safety, such as C and C++, type confusion can lead to out-of-bounds memory access.

While this weakness is frequently associated with unions when parsing data with many different embedded object types in C, it can be present in any application that can interpret the same variable or memory location in multiple ways.

This weakness is not unique to C and C++. For example, errors in PHP applications can be triggered by providing array parameters when scalars are expected, or vice versa. Languages such as Perl, which perform automatic conversion of a variable of one type when it is accessed as if it were another type, can also contain these issues.

+ Alternate Terms
Object Type Confusion
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.704Incorrect Type Conversion or Cast
CanPrecedeClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.119Improper Restriction of Operations within the Bounds of a Memory Buffer
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.704Incorrect Type Conversion or Cast
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Implementation
+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

C (Undetermined Prevalence)

C++ (Undetermined Prevalence)

+ Demonstrative Examples

Example 1

The following code uses a union to support the representation of different types of messages. It formats messages differently, depending on their type.

(bad code)
Example Language:
#define NAME_TYPE 1
#define ID_TYPE 2

struct MessageBuffer
{
int msgType;
union {
char *name;
int nameID;
};
};


int main (int argc, char **argv) {
struct MessageBuffer buf;
char *defaultMessage = "Hello World";

buf.msgType = NAME_TYPE;
buf.name = defaultMessage;
printf("Pointer of buf.name is %p\n", buf.name);
/* This particular value for nameID is used to make the code architecture-independent. If coming from untrusted input, it could be any value. */

buf.nameID = (int)(defaultMessage + 1);
printf("Pointer of buf.name is now %p\n", buf.name);
if (buf.msgType == NAME_TYPE) {
printf("Message: %s\n", buf.name);
}
else {
printf("Message: Use ID %d\n", buf.nameID);
}
}

The code intends to process the message as a NAME_TYPE, and sets the default message to "Hello World." However, since both buf.name and buf.nameID are part of the same union, they can act as aliases for the same memory location, depending on memory layout after compilation.

As a result, modification of buf.nameID - an int - can effectively modify the pointer that is stored in buf.name - a string.

Execution of the program might generate output such as:

Pointer of name is 10830
Pointer of name is now 10831
Message: ello World

Notice how the pointer for buf.name was changed, even though buf.name was not explicitly modified.

In this case, the first "H" character of the message is omitted. However, if an attacker is able to fully control the value of buf.nameID, then buf.name could contain an arbitrary pointer, leading to out-of-bounds reads or writes.

Example 2

The following PHP code accepts a value, adds 5, and prints the sum.

(bad code)
Example Language: PHP
$value = $_GET['value'];
$sum = $value + 5;
echo "value parameter is '$value'<p>";
echo "SUM is $sum";

When called with the following query string:

value=123

the program calculates the sum and prints out:

SUM is 128

However, the attacker could supply a query string such as:

value[]=123

The "[]" array syntax causes $value to be treated as an array type, which then generates a fatal error when calculating $sum:

Fatal error: Unsupported operand types in program.php on line 2

Example 3

The following Perl code is intended to look up the privileges for user ID's between 0 and 3, by performing an access of the $UserPrivilegeArray reference. It is expected that only userID 3 is an admin (since this is listed in the third element of the array).

(bad code)
Example Language: Perl
my $UserPrivilegeArray = ["user", "user", "admin", "user"];

my $userID = get_current_user_ID();

if ($UserPrivilegeArray eq "user") {
print "Regular user!\n";
}
else {
print "Admin!\n";
}

print "\$UserPrivilegeArray = $UserPrivilegeArray\n";

In this case, the programmer intended to use "$UserPrivilegeArray->{$userID}" to access the proper position in the array. But because the subscript was omitted, the "user" string was compared to the scalar representation of the $UserPrivilegeArray reference, which might be of the form "ARRAY(0x229e8)" or similar.

Since the logic also "fails open" (CWE-636), the result of this bug is that all users are assigned administrator privileges.

While this is a forced example, it demonstrates how type confusion can have security consequences, even in memory-safe languages.

+ Observed Examples
ReferenceDescription
Type confusion in CSS sequence leads to out-of-bounds read.
Size inconsistency allows code execution, first discovered when it was actively exploited in-the-wild.
Improperly-parsed file containing records of different types leads to code execution when a memory location is interpreted as a different object than intended.
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1157SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)
+ Notes

Applicable Platform

This weakness is possible in any type-unsafe programming language.

Research Gap

Type confusion weaknesses have received some attention by applied researchers and major software vendors for C and C++ code. Some publicly-reported vulnerabilities probably have type confusion as a root-cause weakness, but these may be described as "memory corruption" instead. This weakness seems likely to gain prominence in upcoming years.

For other languages, there are very few public reports of type confusion weaknesses. These are probably under-studied. Since many programs rely directly or indirectly on loose typing, a potential "type confusion" behavior might be intentional, possibly requiring more manual analysis.

+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CERT C Secure CodingEXP39-CExactDo not access a variable through a pointer of an incompatible type
+ References
[REF-811] Mark Dowd, Ryan Smith and David Dewey. "Attacking Interoperability". "Type Confusion Vulnerabilities," page 59. 2009. <http://www.azimuthsecurity.com/resources/bh2009_dowd_smith_dewey.pdf>.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 7, "Type Confusion", Page 319. 1st Edition. Addison Wesley. 2006.
+ Content History
Submissions
Submission DateSubmitterOrganization
2011-05-15CWE Content TeamMITRE
Modifications
Modification DateModifierOrganization
2012-05-11CWE Content TeamMITRE
updated References
2017-11-08CWE Content TeamMITRE
updated Applicable_Platforms, Taxonomy_Mappings
2019-01-03CWE Content TeamMITRE
updated Relationships

CWE-88: Argument Injection or Modification

Weakness ID: 88
Abstraction: Base
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The software does not sufficiently delimit the arguments being passed to a component in another control sphere, allowing alternate arguments to be provided, leading to potentially security-relevant changes.
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.77Improper Neutralization of Special Elements used in a Command ('Command Injection')
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.77Improper Neutralization of Special Elements used in a Command ('Command Injection')
+ Relevant to the view "Architectural Concepts" (CWE-1008)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1019Validate Inputs
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.77Improper Neutralization of Special Elements used in a Command ('Command Injection')
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Architecture and Design
ImplementationREALIZATION: This weakness is caused during implementation of an architectural security tactic.
+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Language-Independent (Undetermined Prevalence)

+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Confidentiality
Integrity
Availability
Other

Technical Impact: Execute Unauthorized Code or Commands; Alter Execution Logic; Read Application Data; Modify Application Data

An attacker could include arguments that allow unintended commands or code to be executed, allow sensitive data to be read or modified or could cause other unintended behavior.
+ Demonstrative Examples

Example 1

The following simple program accepts a filename as a command line argument and displays the contents of the file back to the user. The program is installed setuid root because it is intended for use as a learning tool to allow system administrators in-training to inspect privileged system files without giving them the ability to modify them or damage the system.

(bad code)
Example Language:
int main(int argc, char** argv) {
char cmd[CMD_MAX] = "/usr/bin/cat ";
strcat(cmd, argv[1]);
system(cmd);
}

Because the program runs with root privileges, the call to system() also executes with root privileges. If a user specifies a standard filename, the call works as expected. However, if an attacker passes a string of the form ";rm -rf /", then the call to system() fails to execute cat due to a lack of arguments and then plows on to recursively delete the contents of the root partition.

Note that if argv[1] is a very long argument, then this issue might also be subject to a buffer overflow (CWE-120).

+ Observed Examples
ReferenceDescription
Canonical Example
Web browser executes Telnet sessions using command line arguments that are specified by the web site, which could allow remote attackers to execute arbitrary commands.
Web browser allows remote attackers to execute commands by spawning Telnet with a log file option on the command line and writing arbitrary code into an executable file which is later executed.
Argument injection vulnerability in the mail function for PHP may allow attackers to bypass safe mode restrictions and modify command line arguments to the MTA (e.g. sendmail) possibly executing commands.
Help and Support center in windows does not properly validate HCP URLs, which allows remote attackers to execute arbitrary code via quotation marks in an "hcp://" URL.
Mail client does not sufficiently filter parameters of mailto: URLs when using them as arguments to mail executable, which allows remote attackers to execute arbitrary programs.
Web browser doesn't filter "-" when invoking various commands, allowing command-line switches to be specified.
Mail client allows remote attackers to execute arbitrary code via a URI that uses a UNC network share pathname to provide an alternate configuration file.
SSH URI handler for web browser allows remote attackers to execute arbitrary code or conduct port forwarding via the a command line option.
Web browser doesn't filter "-" when invoking various commands, allowing command-line switches to be specified.
Argument injection vulnerability in TellMe 1.2 and earlier allows remote attackers to modify command line arguments for the Whois program and obtain sensitive information via "--" style options in the q_Host parameter.
Beagle before 0.2.5 can produce certain insecure command lines to launch external helper applications while indexing, which allows attackers to execute arbitrary commands. NOTE: it is not immediately clear whether this issue involves argument injection, shell metacharacters, or other issues.
Argument injection vulnerability in Internet Explorer 6 for Windows XP SP2 allows user-assisted remote attackers to modify command line arguments to an invoked mail client via " (double quote) characters in a mailto: scheme handler, as demonstrated by launching Microsoft Outlook with an arbitrary filename as an attachment. NOTE: it is not clear whether this issue is implementation-specific or a problem in the Microsoft API.
Argument injection vulnerability in Mozilla Firefox 1.0.6 allows user-assisted remote attackers to modify command line arguments to an invoked mail client via " (double quote) characters in a mailto: scheme handler, as demonstrated by launching Microsoft Outlook with an arbitrary filename as an attachment. NOTE: it is not clear whether this issue is implementation-specific or a problem in the Microsoft API.
Argument injection vulnerability in Avant Browser 10.1 Build 17 allows user-assisted remote attackers to modify command line arguments to an invoked mail client via " (double quote) characters in a mailto: scheme handler, as demonstrated by launching Microsoft Outlook with an arbitrary filename as an attachment. NOTE: it is not clear whether this issue is implementation-specific or a problem in the Microsoft API.
Argument injection vulnerability in the URI handler in Skype 2.0.*.104 and 2.5.*.0 through 2.5.*.78 for Windows allows remote authorized attackers to download arbitrary files via a URL that contains certain command-line switches.
Argument injection vulnerability in WinSCP 3.8.1 build 328 allows remote attackers to upload or download arbitrary files via encoded spaces and double-quote characters in a scp or sftp URI.
Argument injection vulnerability in the Windows Object Packager (packager.exe) in Microsoft Windows XP SP1 and SP2 and Server 2003 SP1 and earlier allows remote user-assisted attackers to execute arbitrary commands via a crafted file with a "/" (slash) character in the filename of the Command Line property, followed by a valid file extension, which causes the command before the slash to be executed, aka "Object Packager Dialogue Spoofing Vulnerability."
Argument injection vulnerability in HyperAccess 8.4 allows user-assisted remote attackers to execute arbitrary vbscript and commands via the /r option in a telnet:// URI, which is configured to use hawin32.exe.
Argument injection vulnerability in the telnet daemon (in.telnetd) in Solaris 10 and 11 (SunOS 5.10 and 5.11) misinterprets certain client "-f" sequences as valid requests for the login program to skip authentication, which allows remote attackers to log into certain accounts, as demonstrated by the bin account.
Language interpreter's mail function accepts another argument that is concatenated to a string used in a dangerous popen() call. Since there is no neutralization of this argument, both OS Command Injection (CWE-78) and Argument Injection (CWE-88) are possible.
+ Potential Mitigations

Phase: Architecture and Design

Strategy: Input Validation

Understand all the potential areas where untrusted inputs can enter your software: parameters or arguments, cookies, anything read from the network, environment variables, request headers as well as content, URL components, e-mail, files, databases, and any external systems that provide data to the application. Perform input validation at well-defined interfaces.

Phase: Implementation

Strategy: Input Validation

Assume all input is malicious. Use an "accept known good" input validation strategy, i.e., use a whitelist of acceptable inputs that strictly conform to specifications. Reject any input that does not strictly conform to specifications, or transform it into something that does.

When performing input validation, consider all potentially relevant properties, including length, type of input, the full range of acceptable values, missing or extra inputs, syntax, consistency across related fields, and conformance to business rules. As an example of business rule logic, "boat" may be syntactically valid because it only contains alphanumeric characters, but it is not valid if the input is only expected to contain colors such as "red" or "blue."

Do not rely exclusively on looking for malicious or malformed inputs (i.e., do not rely on a blacklist). A blacklist is likely to miss at least one undesirable input, especially if the code's environment changes. This can give attackers enough room to bypass the intended validation. However, blacklists can be useful for detecting potential attacks or determining which inputs are so malformed that they should be rejected outright.

Phase: Implementation

Directly convert your input type into the expected data type, such as using a conversion function that translates a string into a number. After converting to the expected data type, ensure that the input's values fall within the expected range of allowable values and that multi-field consistencies are maintained.

Phase: Implementation

Inputs should be decoded and canonicalized to the application's current internal representation before being validated (CWE-180, CWE-181). Make sure that your application does not inadvertently decode the same input twice (CWE-174). Such errors could be used to bypass whitelist schemes by introducing dangerous inputs after they have been checked. Use libraries such as the OWASP ESAPI Canonicalization control.

Consider performing repeated canonicalization until your input does not change any more. This will avoid double-decoding and similar scenarios, but it might inadvertently modify inputs that are allowed to contain properly-encoded dangerous content.

Phase: Implementation

When exchanging data between components, ensure that both components are using the same character encoding. Ensure that the proper encoding is applied at each interface. Explicitly set the encoding you are using whenever the protocol allows you to do so.

Phase: Implementation

When your application combines data from multiple sources, perform the validation after the sources have been combined. The individual data elements may pass the validation step but violate the intended restrictions after they have been combined.

Phase: Testing

Use automated static analysis tools that target this type of weakness. Many modern techniques use data flow analysis to minimize the number of false positives. This is not a perfect solution, since 100% accuracy and coverage are not feasible.

Phase: Testing

Use dynamic tools and techniques that interact with the software using large test suites with many diverse inputs, such as fuzz testing (fuzzing), robustness testing, and fault injection. The software's operation may slow down, but it should not become unstable, crash, or generate incorrect results.
+ Weakness Ordinalities
OrdinalityDescription
Primary
(where the weakness exists independent of other weaknesses)
+ Affected Resources
  • System Process
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.741CERT C Secure Coding Standard (2008) Chapter 8 - Characters and Strings (STR)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.744CERT C Secure Coding Standard (2008) Chapter 11 - Environment (ENV)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.810OWASP Top Ten 2010 Category A1 - Injection
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.875CERT C++ Secure Coding Section 07 - Characters and Strings (STR)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.878CERT C++ Secure Coding Section 10 - Environment (ENV)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.929OWASP Top Ten 2013 Category A1 - Injection
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.990SFP Secondary Cluster: Tainted Input to Command
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1027OWASP Top Ten 2017 Category A1 - Injection
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1165SEI CERT C Coding Standard - Guidelines 10. Environment (ENV)
+ Notes

Relationship

At one layer of abstraction, this can overlap other weaknesses that have whitespace problems, e.g. injection of javascript into attributes of HTML tags.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
PLOVERArgument Injection or Modification
CERT C Secure CodingENV03-CSanitize the environment when invoking external programs
CERT C Secure CodingENV33-CImpreciseDo not call system()
CERT C Secure CodingSTR02-CSanitize data passed to complex subsystems
WASC30Mail Command Injection
+ References
[REF-859] Steven Christey. "Argument injection issues". <http://www.securityfocus.com/archive/1/archive/1/460089/100/100/threaded>.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 10, "The Argument Array", Page 567. 1st Edition. Addison Wesley. 2006.
+ Content History
Submissions
Submission DateSubmitterOrganization
PLOVER
Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Relationships, Other_Notes, Taxonomy_Mappings, Weakness_Ordinalities
2008-11-24CWE Content TeamMITRE
updated Observed_Examples, Relationships, Taxonomy_Mappings
2009-07-27CWE Content TeamMITRE
updated Other_Notes, Relationship_Notes
2009-10-29CWE Content TeamMITRE
updated Observed_Examples
2010-02-16CWE Content TeamMITRE
updated Potential_Mitigations, Relationships, Taxonomy_Mappings
2010-04-05CWE Content TeamMITRE
updated Related_Attack_Patterns
2010-06-21CWE Content TeamMITRE
updated Observed_Examples, Relationships
2010-09-27CWE Content TeamMITRE
updated Relationships
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2011-09-13CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Common_Consequences, Demonstrative_Examples, Observed_Examples, References, Related_Attack_Patterns, Relationships
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2014-06-23CWE Content TeamMITRE
updated Relationships
2014-07-30CWE Content TeamMITRE
updated Relationships
2015-12-07CWE Content TeamMITRE
updated Demonstrative_Examples, Relationships
2017-11-08CWE Content TeamMITRE
updated Applicable_Platforms, Causal_Nature, Modes_of_Introduction, Relationships, Taxonomy_Mappings
2018-03-27CWE Content TeamMITRE
updated Relationships
2019-01-03CWE Content TeamMITRE
updated Relationships

CWE-481: Assigning instead of Comparing

Weakness ID: 481
Abstraction: Variant
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The code uses an operator for assignment when the intention was to perform a comparison.
+ Extended Description
In many languages the compare statement is very close in appearance to the assignment statement and are often confused. This bug is generally the result of a typo and usually causes obvious problems with program execution. If the comparison is in an if statement, the if statement will usually evaluate the value of the right-hand side of the predicate.
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.480Use of Incorrect Operator
CanPrecedeClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.697Incorrect Comparison
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.480Use of Incorrect Operator
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Implementation
+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

C (Undetermined Prevalence)

C++ (Undetermined Prevalence)

Java (Undetermined Prevalence)

C# (Undetermined Prevalence)

+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Other

Technical Impact: Alter Execution Logic

+ Likelihood Of Exploit
Low
+ Demonstrative Examples

Example 1

The following C/C++ and C# examples attempt to validate an int input parameter against the integer value 100.

(bad code)
Example Language:
int isValid(int value) {
if (value=100) {
printf("Value is valid\n");
return(1);
}
printf("Value is not valid\n");
return(0);
}
(bad code)
Example Language: C#
bool isValid(int value) {
if (value=100) {
Console.WriteLine("Value is valid.");
return true;
}
Console.WriteLine("Value is not valid.");
return false;
}

However, the expression to be evaluated in the if statement uses the assignment operator "=" rather than the comparison operator "==". The result of using the assignment operator instead of the comparison operator causes the int variable to be reassigned locally and the expression in the if statement will always evaluate to the value on the right hand side of the expression. This will result in the input value not being properly validated, which can cause unexpected results.

Example 2

In this example, we show how assigning instead of comparing can impact code when values are being passed by reference instead of by value. Consider a scenario in which a string is being processed from user input. Assume the string has already been formatted such that different user inputs are concatenated with the colon character. When the processString function is called, the test for the colon character will result in an insertion of the colon character instead, adding new input separators. Since the string was passed by reference, the data sentinels will be inserted in the original string (CWE-464), and further processing of the inputs will be altered, possibly malformed..

(bad code)
Example Language:
void processString (char *str) {
int i;

for(i=0; i<strlen(str); i++) {
if (isalnum(str[i])){
processChar(str[i]);
}
else if (str[i] = ':') {
movingToNewInput();}
}
}
}

Example 3

The following Java example attempts to perform some processing based on the boolean value of the input parameter. However, the expression to be evaluated in the if statement uses the assignment operator "=" rather than the comparison operator "==". As with the previous examples, the variable will be reassigned locally and the expression in the if statement will evaluate to true and unintended processing may occur.

(bad code)
Example Language: Java
public void checkValid(boolean isValid) {
if (isValid = true) {
System.out.println("Performing processing");
doSomethingImportant();
}
else {
System.out.println("Not Valid, do not perform processing");
return;
}
}

While most Java compilers will catch the use of an assignment operator when a comparison operator is required, for boolean variables in Java the use of the assignment operator within an expression is allowed. If possible, try to avoid using comparison operators on boolean variables in java. Instead, let the values of the variables stand for themselves, as in the following code.

(good code)
Example Language: Java
public void checkValid(boolean isValid) {
if (isValid) {
System.out.println("Performing processing");
doSomethingImportant();
}
else {
System.out.println("Not Valid, do not perform processing");
return;
}
}

Alternatively, to test for false, just use the boolean NOT operator.

(good code)
Example Language: Java
public void checkValid(boolean isValid) {
if (!isValid) {
System.out.println("Not Valid, do not perform processing");
return;
}
System.out.println("Performing processing");
doSomethingImportant();
}

Example 4

The following example demonstrates the weakness.

(bad code)
Example Language:
void called(int foo){
if (foo=1) printf("foo\n");
}
int main() {

called(2);
return 0;
}
+ Potential Mitigations

Phase: Testing

Many IDEs and static analysis products will detect this problem.

Phase: Implementation

Place constants on the left. If one attempts to assign a constant with a variable, the compiler will of course produce an error.
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.998SFP Secondary Cluster: Glitch in Computation
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1157SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CLASPAssigning instead of comparing
Software Fault PatternsSFP1Glitch in computation
CERT C Secure CodingEXP45-CCWE More AbstractDo not perform assignments in selection statements
+ References
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 6, "Typos", Page 289. 1st Edition. Addison Wesley. 2006.
+ Content History
Submissions
Submission DateSubmitterOrganization
CLASP
Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Applicable_Platforms, Description, Relationships, Other_Notes, Taxonomy_Mappings
2009-05-27CWE Content TeamMITRE
updated Demonstrative_Examples
2009-07-27CWE Content TeamMITRE
updated Description, Other_Notes
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2012-05-11CWE Content TeamMITRE
updated References, Relationships
2012-10-30CWE Content TeamMITRE
updated Demonstrative_Examples, Potential_Mitigations
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2017-01-19CWE Content TeamMITRE
updated Relationships
2017-11-08CWE Content TeamMITRE
updated Demonstrative_Examples, Taxonomy_Mappings
2019-01-03CWE Content TeamMITRE
updated Relationships

CWE-587: Assignment of a Fixed Address to a Pointer

Weakness ID: 587
Abstraction: Base
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The software sets a pointer to a specific address other than NULL or 0.
+ Extended Description
Using a fixed address is not portable because that address will probably not be valid in all environments or platforms.
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.758Reliance on Undefined, Unspecified, or Implementation-Defined Behavior
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.344Use of Invariant Value in Dynamically Changing Context
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.465Pointer Issues
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Architecture and Design
Implementation
+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

C (Undetermined Prevalence)

C++ (Undetermined Prevalence)

C# (Undetermined Prevalence)

Class: Assembly (Undetermined Prevalence)

+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Integrity
Confidentiality
Availability

Technical Impact: Execute Unauthorized Code or Commands

If one executes code at a known location, an attacker might be able to inject code there beforehand.
Availability

Technical Impact: DoS: Crash, Exit, or Restart

If the code is ported to another platform or environment, the pointer is likely to be invalid and cause a crash.
Confidentiality
Integrity

Technical Impact: Read Memory; Modify Memory

The data at a known pointer location can be easily read or influenced by an attacker.
+ Demonstrative Examples

Example 1

This code assumes a particular function will always be found at a particular address. It assigns a pointer to that address and calls the function.

(bad code)
Example Language:
int (*pt2Function) (float, char, char)=0x08040000;
int result2 = (*pt2Function) (12, 'a', 'b');
// Here we can inject code to execute.

The same function may not always be found at the same memory address. This could lead to a crash, or an attacker may alter the memory at the expected address, leading to arbitrary code execution.

+ Potential Mitigations

Phase: Implementation

Never set a pointer to a fixed address.
+ Weakness Ordinalities
OrdinalityDescription
Primary
(where the weakness exists independent of other weaknesses)
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.738CERT C Secure Coding Standard (2008) Chapter 5 - Integers (INT)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.872CERT C++ Secure Coding Section 04 - Integers (INT)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.998SFP Secondary Cluster: Glitch in Computation
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1158SEI CERT C Coding Standard - Guidelines 04. Integers (INT)
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CERT C Secure CodingINT36-CImpreciseConverting a pointer to integer or integer to pointer
Software Fault PatternsSFP1Glitch in computation
+ Content History
Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-08-01KDM Analytics
added/updated white box definitions
2008-09-08CWE Content TeamMITRE
updated Applicable_Platforms, Description, Relationships, Other_Notes, Weakness_Ordinalities
2008-11-24CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-03-10CWE Content TeamMITRE
updated Relationships
2009-07-27CWE Content TeamMITRE
updated Common_Consequences, Description, Other_Notes
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2011-09-13CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Demonstrative_Examples, Relationships
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2017-11-08CWE Content TeamMITRE
updated Applicable_Platforms, Taxonomy_Mappings, White_Box_Definitions
2019-01-03CWE Content TeamMITRE
updated Relationships

CWE-805: Buffer Access with Incorrect Length Value

Weakness ID: 805
Abstraction: Base
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
The software uses a sequential operation to read or write a buffer, but it uses an incorrect length value that causes it to access memory that is outside of the bounds of the buffer.
+ Extended Description
When the length value exceeds the size of the destination, a buffer overflow could occur.
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.119Improper Restriction of Operations within the Bounds of a Memory Buffer
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.806Buffer Access Using Size of Source Buffer
CanFollowBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.130Improper Handling of Length Parameter Inconsistency
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.119Improper Restriction of Operations within the Bounds of a Memory Buffer
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.806Buffer Access Using Size of Source Buffer
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Implementation
+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

C (Often Prevalent)

C++ (Often Prevalent)

Class: Assembly (Undetermined Prevalence)

+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Integrity
Confidentiality
Availability

Technical Impact: Execute Unauthorized Code or Commands

Buffer overflows often can be used to execute arbitrary code, which is usually outside the scope of a program's implicit security policy. This can often be used to subvert any other security service.
Availability

Technical Impact: DoS: Crash, Exit, or Restart; DoS: Resource Consumption (CPU)

Buffer overflows generally lead to crashes. Other attacks leading to lack of availability are possible, including putting the program into an infinite loop.
+ Likelihood Of Exploit
High
+ Demonstrative Examples

Example 1

This example takes an IP address from a user, verifies that it is well formed and then looks up the hostname and copies it into a buffer.

(bad code)
Example Language:
void host_lookup(char *user_supplied_addr){
struct hostent *hp;
in_addr_t *addr;
char hostname[64];
in_addr_t inet_addr(const char *cp);

/*routine that ensures user_supplied_addr is in the right format for conversion */

validate_addr_form(user_supplied_addr);
addr = inet_addr(user_supplied_addr);
hp = gethostbyaddr( addr, sizeof(struct in_addr), AF_INET);
strcpy(hostname, hp->h_name);
}

This function allocates a buffer of 64 bytes to store the hostname under the assumption that the maximum length value of hostname is 64 bytes, however there is no guarantee that the hostname will not be larger than 64 bytes. If an attacker specifies an address which resolves to a very large hostname, then we may overwrite sensitive data or even relinquish control flow to the attacker.

Note that this example also contains an unchecked return value (CWE-252) that can lead to a NULL pointer dereference (CWE-476).

Example 2

In the following example, it is possible to request that memcpy move a much larger segment of memory than assumed:

(bad code)
Example Language:
int returnChunkSize(void *) {

/* if chunk info is valid, return the size of usable memory,

* else, return -1 to indicate an error

*/
...
}
int main() {
...
memcpy(destBuf, srcBuf, (returnChunkSize(destBuf)-1));
...
}

If returnChunkSize() happens to encounter an error it will return -1. Notice that the return value is not checked before the memcpy operation (CWE-252), so -1 can be passed as the size argument to memcpy() (CWE-805). Because memcpy() assumes that the value is unsigned, it will be interpreted as MAXINT-1 (CWE-195), and therefore will copy far more memory than is likely available to the destination buffer (CWE-787, CWE-788).

Example 3

In the following example, the source character string is copied to the dest character string using the method strncpy.

(bad code)
Example Language:
...
char source[21] = "the character string";
char dest[12];
strncpy(dest, source, sizeof(source)-1);
...

However, in the call to strncpy the source character string is used within the sizeof call to determine the number of characters to copy. This will create a buffer overflow as the size of the source character string is greater than the dest character string. The dest character string should be used within the sizeof call to ensure that the correct number of characters are copied, as shown below.

(good code)
Example Language:
...
char source[21] = "the character string";
char dest[12];
strncpy(dest, source, sizeof(dest)-1);
...

Example 4

In this example, the method outputFilenameToLog outputs a filename to a log file. The method arguments include a pointer to a character string containing the file name and an integer for the number of characters in the string. The filename is copied to a buffer where the buffer size is set to a maximum size for inputs to the log file. The method then calls another method to save the contents of the buffer to the log file.

(bad code)
Example Language:
#define LOG_INPUT_SIZE 40

// saves the file name to a log file
int outputFilenameToLog(char *filename, int length) {
int success;

// buffer with size set to maximum size for input to log file
char buf[LOG_INPUT_SIZE];

// copy filename to buffer
strncpy(buf, filename, length);

// save to log file
success = saveToLogFile(buf);

return success;
}

However, in this case the string copy method, strncpy, mistakenly uses the length method argument to determine the number of characters to copy rather than using the size of the local character string, buf. This can lead to a buffer overflow if the number of characters contained in character string pointed to by filename is larger then the number of characters allowed for the local character string. The string copy method should use the buf character string within a sizeof call to ensure that only characters up to the size of the buf array are copied to avoid a buffer overflow, as shown below.

(good code)
Example Language:
...
// copy filename to buffer
strncpy(buf, filename, sizeof(buf)-1);
...
+ Observed Examples
ReferenceDescription
Chain: large length value causes buffer over-read (CWE-126)
Use of packet length field to make a calculation, then copy into a fixed-size buffer
Chain: retrieval of length value from an uninitialized memory location
Crafted length value in document reader leads to buffer overflow
SSL server overflow when the sum of multiple length fields exceeds a given value
Language interpreter API function doesn't validate length argument, leading to information exposure
+ Potential Mitigations

Phase: Requirements

Strategy: Language Selection

Use a language that does not allow this weakness to occur or provides constructs that make this weakness easier to avoid.

For example, many languages that perform their own memory management, such as Java and Perl, are not subject to buffer overflows. Other languages, such as Ada and C#, typically provide overflow protection, but the protection can be disabled by the programmer.

Be wary that a language's interface to native code may still be subject to overflows, even if the language itself is theoretically safe.

Phase: Architecture and Design

Strategy: Libraries or Frameworks

Use a vetted library or framework that does not allow this weakness to occur or provides constructs that make this weakness easier to avoid.

Examples include the Safe C String Library (SafeStr) by Messier and Viega [REF-57], and the Strsafe.h library from Microsoft [REF-56]. These libraries provide safer versions of overflow-prone string-handling functions.

Note: This is not a complete solution, since many buffer overflows are not related to strings.

Phase: Build and Compilation

Strategy: Compilation or Build Hardening

Run or compile the software using features or extensions that automatically provide a protection mechanism that mitigates or eliminates buffer overflows.

For example, certain compilers and extensions provide automatic buffer overflow detection mechanisms that are built into the compiled code. Examples include the Microsoft Visual Studio /GS flag, Fedora/Red Hat FORTIFY_SOURCE GCC flag, StackGuard, and ProPolice.

Effectiveness: Defense in Depth

Note: This is not necessarily a complete solution, since these mechanisms can only detect certain types of overflows. In addition, an attack could still cause a denial of service, since the typical response is to exit the application.

Phase: Implementation

Consider adhering to the following rules when allocating and managing an application's memory:

  • Double check that your buffer is as large as you specify.
  • When using functions that accept a number of bytes to copy, such as strncpy(), be aware that if the destination buffer size is equal to the source buffer size, it may not NULL-terminate the string.
  • Check buffer boundaries if accessing the buffer in a loop and make sure you are not in danger of writing past the allocated space.
  • If necessary, truncate all input strings to a reasonable length before passing them to the copy and concatenation functions.

Phase: Architecture and Design

For any security checks that are performed on the client side, ensure that these checks are duplicated on the server side, in order to avoid CWE-602. Attackers can bypass the client-side checks by modifying values after the checks have been performed, or by changing the client to remove the client-side checks entirely. Then, these modified values would be submitted to the server.

Phase: Operation

Strategy: Environment Hardening

Run or compile the software using features or extensions that randomly arrange the positions of a program's executable and libraries in memory. Because this makes the addresses unpredictable, it can prevent an attacker from reliably jumping to exploitable code.

Examples include Address Space Layout Randomization (ASLR) [REF-58] [REF-60] and Position-Independent Executables (PIE) [REF-64].

Effectiveness: Defense in Depth

Note: This is not a complete solution. However, it forces the attacker to guess an unknown value that changes every program execution. In addition, an attack could still cause a denial of service, since the typical response is to exit the application.

Phase: Operation

Strategy: Environment Hardening

Use a CPU and operating system that offers Data Execution Protection (NX) or its equivalent [REF-59] [REF-57].

Effectiveness: Defense in Depth

Note: This is not a complete solution, since buffer overflows could be used to overwrite nearby variables to modify the software's state in dangerous ways. In addition, it cannot be used in cases in which self-modifying code is required. Finally, an attack could still cause a denial of service, since the typical response is to exit the application.

Phases: Architecture and Design; Operation

Strategy: Environment Hardening

Run your code using the lowest privileges that are required to accomplish the necessary tasks [REF-76]. If possible, create isolated accounts with limited privileges that are only used for a single task. That way, a successful attack will not immediately give the attacker access to the rest of the software or its environment. For example, database applications rarely need to run as the database administrator, especially in day-to-day operations.

Phases: Architecture and Design; Operation

Strategy: Sandbox or Jail

Run the code in a "jail" or similar sandbox environment that enforces strict boundaries between the process and the operating system. This may effectively restrict which files can be accessed in a particular directory or which commands can be executed by the software.

OS-level examples include the Unix chroot jail, AppArmor, and SELinux. In general, managed code may provide some protection. For example, java.io.FilePermission in the Java SecurityManager allows the software to specify restrictions on file operations.

This may not be a feasible solution, and it only limits the impact to the operating system; the rest of the application may still be subject to compromise.

Be careful to avoid CWE-243 and other weaknesses related to jails.

Effectiveness: Limited

Note: The effectiveness of this mitigation depends on the prevention capabilities of the specific sandbox or jail being used and might only help to reduce the scope of an attack, such as restricting the attacker to certain system calls or limiting the portion of the file system that can be accessed.
+ Weakness Ordinalities
OrdinalityDescription
Resultant
(where the weakness is typically related to the presence of some other weaknesses)
Primary
(where the weakness exists independent of other weaknesses)
+ Detection Methods

Automated Static Analysis

This weakness can often be detected using automated static analysis tools. Many modern tools use data flow analysis or constraint-based techniques to minimize the number of false positives.

Automated static analysis generally does not account for environmental considerations when reporting out-of-bounds memory operations. This can make it difficult for users to determine which warnings should be investigated first. For example, an analysis tool might report buffer overflows that originate from command line arguments in a program that is not expected to run with setuid or other special privileges.

Effectiveness: High

Note: Detection techniques for buffer-related errors are more mature than for most other weakness types.

Automated Dynamic Analysis

This weakness can be detected using dynamic tools and techniques that interact with the software using large test suites with many diverse inputs, such as fuzz testing (fuzzing), robustness testing, and fault injection. The software's operation may slow down, but it should not become unstable, crash, or generate incorrect results.

Effectiveness: Moderate

Note: Without visibility into the code, black box methods may not be able to sufficiently distinguish this weakness from others, requiring manual methods to diagnose the underlying problem.

Manual Analysis

Manual analysis can be useful for finding this weakness, but it might not achieve desired code coverage within limited time constraints. This becomes difficult for weaknesses that must be considered for all inputs, since the attack surface can be too large.
+ Affected Resources
  • Memory
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.740CERT C Secure Coding Standard (2008) Chapter 7 - Arrays (ARR)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.8022010 Top 25 - Risky Resource Management
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.8672011 Top 25 - Weaknesses On the Cusp
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.874CERT C++ Secure Coding Section 06 - Arrays and the STL (ARR)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1160SEI CERT C Coding Standard - Guidelines 06. Arrays (ARR)
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CERT C Secure CodingARR38-CImpreciseGuarantee that library functions do not form invalid pointers
+ References
[REF-7] Michael Howard and David LeBlanc. "Writing Secure Code". Chapter 6, "Why ACLs Are Important" Page 171. 2nd Edition. Microsoft Press. 2002-12-04. <https://www.microsoftpressstore.com/store/writing-secure-code-9780735617223>.
[REF-58] Michael Howard. "Address Space Layout Randomization in Windows Vista". <http://blogs.msdn.com/michael_howard/archive/2006/05/26/address-space-layout-randomization-in-windows-vista.aspx>.
[REF-59] Arjan van de Ven. "Limiting buffer overflows with ExecShield". <http://www.redhat.com/magazine/009jul05/features/execshield/>.
[REF-741] Jason Lam. "Top 25 Series - Rank 12 - Buffer Access with Incorrect Length Value". SANS Software Security Institute. 2010-03-11. <http://blogs.sans.org/appsecstreetfighter/2010/03/11/top-25-series-rank-12-buffer-access-with-incorrect-length-value/>.
[REF-57] Matt Messier and John Viega. "Safe C String Library v1.0.3". <http://www.zork.org/safestr/>.
[REF-56] Microsoft. "Using the Strsafe.h Functions". <http://msdn.microsoft.com/en-us/library/ms647466.aspx>.
[REF-61] Microsoft. "Understanding DEP as a mitigation technology part 1". <http://blogs.technet.com/b/srd/archive/2009/06/12/understanding-dep-as-a-mitigation-technology-part-1.aspx>.
[REF-76] Sean Barnum and Michael Gegick. "Least Privilege". 2005-09-14. <https://buildsecurityin.us-cert.gov/daisy/bsi/articles/knowledge/principles/351.html>.
[REF-64] Grant Murphy. "Position Independent Executables (PIE)". Red Hat. 2012-11-28. <https://securityblog.redhat.com/2012/11/28/position-independent-executables-pie/>.
+ Content History
Submissions
Submission DateSubmitterOrganization
2010-01-15CWE Content TeamMITRE
Modifications
Modification DateModifierOrganization
2010-04-05CWE Content TeamMITRE
updated Related_Attack_Patterns
2010-06-21CWE Content TeamMITRE
updated Common_Consequences, Potential_Mitigations, References
2010-09-27CWE Content TeamMITRE
updated Potential_Mitigations
2010-12-13CWE Content TeamMITRE
updated Potential_Mitigations
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2011-06-27CWE Content TeamMITRE
updated Demonstrative_Examples, Observed_Examples, Relationships
2011-09-13CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Potential_Mitigations, References, Relationships
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2014-02-18CWE Content TeamMITRE
updated Potential_Mitigations, References
2014-06-23CWE Content TeamMITRE
updated Demonstrative_Examples
2017-11-08CWE Content TeamMITRE
updated Applicable_Platforms, Causal_Nature, Demonstrative_Examples, Likelihood_of_Exploit, References, Taxonomy_Mappings
2018-03-27CWE Content TeamMITRE
updated References
2019-01-03CWE Content TeamMITRE
updated Relationships

CWE-120: Buffer Copy without Checking Size of Input ('Classic Buffer Overflow')

Weakness ID: 120
Abstraction: Base
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
The program copies an input buffer to an output buffer without verifying that the size of the input buffer is less than the size of the output buffer, leading to a buffer overflow.
+ Extended Description
A buffer overflow condition exists when a program attempts to put more data in a buffer than it can hold, or when a program attempts to put data in a memory area outside of the boundaries of a buffer. The simplest type of error, and the most common cause of buffer overflows, is the "classic" case in which the program copies the buffer without restricting how much is copied. Other variants exist, but the existence of a classic overflow strongly suggests that the programmer is not considering even the most basic of security protections.
+ Alternate Terms
buffer overrun:
Some prominent vendors and researchers use the term "buffer overrun," but most people use "buffer overflow."
Unbounded Transfer
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.119Improper Restriction of Operations within the Bounds of a Memory Buffer
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.785Use of Path Manipulation Function without Maximum-sized Buffer
CanFollowBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.170Improper Null Termination
CanFollowVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.231Improper Handling of Extra Values
CanFollowBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.416Use After Free
CanFollowBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.456Missing Initialization of a Variable
CanPrecedeBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.123Write-what-where Condition
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.119Improper Restriction of Operations within the Bounds of a Memory Buffer
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.785Use of Path Manipulation Function without Maximum-sized Buffer
+ Relevant to the view "Seven Pernicious Kingdoms" (CWE-700)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.20Improper Input Validation
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Implementation
+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

C (Undetermined Prevalence)

C++ (Undetermined Prevalence)

Class: Assembly (Undetermined Prevalence)

+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Integrity
Confidentiality
Availability

Technical Impact: Execute Unauthorized Code or Commands

Buffer overflows often can be used to execute arbitrary code, which is usually outside the scope of a program's implicit security policy. This can often be used to subvert any other security service.
Availability

Technical Impact: DoS: Crash, Exit, or Restart; DoS: Resource Consumption (CPU)

Buffer overflows generally lead to crashes. Other attacks leading to lack of availability are possible, including putting the program into an infinite loop.
+ Likelihood Of Exploit
High
+ Demonstrative Examples

Example 1

The following code asks the user to enter their last name and then attempts to store the value entered in the last_name array.

(bad code)
Example Language:
char last_name[20];
printf ("Enter your last name: ");
scanf ("%s", last_name);

The problem with the code above is that it does not restrict or limit the size of the name entered by the user. If the user enters "Very_very_long_last_name" which is 24 characters long, then a buffer overflow will occur since the array can only hold 20 characters total.

Example 2

The following code attempts to create a local copy of a buffer to perform some manipulations to the data.

(bad code)
Example Language:
void manipulate_string(char* string){
char buf[24];
strcpy(buf, string);
...
}

However, the programmer does not ensure that the size of the data pointed to by string will fit in the local buffer and blindly copies the data with the potentially dangerous strcpy() function. This may result in a buffer overflow condition if an attacker can influence the contents of the string parameter.

Example 3

The excerpt below calls the gets() function in C, which is inherently unsafe.

(bad code)
Example Language:
char buf[24];
printf("Please enter your name and press <Enter>\n");
gets(buf);
...
}

However, the programmer uses the function gets() which is inherently unsafe because it blindly copies all input from STDIN to the buffer without restricting how much is copied. This allows the user to provide a string that is larger than the buffer size, resulting in an overflow condition.

Example 4

In the following example, a server accepts connections from a client and processes the client request. After accepting a client connection, the program will obtain client information using the gethostbyaddr method, copy the hostname of the client that connected to a local variable and output the hostname of the client to a log file.

(bad code)
Example Language:
...
struct hostent *clienthp;
char hostname[MAX_LEN];

// create server socket, bind to server address and listen on socket
...

// accept client connections and process requests
int count = 0;
for (count = 0; count < MAX_CONNECTIONS; count++) {

int clientlen = sizeof(struct sockaddr_in);
int clientsocket = accept(serversocket, (struct sockaddr *)&clientaddr, &clientlen);

if (clientsocket >= 0) {
clienthp = gethostbyaddr((char*) &clientaddr.sin_addr.s_addr, sizeof(clientaddr.sin_addr.s_addr), AF_INET);
strcpy(hostname, clienthp->h_name);
logOutput("Accepted client connection from host ", hostname);

// process client request
...
close(clientsocket);
}
}
close(serversocket);

...

However, the hostname of the client that connected may be longer than the allocated size for the local hostname variable. This will result in a buffer overflow when copying the client hostname to the local variable using the strcpy method.

+ Observed Examples
ReferenceDescription
buffer overflow using command with long argument
buffer overflow in local program using long environment variable
buffer overflow in comment characters, when product increments a counter for a ">" but does not decrement for "<"
By replacing a valid cookie value with an extremely long string of characters, an attacker may overflow the application's buffers.
By replacing a valid cookie value with an extremely long string of characters, an attacker may overflow the application's buffers.
+ Potential Mitigations

Phase: Requirements

Strategy: Language Selection

Use a language that does not allow this weakness to occur or provides constructs that make this weakness easier to avoid.

For example, many languages that perform their own memory management, such as Java and Perl, are not subject to buffer overflows. Other languages, such as Ada and C#, typically provide overflow protection, but the protection can be disabled by the programmer.

Be wary that a language's interface to native code may still be subject to overflows, even if the language itself is theoretically safe.

Phase: Architecture and Design

Strategy: Libraries or Frameworks

Use a vetted library or framework that does not allow this weakness to occur or provides constructs that make this weakness easier to avoid.

Examples include the Safe C String Library (SafeStr) by Messier and Viega [REF-57], and the Strsafe.h library from Microsoft [REF-56]. These libraries provide safer versions of overflow-prone string-handling functions.

Note: This is not a complete solution, since many buffer overflows are not related to strings.

Phase: Build and Compilation

Strategy: Compilation or Build Hardening

Run or compile the software using features or extensions that automatically provide a protection mechanism that mitigates or eliminates buffer overflows.

For example, certain compilers and extensions provide automatic buffer overflow detection mechanisms that are built into the compiled code. Examples include the Microsoft Visual Studio /GS flag, Fedora/Red Hat FORTIFY_SOURCE GCC flag, StackGuard, and ProPolice.

Effectiveness: Defense in Depth

Note: This is not necessarily a complete solution, since these mechanisms can only detect certain types of overflows. In addition, an attack could still cause a denial of service, since the typical response is to exit the application.

Phase: Implementation

Consider adhering to the following rules when allocating and managing an application's memory:

  • Double check that your buffer is as large as you specify.
  • When using functions that accept a number of bytes to copy, such as strncpy(), be aware that if the destination buffer size is equal to the source buffer size, it may not NULL-terminate the string.
  • Check buffer boundaries if accessing the buffer in a loop and make sure you are not in danger of writing past the allocated space.
  • If necessary, truncate all input strings to a reasonable length before passing them to the copy and concatenation functions.

Phase: Implementation

Strategy: Input Validation

Assume all input is malicious. Use an "accept known good" input validation strategy, i.e., use a whitelist of acceptable inputs that strictly conform to specifications. Reject any input that does not strictly conform to specifications, or transform it into something that does.

When performing input validation, consider all potentially relevant properties, including length, type of input, the full range of acceptable values, missing or extra inputs, syntax, consistency across related fields, and conformance to business rules. As an example of business rule logic, "boat" may be syntactically valid because it only contains alphanumeric characters, but it is not valid if the input is only expected to contain colors such as "red" or "blue."

Do not rely exclusively on looking for malicious or malformed inputs (i.e., do not rely on a blacklist). A blacklist is likely to miss at least one undesirable input, especially if the code's environment changes. This can give attackers enough room to bypass the intended validation. However, blacklists can be useful for detecting potential attacks or determining which inputs are so malformed that they should be rejected outright.

Phase: Architecture and Design

For any security checks that are performed on the client side, ensure that these checks are duplicated on the server side, in order to avoid CWE-602. Attackers can bypass the client-side checks by modifying values after the checks have been performed, or by changing the client to remove the client-side checks entirely. Then, these modified values would be submitted to the server.

Phase: Operation

Strategy: Environment Hardening

Run or compile the software using features or extensions that randomly arrange the positions of a program's executable and libraries in memory. Because this makes the addresses unpredictable, it can prevent an attacker from reliably jumping to exploitable code.

Examples include Address Space Layout Randomization (ASLR) [REF-58] [REF-60] and Position-Independent Executables (PIE) [REF-64].

Effectiveness: Defense in Depth

Note: This is not a complete solution. However, it forces the attacker to guess an unknown value that changes every program execution. In addition, an attack could still cause a denial of service, since the typical response is to exit the application.

Phase: Operation

Strategy: Environment Hardening

Use a CPU and operating system that offers Data Execution Protection (NX) or its equivalent [REF-60] [REF-61].

Effectiveness: Defense in Depth

Note: This is not a complete solution, since buffer overflows could be used to overwrite nearby variables to modify the software's state in dangerous ways. In addition, it cannot be used in cases in which self-modifying code is required. Finally, an attack could still cause a denial of service, since the typical response is to exit the application.

Phases: Build and Compilation; Operation

Most mitigating technologies at the compiler or OS level to date address only a subset of buffer overflow problems and rarely provide complete protection against even that subset. It is good practice to implement strategies to increase the workload of an attacker, such as leaving the attacker to guess an unknown value that changes every program execution.

Phase: Implementation

Replace unbounded copy functions with analogous functions that support length arguments, such as strcpy with strncpy. Create these if they are not available.

Effectiveness: Moderate

Note: This approach is still susceptible to calculation errors, including issues such as off-by-one errors (CWE-193) and incorrectly calculating buffer lengths (CWE-131).

Phase: Architecture and Design

Strategy: Enforcement by Conversion

When the set of acceptable objects, such as filenames or URLs, is limited or known, create a mapping from a set of fixed input values (such as numeric IDs) to the actual filenames or URLs, and reject all other inputs.

Phases: Architecture and Design; Operation

Strategy: Environment Hardening

Run your code using the lowest privileges that are required to accomplish the necessary tasks [REF-76]. If possible, create isolated accounts with limited privileges that are only used for a single task. That way, a successful attack will not immediately give the attacker access to the rest of the software or its environment. For example, database applications rarely need to run as the database administrator, especially in day-to-day operations.

Phases: Architecture and Design; Operation

Strategy: Sandbox or Jail

Run the code in a "jail" or similar sandbox environment that enforces strict boundaries between the process and the operating system. This may effectively restrict which files can be accessed in a particular directory or which commands can be executed by the software.

OS-level examples include the Unix chroot jail, AppArmor, and SELinux. In general, managed code may provide some protection. For example, java.io.FilePermission in the Java SecurityManager allows the software to specify restrictions on file operations.

This may not be a feasible solution, and it only limits the impact to the operating system; the rest of the application may still be subject to compromise.

Be careful to avoid CWE-243 and other weaknesses related to jails.

Effectiveness: Limited

Note: The effectiveness of this mitigation depends on the prevention capabilities of the specific sandbox or jail being used and might only help to reduce the scope of an attack, such as restricting the attacker to certain system calls or limiting the portion of the file system that can be accessed.
+ Weakness Ordinalities
OrdinalityDescription
Resultant
(where the weakness is typically related to the presence of some other weaknesses)
Primary
(where the weakness exists independent of other weaknesses)
+ Detection Methods

Automated Static Analysis

This weakness can often be detected using automated static analysis tools. Many modern tools use data flow analysis or constraint-based techniques to minimize the number of false positives.

Automated static analysis generally does not account for environmental considerations when reporting out-of-bounds memory operations. This can make it difficult for users to determine which warnings should be investigated first. For example, an analysis tool might report buffer overflows that originate from command line arguments in a program that is not expected to run with setuid or other special privileges.

Effectiveness: High

Note: Detection techniques for buffer-related errors are more mature than for most other weakness types.

Automated Dynamic Analysis

This weakness can be detected using dynamic tools and techniques that interact with the software using large test suites with many diverse inputs, such as fuzz testing (fuzzing), robustness testing, and fault injection. The software's operation may slow down, but it should not become unstable, crash, or generate incorrect results.

Manual Analysis

Manual analysis can be useful for finding this weakness, but it might not achieve desired code coverage within limited time constraints. This becomes difficult for weaknesses that must be considered for all inputs, since the attack surface can be too large.

Automated Static Analysis - Binary or Bytecode

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Bytecode Weakness Analysis - including disassembler + source code weakness analysis
  • Binary Weakness Analysis - including disassembler + source code weakness analysis

Effectiveness: High

Manual Static Analysis - Binary or Bytecode

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Binary / Bytecode disassembler - then use manual analysis for vulnerabilities & anomalies

Effectiveness: SOAR Partial

Dynamic Analysis with Automated Results Interpretation

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Web Application Scanner
  • Web Services Scanner
  • Database Scanners

Effectiveness: SOAR Partial

Dynamic Analysis with Manual Results Interpretation

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Fuzz Tester
  • Framework-based Fuzzer

Effectiveness: SOAR Partial

Manual Static Analysis - Source Code

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Focused Manual Spotcheck - Focused manual analysis of source
  • Manual Source Code Review (not inspections)

Effectiveness: SOAR Partial

Automated Static Analysis - Source Code

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Source code Weakness Analyzer
  • Context-configured Source Code Weakness Analyzer

Effectiveness: High

Architecture or Design Review

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Formal Methods / Correct-By-Construction
Cost effective for partial coverage:
  • Inspection (IEEE 1028 standard) (can apply to requirements, design, source code, etc.)

Effectiveness: High

+ Functional Areas
  • Memory Management
+ Affected Resources
  • Memory
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.722OWASP Top Ten 2004 Category A1 - Unvalidated Input
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.726OWASP Top Ten 2004 Category A5 - Buffer Overflows
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.741CERT C Secure Coding Standard (2008) Chapter 8 - Characters and Strings (STR)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.8022010 Top 25 - Risky Resource Management
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.8652011 Top 25 - Risky Resource Management
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.875CERT C++ Secure Coding Section 07 - Characters and Strings (STR)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.970SFP Secondary Cluster: Faulty Buffer Access
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1129CISQ Quality Measures - Reliability
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1131CISQ Quality Measures - Security
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1161SEI CERT C Coding Standard - Guidelines 07. Characters and Strings (STR)
+ Notes

Relationship

At the code level, stack-based and heap-based overflows do not differ significantly, so there usually is not a need to distinguish them. From the attacker perspective, they can be quite different, since different techniques are required to exploit them.

Terminology

Many issues that are now called "buffer overflows" are substantively different than the "classic" overflow, including entirely different bug types that rely on overflow exploit techniques, such as integer signedness errors, integer overflows, and format string bugs. This imprecise terminology can make it difficult to determine which variant is being reported.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
PLOVERUnbounded Transfer ('classic overflow')
7 Pernicious KingdomsBuffer Overflow
CLASPBuffer overflow
OWASP Top Ten 2004A1CWE More SpecificUnvalidated Input
OWASP Top Ten 2004A5CWE More SpecificBuffer Overflows
CERT C Secure CodingSTR31-CExactGuarantee that storage for strings has sufficient space for character data and the null terminator
WASC7Buffer Overflow
Software Fault PatternsSFP8Faulty Buffer Access
OMG ASCSMASCSM-CWE-120
OMG ASCRMASCRM-CWE-120
+ References
[REF-7] Michael Howard and David LeBlanc. "Writing Secure Code". Chapter 5, "Public Enemy #1: The Buffer Overrun" Page 127. 2nd Edition. Microsoft Press. 2002-12-04. <https://www.microsoftpressstore.com/store/writing-secure-code-9780735617223>.
[REF-44] Michael Howard, David LeBlanc and John Viega. "24 Deadly Sins of Software Security". "Sin 5: Buffer Overruns." Page 89. McGraw-Hill. 2010.
[REF-56] Microsoft. "Using the Strsafe.h Functions". <http://msdn.microsoft.com/en-us/library/ms647466.aspx>.
[REF-57] Matt Messier and John Viega. "Safe C String Library v1.0.3". <http://www.zork.org/safestr/>.
[REF-58] Michael Howard. "Address Space Layout Randomization in Windows Vista". <http://blogs.msdn.com/michael_howard/archive/2006/05/26/address-space-layout-randomization-in-windows-vista.aspx>.
[REF-59] Arjan van de Ven. "Limiting buffer overflows with ExecShield". <http://www.redhat.com/magazine/009jul05/features/execshield/>.
[REF-74] Jason Lam. "Top 25 Series - Rank 3 - Classic Buffer Overflow". SANS Software Security Institute. 2010-03-02. <http://software-security.sans.org/blog/2010/03/02/top-25-series-rank-3-classic-buffer-overflow/>.
[REF-61] Microsoft. "Understanding DEP as a mitigation technology part 1". <http://blogs.technet.com/b/srd/archive/2009/06/12/understanding-dep-as-a-mitigation-technology-part-1.aspx>.
[REF-76] Sean Barnum and Michael Gegick. "Least Privilege". 2005-09-14. <https://buildsecurityin.us-cert.gov/daisy/bsi/articles/knowledge/principles/351.html>.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 3, "Nonexecutable Stack", Page 76. 1st Edition. Addison Wesley. 2006.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 5, "Protection Mechanisms", Page 189. 1st Edition. Addison Wesley. 2006.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 8, "C String Handling", Page 388. 1st Edition. Addison Wesley. 2006.
[REF-64] Grant Murphy. "Position Independent Executables (PIE)". Red Hat. 2012-11-28. <https://securityblog.redhat.com/2012/11/28/position-independent-executables-pie/>.
[REF-961] Object Management Group (OMG). "Automated Source Code Reliability Measure (ASCRM)". ASCRM-CWE-120. 2016-01. <http://www.omg.org/spec/ASCRM/1.0/>.
[REF-962] Object Management Group (OMG). "Automated Source Code Security Measure (ASCSM)". ASCSM-CWE-120. 2016-01. <http://www.omg.org/spec/ASCSM/1.0/>.
+ Content History
Submissions
Submission DateSubmitterOrganization
PLOVER
Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-08-01KDM Analytics
added/updated white box definitions
2008-08-15Veracode
Suggested OWASP Top Ten 2004 mapping
2008-09-08CWE Content TeamMITRE
updated Alternate_Terms, Applicable_Platforms, Common_Consequences, Relationships, Observed_Example, Other_Notes, Taxonomy_Mappings, Weakness_Ordinalities
2008-10-10CWE Content TeamMITRE
Changed name and description to more clearly emphasize the "classic" nature of the overflow.
2008-10-14CWE Content TeamMITRE
updated Alternate_Terms, Description, Name, Other_Notes, Terminology_Notes
2008-11-24CWE Content TeamMITRE
updated Other_Notes, Relationships, Taxonomy_Mappings
2009-01-12CWE Content TeamMITRE
updated Common_Consequences, Other_Notes, Potential_Mitigations, References, Relationship_Notes, Relationships
2009-07-27CWE Content TeamMITRE
updated Other_Notes, Potential_Mitigations, Relationships
2009-10-29CWE Content TeamMITRE
updated Common_Consequences, Relationships
2010-02-16CWE Content TeamMITRE
updated Applicable_Platforms, Common_Consequences, Demonstrative_Examples, Detection_Factors, Potential_Mitigations, References, Related_Attack_Patterns, Relationships, Taxonomy_Mappings, Time_of_Introduction, Type
2010-04-05CWE Content TeamMITRE
updated Demonstrative_Examples, Related_Attack_Patterns
2010-06-21CWE Content TeamMITRE
updated Common_Consequences, Potential_Mitigations, References
2010-09-27CWE Content TeamMITRE
updated Potential_Mitigations
2010-12-13CWE Content TeamMITRE
updated Potential_Mitigations
2011-03-29CWE Content TeamMITRE
updated Demonstrative_Examples, Description
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2011-06-27CWE Content TeamMITRE
updated Relationships
2011-09-13CWE Content TeamMITRE
updated Potential_Mitigations, References, Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated References, Relationships
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2014-02-18CWE Content TeamMITRE
updated Potential_Mitigations, References
2014-07-30CWE Content TeamMITRE
updated Detection_Factors, Relationships, Taxonomy_Mappings
2017-11-08CWE Content TeamMITRE
updated Applicable_Platforms, Causal_Nature, Demonstrative_Examples, Likelihood_of_Exploit, References, Relationships, Taxonomy_Mappings, White_Box_Definitions
2018-03-27CWE Content TeamMITRE
updated References
2019-01-03CWE Content TeamMITRE
updated References, Relationships, Taxonomy_Mappings
Previous Entry Names
Change DatePrevious Entry Name
2008-10-14Unbounded Transfer ('Classic Buffer Overflow')

CWE-369: Divide By Zero

Weakness ID: 369
Abstraction: Base
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The product divides a value by zero.
+ Extended Description
This weakness typically occurs when an unexpected value is provided to the product, or if an error occurs that is not properly detected. It frequently occurs in calculations involving physical dimensions such as size, length, width, and height.
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.682Incorrect Calculation
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.682Incorrect Calculation
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.682Incorrect Calculation
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Implementation
+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Availability

Technical Impact: DoS: Crash, Exit, or Restart

A Divide by Zero results in a crash.
+ Likelihood Of Exploit
Medium
+ Demonstrative Examples

Example 1

The following Java example contains a function to compute an average but does not validate that the input value used as the denominator is not zero. This will create an exception for attempting to divide by zero. If this error is not handled by Java exception handling, unexpected results can occur.

(bad code)
Example Language: Java
public int computeAverageResponseTime (int totalTime, int numRequests) {
return totalTime / numRequests;
}

By validating the input value used as the denominator the following code will ensure that a divide by zero error will not cause unexpected results. The following Java code example will validate the input value, output an error message, and throw an exception.

(good code)

public int computeAverageResponseTime (int totalTime, int numRequests) throws ArithmeticException {
if (numRequests == 0) {
System.out.println("Division by zero attempted!");
throw ArithmeticException;
}
return totalTime / numRequests;
}

Example 2

The following C/C++ example contains a function that divides two numeric values without verifying that the input value used as the denominator is not zero. This will create an error for attempting to divide by zero, if this error is not caught by the error handling capabilities of the language, unexpected results can occur.

(bad code)
Example Language:
double divide(double x, double y){
return x/y;
}

By validating the input value used as the denominator the following code will ensure that a divide by zero error will not cause unexpected results. If the method is called and a zero is passed as the second argument a DivideByZero error will be thrown and should be caught by the calling block with an output message indicating the error.

(good code)

const int DivideByZero = 10;
double divide(double x, double y){
if ( 0 == y ){
throw DivideByZero;
}
return x/y;
}
...
try{
divide(10, 0);
}
catch( int i ){
if(i==DivideByZero) {
cerr<<"Divide by zero error";
}
}
Example 2 References:
[REF-371] Alex Allain. "Handling Errors Exceptionally Well in C++". <http://www.cprogramming.com/tutorial/exceptions.html>.

Example 3

The following C# example contains a function that divides two numeric values without verifying that the input value used as the denominator is not zero. This will create an error for attempting to divide by zero, if this error is not caught by the error handling capabilities of the language, unexpected results can occur.

(bad code)
Example Language: C#
int Division(int x, int y){
return (x / y);
}

The method can be modified to raise, catch and handle the DivideByZeroException if the input value used as the denominator is zero.

(good code)

int SafeDivision(int x, int y){
try{
return (x / y);
}
catch (System.DivideByZeroException dbz){
System.Console.WriteLine("Division by zero attempted!");
return 0;
}
}
Example 3 References:
[REF-372] Microsoft. "Exceptions and Exception Handling (C# Programming Guide)". <https://msdn.microsoft.com/pl-pl/library/ms173160(v=vs.100).aspx>.
+ Observed Examples
ReferenceDescription
Invalid size value leads to divide by zero.
"Empty" content triggers divide by zero.
Height value of 0 triggers divide by zero.
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.730OWASP Top Ten 2004 Category A9 - Denial of Service
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.738CERT C Secure Coding Standard (2008) Chapter 5 - Integers (INT)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.739CERT C Secure Coding Standard (2008) Chapter 6 - Floating Point (FLP)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.848The CERT Oracle Secure Coding Standard for Java (2011) Chapter 5 - Numeric Types and Operations (NUM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.872CERT C++ Secure Coding Section 04 - Integers (INT)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.873CERT C++ Secure Coding Section 05 - Floating Point Arithmetic (FLP)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.998SFP Secondary Cluster: Glitch in Computation
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1137SEI CERT Oracle Secure Coding Standard for Java - Guidelines 03. Numeric Types and Operations (NUM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1158SEI CERT C Coding Standard - Guidelines 04. Integers (INT)
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
OWASP Top Ten 2004A9CWE More SpecificDenial of Service
CERT C Secure CodingFLP03-CDetect and handle floating point errors
CERT C Secure CodingINT33-CExactEnsure that division and remainder operations do not result in divide-by-zero errors
The CERT Oracle Secure Coding Standard for Java (2011)NUM02-JEnsure that division and modulo operations do not result in divide-by-zero errors
Software Fault PatternsSFP1Glitch in computation
+ Content History
Modifications
Modification DateModifierOrganization
2008-07-01Sean EidemillerCigital
added/updated demonstrative examples
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Common_Consequences, Description, Relationships, Other_Notes, Taxonomy_Mappings
2008-11-24CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-05-27CWE Content TeamMITRE
updated Demonstrative_Examples
2009-10-29CWE Content TeamMITRE
updated Other_Notes
2011-06-01CWE Content TeamMITRE
updated Common_Consequences, Relationships, Taxonomy_Mappings
2011-09-13CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2015-12-07CWE Content TeamMITRE
updated Relationships
2017-11-08CWE Content TeamMITRE
updated Demonstrative_Examples, Taxonomy_Mappings
2019-01-03CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings

CWE-415: Double Free

Weakness ID: 415
Abstraction: Variant
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The product calls free() twice on the same memory address, potentially leading to modification of unexpected memory locations.
+ Extended Description
When a program calls free() twice with the same argument, the program's memory management data structures become corrupted. This corruption can cause the program to crash or, in some circumstances, cause two later calls to malloc() to return the same pointer. If malloc() returns the same value twice and the program later gives the attacker control over the data that is written into this doubly-allocated memory, the program becomes vulnerable to a buffer overflow attack.
+ Alternate Terms
Double-free
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.666Operation on Resource in Wrong Phase of Lifetime
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.675Duplicate Operations on Resource
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.825Expired Pointer Dereference
PeerOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.123Write-what-where Condition
PeerOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.416Use After Free
CanFollowBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.364Signal Handler Race Condition
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.399Resource Management Errors
PeerOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.416Use After Free
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Architecture and Design
Implementation
+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

C (Undetermined Prevalence)

C++ (Undetermined Prevalence)

+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Integrity
Confidentiality
Availability

Technical Impact: Execute Unauthorized Code or Commands

Doubly freeing memory may result in a write-what-where condition, allowing an attacker to execute arbitrary code.
+ Likelihood Of Exploit
High
+ Demonstrative Examples

Example 1

The following code shows a simple example of a double free vulnerability.

(bad code)
Example Language:
char* ptr = (char*)malloc (SIZE);
...
if (abrt) {
free(ptr);
}
...
free(ptr);

Double free vulnerabilities have two common (and sometimes overlapping) causes:

  • Error conditions and other exceptional circumstances
  • Confusion over which part of the program is responsible for freeing the memory

Although some double free vulnerabilities are not much more complicated than the previous example, most are spread out across hundreds of lines of code or even different files. Programmers seem particularly susceptible to freeing global variables more than once.

Example 2

While contrived, this code should be exploitable on Linux distributions which do not ship with heap-chunk check summing turned on.

(bad code)
Example Language:
#include <stdio.h>
#include <unistd.h>
#define BUFSIZE1 512
#define BUFSIZE2 ((BUFSIZE1/2) - 8)

int main(int argc, char **argv) {
char *buf1R1;
char *buf2R1;
char *buf1R2;
buf1R1 = (char *) malloc(BUFSIZE2);
buf2R1 = (char *) malloc(BUFSIZE2);
free(buf1R1);
free(buf2R1);
buf1R2 = (char *) malloc(BUFSIZE1);
strncpy(buf1R2, argv[1], BUFSIZE1-1);
free(buf2R1);
free(buf1R2);
}
+ Observed Examples
ReferenceDescription
Chain: Signal handler contains too much functionality (CWE-828), introducing a race condition that leads to a double free (CWE-415).
Double free resultant from certain error conditions.
Double free resultant from certain error conditions.
Double free resultant from certain error conditions.
Double free from invalid ASN.1 encoding.
Double free from malformed GIF.
Double free from malformed GIF.
Double free from malformed compressed data.
+ Potential Mitigations

Phase: Architecture and Design

Choose a language that provides automatic memory management.

Phase: Implementation

Ensure that each allocation is freed only once. After freeing a chunk, set the pointer to NULL to ensure the pointer cannot be freed again. In complicated error conditions, be sure that clean-up routines respect the state of allocation properly. If the language is object oriented, ensure that object destructors delete each chunk of memory only once.

Phase: Implementation

Use a static analysis tool to find double free instances.
+ Affected Resources
  • Memory
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.3987PK - Code Quality
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.399Resource Management Errors
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.742CERT C Secure Coding Standard (2008) Chapter 9 - Memory Management (MEM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.876CERT C++ Secure Coding Section 08 - Memory Management (MEM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.969SFP Secondary Cluster: Faulty Memory Release
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1162SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)
+ Notes

Maintenance

It could be argued that Double Free would be most appropriately located as a child of "Use after Free", but "Use" and "Release" are considered to be distinct operations within vulnerability theory, therefore this is more accurately "Release of a Resource after Expiration or Release", which doesn't exist yet.

Relationship

This is usually resultant from another weakness, such as an unhandled error or race condition between threads. It could also be primary to weaknesses such as buffer overflows.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
PLOVERDFREE - Double-Free Vulnerability
7 Pernicious KingdomsDouble Free
CLASPDoubly freeing memory
CERT C Secure CodingMEM00-CAllocate and free memory in the same module, at the same level of abstraction
CERT C Secure CodingMEM01-CStore a new value in pointers immediately after free()
CERT C Secure CodingMEM30-CCWE More SpecificDo not access freed memory
CERT C Secure CodingMEM31-CFree dynamically allocated memory exactly once
Software Fault PatternsSFP12Faulty Memory Release
+ References
[REF-44] Michael Howard, David LeBlanc and John Viega. "24 Deadly Sins of Software Security". "Sin 8: C++ Catastrophes." Page 143. McGraw-Hill. 2010.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 7, "Double Frees", Page 379. 1st Edition. Addison Wesley. 2006.
+ Content History
Submissions
Submission DateSubmitterOrganization
PLOVER
Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Potential_Mitigations, Time_of_Introduction
2008-08-01KDM Analytics
added/updated white box definitions
2008-09-08CWE Content TeamMITRE
updated Applicable_Platforms, Common_Consequences, Description, Maintenance_Notes, Relationships, Other_Notes, Relationship_Notes, Taxonomy_Mappings
2008-11-24CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-05-27CWE Content TeamMITRE
updated Demonstrative_Examples
2009-10-29CWE Content TeamMITRE
updated Other_Notes
2010-09-27CWE Content TeamMITRE
updated Relationships
2010-12-13CWE Content TeamMITRE
updated Observed_Examples, Relationships
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2011-09-13CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated References, Relationships
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2015-12-07CWE Content TeamMITRE
updated Relationships
2017-11-08CWE Content TeamMITRE
updated Likelihood_of_Exploit, Relationships, Taxonomy_Mappings, White_Box_Definitions
2019-01-03CWE Content TeamMITRE
updated Relationships

CWE-590: Free of Memory not on the Heap

Weakness ID: 590
Abstraction: Variant
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
The application calls free() on a pointer to memory that was not allocated using associated heap allocation functions such as malloc(), calloc(), or realloc().
+ Extended Description
When free() is called on an invalid pointer, the program's memory management data structures may become corrupted. This corruption can cause the program to crash or, in some circumstances, an attacker may be able to cause free() to operate on controllable memory locations to modify critical program variables or execute code.
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.762Mismatched Memory Management Routines
CanPrecedeBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.123Write-what-where Condition
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.399Resource Management Errors
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Implementation
+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Integrity
Confidentiality
Availability

Technical Impact: Execute Unauthorized Code or Commands; Modify Memory

There is the potential for arbitrary code execution with privileges of the vulnerable program via a "write, what where" primitive. If pointers to memory which hold user information are freed, a malicious user will be able to write 4 bytes anywhere in memory.
+ Demonstrative Examples

Example 1

In this example, an array of record_t structs, bar, is allocated automatically on the stack as a local variable and the programmer attempts to call free() on the array. The consequences will vary based on the implementation of free(), but it will not succeed in deallocating the memory.

(bad code)
Example Language:
void foo(){
record_t bar[MAX_SIZE];

/* do something interesting with bar */

...
free(bar);
}

This example shows the array allocated globally, as part of the data segment of memory and the programmer attempts to call free() on the array.

(bad code)
Example Language:
record_t bar[MAX_SIZE]; //Global var
void foo(){

/* do something interesting with bar */
...
free(bar);
}

Instead, if the programmer wanted to dynamically manage the memory, malloc() or calloc() should have been used.

(good code)

void foo(){
record_t *bar = (record_t*)malloc(MAX_SIZE*sizeof(record_t));

/* do something interesting with bar */

...
free(bar);
}

Additionally, you can pass global variables to free() when they are pointers to dynamically allocated memory.

(good code)

record_t *bar; //Global var
void foo(){
bar = (record_t*)malloc(MAX_SIZE*sizeof(record_t));

/* do something interesting with bar */

...
free(bar);
}
+ Potential Mitigations

Phase: Implementation

Only free pointers that you have called malloc on previously. This is the recommended solution. Keep track of which pointers point at the beginning of valid chunks and free them only once.

Phase: Implementation

Before freeing a pointer, the programmer should make sure that the pointer was previously allocated on the heap and that the memory belongs to the programmer. Freeing an unallocated pointer will cause undefined behavior in the program.

Phase: Architecture and Design

Strategy: Libraries or Frameworks

Use a vetted library or framework that does not allow this weakness to occur or provides constructs that make this weakness easier to avoid.

For example, glibc in Linux provides protection against free of invalid pointers.

Phase: Architecture and Design

Use a language that provides abstractions for memory allocation and deallocation.

Phase: Testing

Use a tool that dynamically detects memory management problems, such as valgrind.
+ Affected Resources
  • Memory
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.742CERT C Secure Coding Standard (2008) Chapter 9 - Memory Management (MEM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.876CERT C++ Secure Coding Section 08 - Memory Management (MEM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.969SFP Secondary Cluster: Faulty Memory Release
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1162SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1172SEI CERT C Coding Standard - Guidelines 51. Microsoft Windows (WIN)
+ Notes

Maintenance

In C++, if the new operator was used to allocate the memory, it may be allocated with the malloc(), calloc() or realloc() family of functions in the implementation. Someone aware of this behavior might choose to map this problem to CWE-590 or to its parent, CWE-762, depending on their perspective.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CERT C Secure CodingMEM34-CExactOnly free memory allocated dynamically
CERT C Secure CodingWIN30-CImpreciseProperly pair allocation and deallocation functions
Software Fault PatternsSFP12Faulty Memory Release
+ References
[REF-480] "Valgrind". <http://valgrind.org/>.
+ Content History
Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Description, Relationships, Other_Notes
2008-11-24CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-01-12CWE Content TeamMITRE
updated Potential_Mitigations
2009-05-27CWE Content TeamMITRE
updated Common_Consequences, Demonstrative_Examples, Description, Maintenance_Notes, Name, Other_Notes, Potential_Mitigations, References, Relationships
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2011-09-13CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Relationships
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2014-02-18CWE Content TeamMITRE
updated Potential_Mitigations
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2017-11-08CWE Content TeamMITRE
updated Taxonomy_Mappings
2019-01-03CWE Content TeamMITRE
updated Relationships
Previous Entry Names
Change DatePrevious Entry Name
2008-04-11Improperly Freeing Heap Memory
2009-05-27Free of Invalid Pointer Not on the Heap
2009-10-29Free of Memory not on the Heap

CWE-686: Function Call With Incorrect Argument Type

Weakness ID: 686
Abstraction: Variant
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The software calls a function, procedure, or routine, but the caller specifies an argument that is the wrong data type, which may lead to resultant weaknesses.
+ Extended Description
This weakness is most likely to occur in loosely typed languages, or in strongly typed languages in which the types of variable arguments cannot be enforced at compilation time, or where there is implicit casting.
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.628Function Call with Incorrectly Specified Arguments
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.628Function Call with Incorrectly Specified Arguments
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Implementation
+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Other

Technical Impact: Quality Degradation

+ Potential Mitigations

Phase: Testing

Because this function call often produces incorrect behavior it will usually be detected during testing or normal operation of the software. During testing exercise all possible control paths will typically expose this weakness except in rare cases when the incorrect function call accidentally produces the correct results or if the provided argument type is very similar to the expected argument type.
+ Weakness Ordinalities
OrdinalityDescription
Primary
(where the weakness exists independent of other weaknesses)
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.736CERT C Secure Coding Standard (2008) Chapter 3 - Declarations and Initialization (DCL)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.739CERT C Secure Coding Standard (2008) Chapter 6 - Floating Point (FLP)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.741CERT C Secure Coding Standard (2008) Chapter 8 - Characters and Strings (STR)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.743CERT C Secure Coding Standard (2008) Chapter 10 - Input Output (FIO)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.748CERT C Secure Coding Standard (2008) Appendix - POSIX (POS)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.873CERT C++ Secure Coding Section 05 - Floating Point Arithmetic (FLP)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.875CERT C++ Secure Coding Section 07 - Characters and Strings (STR)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.998SFP Secondary Cluster: Glitch in Computation
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1157SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1163SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CERT C Secure CodingEXP37-CCWE More SpecificCall functions with the correct number and type of arguments
CERT C Secure CodingFIO47-CImpreciseUse valid format strings
CERT C Secure CodingPOS34-CDo not call putenv() with a pointer to an automatic variable as the argument
CERT C Secure CodingSTR37-CArguments to character handling functions must be representable as an unsigned char
Software Fault PatternsSFP1Glitch in computation
+ Content History
Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Potential_Mitigations
2008-09-08CWE Content TeamMITRE
updated Description, Relationships, Other_Notes, Weakness_Ordinalities
2008-11-24CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-05-27CWE Content TeamMITRE
updated Description
2009-10-29CWE Content TeamMITRE
updated Other_Notes, Potential_Mitigations
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2011-06-27CWE Content TeamMITRE
updated Common_Consequences
2011-09-13CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Relationships
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2017-11-08CWE Content TeamMITRE
updated Taxonomy_Mappings
2019-01-03CWE Content TeamMITRE
updated Relationships

CWE-685: Function Call With Incorrect Number of Arguments

Weakness ID: 685
Abstraction: Variant
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The software calls a function, procedure, or routine, but the caller specifies too many arguments, or too few arguments, which may lead to undefined behavior and resultant weaknesses.
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.628Function Call with Incorrectly Specified Arguments
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.628Function Call with Incorrectly Specified Arguments
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
ImplementationThis problem typically occurs when the programmer makes a typo, or copy and paste errors.
+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

C (Undetermined Prevalence)

Perl (Undetermined Prevalence)

+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Other

Technical Impact: Quality Degradation

+ Potential Mitigations

Phase: Testing

Because this function call often produces incorrect behavior it will usually be detected during testing or normal operation of the software. During testing exercise all possible control paths will typically expose this weakness except in rare cases when the incorrect function call accidentally produces the correct results or if the provided argument type is very similar to the expected argument type.
+ Weakness Ordinalities
OrdinalityDescription
Primary
(where the weakness exists independent of other weaknesses)
+ Detection Methods

Other

While this weakness might be caught by the compiler in some languages, it can occur more frequently in cases in which the called function accepts variable numbers of arguments, such as format strings in C. It also can occur in languages or environments that do not require that functions always be called with the correct number of arguments, such as Perl.
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.998SFP Secondary Cluster: Glitch in Computation
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1157SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1163SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
Software Fault PatternsSFP1Glitch in computation
CERT C Secure CodingEXP37-CCWE More SpecificCall functions with the correct number and type of arguments
CERT C Secure CodingFIO47-CImpreciseUse valid format strings
+ Content History
Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Potential_Mitigations
2008-09-08CWE Content TeamMITRE
updated Applicable_Platforms, Detection_Factors, Relationships, Other_Notes, Weakness_Ordinalities
2009-05-27CWE Content TeamMITRE
updated Description
2009-10-29CWE Content TeamMITRE
updated Modes_of_Introduction, Other_Notes, Potential_Mitigations
2010-02-16CWE Content TeamMITRE
updated Detection_Factors
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2011-06-27CWE Content TeamMITRE
updated Common_Consequences
2012-05-11CWE Content TeamMITRE
updated Relationships
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2017-11-08CWE Content TeamMITRE
updated Taxonomy_Mappings
2019-01-03CWE Content TeamMITRE
updated Relationships

CWE-628: Function Call with Incorrectly Specified Arguments

Weakness ID: 628
Abstraction: Base
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The product calls a function, procedure, or routine with arguments that are not correctly specified, leading to always-incorrect behavior and resultant weaknesses.
+ Extended Description

There are multiple ways in which this weakness can be introduced, including:

  • the wrong variable or reference;
  • an incorrect number of arguments;
  • incorrect order of arguments;
  • wrong type of arguments; or
  • wrong value.
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.573Improper Following of Specification by Caller
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.683Function Call With Incorrect Order of Arguments
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.685Function Call With Incorrect Number of Arguments
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.686Function Call With Incorrect Argument Type
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.687Function Call With Incorrectly Specified Argument Value
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.688Function Call With Incorrect Variable or Reference as Argument
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.559Often Misused: Arguments and Parameters
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.683Function Call With Incorrect Order of Arguments
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.685Function Call With Incorrect Number of Arguments
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.686Function Call With Incorrect Argument Type
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.687Function Call With Incorrectly Specified Argument Value
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.688Function Call With Incorrect Variable or Reference as Argument
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Implementation
+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Language-Independent (Undetermined Prevalence)

+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Other
Access Control

Technical Impact: Quality Degradation; Gain Privileges or Assume Identity

This weakness can cause unintended behavior and can lead to additional weaknesses such as allowing an attacker to gain unintended access to system resources.
+ Demonstrative Examples

Example 1

The following PHP method authenticates a user given a username/password combination but is called with the parameters in reverse order.

(bad code)
Example Language: PHP
function authenticate($username, $password) {

// authenticate user
...
}

authenticate($_POST['password'], $_POST['username']);

Example 2

This Perl code intends to record whether a user authenticated successfully or not, and to exit if the user fails to authenticate. However, when it calls ReportAuth(), the third argument is specified as 0 instead of 1, so it does not exit.

(bad code)
Example Language: Perl
sub ReportAuth {
my ($username, $result, $fatal) = @_;
PrintLog("auth: username=%s, result=%d", $username, $result);
if (($result ne "success") && $fatal) {
die "Failed!\n";
}
}

sub PrivilegedFunc
{
my $result = CheckAuth($username);
ReportAuth($username, $result, 0);
DoReallyImportantStuff();
}

Example 3

In the following Java snippet, the accessGranted() method is accidentally called with the static ADMIN_ROLES array rather than the user roles.

(bad code)
Example Language: Java
private static final String[] ADMIN_ROLES = ...;
public boolean void accessGranted(String resource, String user) {
String[] userRoles = getUserRoles(user);
return accessGranted(resource, ADMIN_ROLES);
}

private boolean void accessGranted(String resource, String[] userRoles) {

// grant or deny access based on user roles
...
}
+ Observed Examples
ReferenceDescription
The method calls the functions with the wrong argument order, which allows remote attackers to bypass intended access restrictions.
+ Potential Mitigations

Phase: Build and Compilation

Once found, these issues are easy to fix. Use code inspection tools and relevant compiler features to identify potential violations. Pay special attention to code that is not likely to be exercised heavily during QA.

Phase: Architecture and Design

Make sure your API's are stable before you use them in production code.
+ Weakness Ordinalities
OrdinalityDescription
Primary
This is usually primary to other weaknesses, but it can be resultant if the function's API or function prototype changes. (where the weakness is a quality issue that might indirectly make it easier to introduce security-relevant weaknesses or make them more difficult to detect)
+ Detection Methods

Other

Since these bugs typically introduce obviously incorrect behavior, they are found quickly, unless they occur in rarely-tested code paths. Managing the correct number of arguments can be made more difficult in cases where format strings are used, or when variable numbers of arguments are supported.
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.736CERT C Secure Coding Standard (2008) Chapter 3 - Declarations and Initialization (DCL)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.737CERT C Secure Coding Standard (2008) Chapter 4 - Expressions (EXP)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.742CERT C Secure Coding Standard (2008) Chapter 9 - Memory Management (MEM)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.998SFP Secondary Cluster: Glitch in Computation
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1157SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CERT C Secure CodingDCL10-CMaintain the contract between the writer and caller of variadic functions
CERT C Secure CodingEXP37-CCWE More AbstractCall functions with the correct number and type of arguments
SEI CERT Perl Coding StandardDCL00-PLCWE More AbstractDo not use subroutine prototypes
SEI CERT Perl Coding StandardEXP33-PLImpreciseDo not invoke a function in a context for which it is not defined
+ Content History
Modifications
Modification DateModifierOrganization
2008-09-08CWE Content TeamMITRE
updated Description, Relationships, Other_Notes, Weakness_Ordinalities
2008-11-24CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-10-29CWE Content TeamMITRE
updated Detection_Factors, Other_Notes, Weakness_Ordinalities
2010-02-16CWE Content TeamMITRE
updated Detection_Factors
2010-06-21CWE Content TeamMITRE
updated Description
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2011-06-27CWE Content TeamMITRE
updated Common_Consequences
2012-05-11CWE Content TeamMITRE
updated Common_Consequences, Demonstrative_Examples, Relationships
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2014-07-30CWE Content TeamMITRE
updated Relationships
2017-11-08CWE Content TeamMITRE
updated Applicable_Platforms, Taxonomy_Mappings
2019-01-03CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
Previous Entry Names
Change DatePrevious Entry Name
2008-04-11Incorrectly Specified Arguments

CWE-122: Heap-based Buffer Overflow

Weakness ID: 122
Abstraction: Variant
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
A heap overflow condition is a buffer overflow, where the buffer that can be overwritten is allocated in the heap portion of memory, generally meaning that the buffer was allocated using a routine such as malloc().
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.787Out-of-bounds Write
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.788Access of Memory Location After End of Buffer
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.787Out-of-bounds Write
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.788Access of Memory Location After End of Buffer
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Architecture and Design
Implementation
+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

C (Undetermined Prevalence)

C++ (Undetermined Prevalence)

+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Availability

Technical Impact: DoS: Crash, Exit, or Restart; DoS: Resource Consumption (CPU); DoS: Resource Consumption (Memory)

Buffer overflows generally lead to crashes. Other attacks leading to lack of availability are possible, including putting the program into an infinite loop.
Integrity
Confidentiality
Availability
Access Control

Technical Impact: Execute Unauthorized Code or Commands; Bypass Protection Mechanism; Modify Memory

Buffer overflows often can be used to execute arbitrary code, which is usually outside the scope of a program's implicit security policy. Besides important user data, heap-based overflows can be used to overwrite function pointers that may be living in memory, pointing it to the attacker's code. Even in applications that do not explicitly use function pointers, the run-time will usually leave many in memory. For example, object methods in C++ are generally implemented using function pointers. Even in C programs, there is often a global offset table used by the underlying runtime.
Integrity
Confidentiality
Availability
Access Control
Other

Technical Impact: Execute Unauthorized Code or Commands; Bypass Protection Mechanism; Other

When the consequence is arbitrary code execution, this can often be used to subvert any other security service.
+ Likelihood Of Exploit
High
+ Demonstrative Examples

Example 1

While buffer overflow examples can be rather complex, it is possible to have very simple, yet still exploitable, heap-based buffer overflows:

(bad code)
Example Language:
#define BUFSIZE 256
int main(int argc, char **argv) {
char *buf;
buf = (char *)malloc(sizeof(char)*BUFSIZE);
strcpy(buf, argv[1]);
}

The buffer is allocated heap memory with a fixed size, but there is no guarantee the string in argv[1] will not exceed this size and cause an overflow.

Example 2

This example applies an encoding procedure to an input string and stores it into a buffer.

(bad code)
Example Language:
char * copy_input(char *user_supplied_string){
int i, dst_index;
char *dst_buf = (char*)malloc(4*sizeof(char) * MAX_SIZE);
if ( MAX_SIZE <= strlen(user_supplied_string) ){
die("user string too long, die evil hacker!");
}
dst_index = 0;
for ( i = 0; i < strlen(user_supplied_string); i++ ){
if( '&' == user_supplied_string[i] ){
dst_buf[dst_index++] = '&';
dst_buf[dst_index++] = 'a';
dst_buf[dst_index++] = 'm';
dst_buf[dst_index++] = 'p';
dst_buf[dst_index++] = ';';
}
else if ('<' == user_supplied_string[i] ){

/* encode to &lt; */
}
else dst_buf[dst_index++] = user_supplied_string[i];
}
return dst_buf;
}

The programmer attempts to encode the ampersand character in the user-controlled string, however the length of the string is validated before the encoding procedure is applied. Furthermore, the programmer assumes encoding expansion will only expand a given character by a factor of 4, while the encoding of the ampersand expands by 5. As a result, when the encoding procedure expands the string it is possible to overflow the destination buffer if the attacker provides a string of many ampersands.

+ Observed Examples
ReferenceDescription
Chain: integer signedness error (CWE-195) passes signed comparison, leading to heap overflow (CWE-122)
Chain: product does not handle when an input string is not NULL terminated (CWE-170), leading to buffer over-read (CWE-125) or heap-based buffer overflow (CWE-122).
+ Potential Mitigations
Pre-design: Use a language or compiler that performs automatic bounds checking.

Phase: Architecture and Design

Use an abstraction library to abstract away risky APIs. Not a complete solution.

Phase: Build and Compilation

Pre-design through Build: Canary style bounds checking, library changes which ensure the validity of chunk data, and other such fixes are possible, but should not be relied upon.

Phase: Implementation

Implement and perform bounds checking on input.

Phase: Implementation

Strategy: Libraries or Frameworks

Do not use dangerous functions such as gets. Look for their safe equivalent, which checks for the boundary.

Phase: Operation

Use OS-level preventative functionality. This is not a complete solution, but it provides some defense in depth.
+ Weakness Ordinalities
OrdinalityDescription
Primary
(where the weakness exists independent of other weaknesses)
+ Affected Resources
  • Memory
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.970SFP Secondary Cluster: Faulty Buffer Access
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1161SEI CERT C Coding Standard - Guidelines 07. Characters and Strings (STR)
+ Notes

Relationship

Heap-based buffer overflows are usually just as dangerous as stack-based buffer overflows.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CLASPHeap overflow
Software Fault PatternsSFP8Faulty Buffer Access
CERT C Secure CodingSTR31-CCWE More SpecificGuarantee that storage for strings has sufficient space for character data and the null terminator
+ References
[REF-7] Michael Howard and David LeBlanc. "Writing Secure Code". Chapter 5, "Heap Overruns" Page 138. 2nd Edition. Microsoft Press. 2002-12-04. <https://www.microsoftpressstore.com/store/writing-secure-code-9780735617223>.
[REF-44] Michael Howard, David LeBlanc and John Viega. "24 Deadly Sins of Software Security". "Sin 5: Buffer Overruns." Page 89. McGraw-Hill. 2010.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 3, "Nonexecutable Stack", Page 76. 1st Edition. Addison Wesley. 2006.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 5, "Protection Mechanisms", Page 189. 1st Edition. Addison Wesley. 2006.
+ Content History
Submissions
Submission DateSubmitterOrganization
CLASP
Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Potential_Mitigations, Time_of_Introduction
2008-08-01KDM Analytics
added/updated white box definitions
2008-09-08CWE Content TeamMITRE
updated Applicable_Platforms, Common_Consequences, Relationships, Other_Notes, Taxonomy_Mappings, Weakness_Ordinalities
2008-11-24CWE Content TeamMITRE
updated Common_Consequences, Other_Notes, Relationship_Notes
2009-01-12CWE Content TeamMITRE
updated Common_Consequences, Relationships
2009-10-29CWE Content TeamMITRE
updated Relationships
2010-02-16CWE Content TeamMITRE
updated References
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2012-05-11CWE Content TeamMITRE
updated Demonstrative_Examples, References, Relationships
2012-10-30CWE Content TeamMITRE
updated Demonstrative_Examples
2013-02-21CWE Content TeamMITRE
updated Demonstrative_Examples, Potential_Mitigations
2014-06-23CWE Content TeamMITRE
updated Observed_Examples
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2017-11-08CWE Content TeamMITRE
updated Causal_Nature, Likelihood_of_Exploit, Observed_Examples, References, Relationships, Taxonomy_Mappings, White_Box_Definitions
2018-03-27CWE Content TeamMITRE
updated References
2019-01-03CWE Content TeamMITRE
updated Relationships

CWE-273: Improper Check for Dropped Privileges

Weakness ID: 273
Abstraction: Base
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
The software attempts to drop privileges but does not check or incorrectly checks to see if the drop succeeded.
+ Extended Description
If the drop fails, the software will continue to run with the raised privileges, which might provide additional access to unprivileged users.
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.271Privilege Dropping / Lowering Errors
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.754Improper Check for Unusual or Exceptional Conditions
PeerOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.252Unchecked Return Value
+ Relevant to the view "Architectural Concepts" (CWE-1008)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1011Authorize Actors
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.271Privilege Dropping / Lowering Errors
+ Background Details
In Windows based environments that have access control, impersonation is used so that access checks can be performed on a client identity by a server with higher privileges. By impersonating the client, the server is restricted to client-level security -- although in different threads it may have much higher privileges.
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Architecture and Design
Implementation

REALIZATION: This weakness is caused during implementation of an architectural security tactic.

Operation

This issue is likely to occur in restrictive environments in which the operating system or application provides fine-grained control over privilege management.

+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Language-Independent (Undetermined Prevalence)

+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Access Control

Technical Impact: Gain Privileges or Assume Identity

If privileges are not dropped, neither are access rights of the user. Often these rights can be prevented from being dropped.
Access Control
Non-Repudiation

Technical Impact: Gain Privileges or Assume Identity; Hide Activities

If privileges are not dropped, in some cases the system may record actions as the user which is being impersonated rather than the impersonator.
+ Likelihood Of Exploit
Medium
+ Demonstrative Examples

Example 1

This code attempts to take on the privileges of a user before creating a file, thus avoiding performing the action with unnecessarily high privileges:

(bad code)
Example Language: C++
bool DoSecureStuff(HANDLE hPipe) {
bool fDataWritten = false;
ImpersonateNamedPipeClient(hPipe);
HANDLE hFile = CreateFile(...);
/../
RevertToSelf()
/../
}

The call to ImpersonateNamedPipeClient may fail, but the return value is not checked. If the call fails, the code may execute with higher privileges than intended. In this case, an attacker could exploit this behavior to write a file to a location that the attacker does not have access to.

+ Observed Examples
ReferenceDescription
Program does not check return value when invoking functions to drop privileges, which could leave users with higher privileges than expected by forcing those functions to fail.
Program does not check return value when invoking functions to drop privileges, which could leave users with higher privileges than expected by forcing those functions to fail.
+ Potential Mitigations

Phase: Architecture and Design

Strategy: Separation of Privilege

Compartmentalize the system to have "safe" areas where trust boundaries can be unambiguously drawn. Do not allow sensitive data to go outside of the trust boundary and always be careful when interfacing with a compartment outside of the safe area.

Ensure that appropriate compartmentalization is built into the system design and that the compartmentalization serves to allow for and further reinforce privilege separation functionality. Architects and designers should rely on the principle of least privilege to decide when it is appropriate to use and to drop system privileges.

Phase: Implementation

Check the results of all functions that return a value and verify that the value is expected.

Effectiveness: High

Note: Checking the return value of the function will typically be sufficient, however beware of race conditions (CWE-362) in a concurrent environment.

Phase: Implementation

In Windows, make sure that the process token has the SeImpersonatePrivilege(Microsoft Server 2003). Code that relies on impersonation for security must ensure that the impersonation succeeded, i.e., that a proper privilege demotion happened.
+ Weakness Ordinalities
OrdinalityDescription
Primary
(where the weakness exists independent of other weaknesses)
+ Affected Resources
  • System Process
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.748CERT C Secure Coding Standard (2008) Appendix - POSIX (POS)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.962SFP Secondary Cluster: Unchecked Status Condition
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1171SEI CERT C Coding Standard - Guidelines 50. POSIX (POS)
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CLASPFailure to check whether privileges were dropped successfully
CERT C Secure CodingPOS37-CExactEnsure that privilege relinquishment is successful
Software Fault PatternsSFP4Unchecked Status Condition
+ Content History
Submissions
Submission DateSubmitterOrganization
CLASP
Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Common_Consequences, Description, Modes_of_Introduction, Relationships, Other_Notes, Taxonomy_Mappings, Weakness_Ordinalities
2008-11-24CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-03-10CWE Content TeamMITRE
updated Description, Name, Relationships
2009-05-27CWE Content TeamMITRE
updated Name
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2012-05-11CWE Content TeamMITRE
updated Observed_Examples, Relationships
2012-10-30CWE Content TeamMITRE
updated Demonstrative_Examples, Potential_Mitigations
2014-06-23CWE Content TeamMITRE
updated Background_Details, Other_Notes, Potential_Mitigations
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2017-11-08CWE Content TeamMITRE
updated Applicable_Platforms, Causal_Nature, Demonstrative_Examples, Modes_of_Introduction, Relationships, Taxonomy_Mappings
2019-01-03CWE Content TeamMITRE
updated Relationships
Previous Entry Names
Change DatePrevious Entry Name
2009-03-10Failure to Check Whether Privileges Were Dropped Successfully
2009-05-27Improper Check for Successfully Dropped Privileges

CWE-664: Improper Control of a Resource Through its Lifetime

Weakness ID: 664
Abstraction: Class
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The software does not maintain or incorrectly maintains control over a resource throughout its lifetime of creation, use, and release.
+ Extended Description

Resources often have explicit instructions on how to be created, used and destroyed. When software does not follow these instructions, it can lead to unexpected behaviors and potentially exploitable states.

Even without explicit instructions, various principles are expected to be adhered to, such as "Do not use an object until after its creation is complete," or "do not use an object after it has been slated for destruction."

+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).1000Research Concepts
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.216Containment Errors (Container Errors)
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.221Information Loss or Omission
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.284Improper Access Control
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.372Incomplete Internal State Distinction
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.400Uncontrolled Resource Consumption
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.404Improper Resource Shutdown or Release
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.405Asymmetric Resource Consumption (Amplification)
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.410Insufficient Resource Pool
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.471Modification of Assumed-Immutable Data (MAID)
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.487Reliance on Package-level Scope
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.488Exposure of Data Element to Wrong Session
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.495Private Data Structure Returned From A Public Method
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.496Public Data Assigned to Private Array-Typed Field
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.498Cloneable Class Containing Sensitive Information
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.499Serializable Class Containing Sensitive Data
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.501Trust Boundary Violation
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.580clone() Method Without super.clone()
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.610Externally Controlled Reference to a Resource in Another Sphere
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.662Improper Synchronization
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.665Improper Initialization
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.666Operation on Resource in Wrong Phase of Lifetime
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.668Exposure of Resource to Wrong Sphere
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.669Incorrect Resource Transfer Between Spheres
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.673External Influence of Sphere Definition
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.704Incorrect Type Conversion or Cast
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.706Use of Incorrectly-Resolved Name or Reference
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.749Exposed Dangerous Method or Function
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.908Use of Uninitialized Resource
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.911Improper Update of Reference Count
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.913Improper Control of Dynamically-Managed Code Resources
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.922Insecure Storage of Sensitive Information
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.610Externally Controlled Reference to a Resource in Another Sphere
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.665Improper Initialization
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.704Incorrect Type Conversion or Cast
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.913Improper Control of Dynamically-Managed Code Resources
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.3617PK - Time and State
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.704Incorrect Type Conversion or Cast
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.706Use of Incorrectly-Resolved Name or Reference
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.922Insecure Storage of Sensitive Information
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Implementation
+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Other

Technical Impact: Other

+ Potential Mitigations

Phase: Testing

Use Static analysis tools to check for unreleased resources.
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.3617PK - Time and State
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.984SFP Secondary Cluster: Life Cycle
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1163SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)
+ Notes

Maintenance

More work is needed on this node and its children. There are perspective/layering issues; for example, one breakdown is based on lifecycle phase (CWE-404, CWE-665), while other children are independent of lifecycle, such as CWE-400. Others do not specify as many bases or variants, such as CWE-704, which primarily covers numbers at this stage.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CERT C Secure CodingFIO39-CCWE More AbstractDo not alternately input and output from a stream without an intervening flush or positioning call
+ Content History
Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Potential_Mitigations, Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Description, Maintenance_Notes, Relationships, Type
2009-03-10CWE Content TeamMITRE
updated Related_Attack_Patterns
2009-05-27CWE Content TeamMITRE
updated Description, Name, Relationships
2009-07-27CWE Content TeamMITRE
updated Relationships
2010-02-16CWE Content TeamMITRE
updated Relationships
2010-12-13CWE Content TeamMITRE
updated Description, Relationships
2011-03-29CWE Content TeamMITRE
updated Relationships
2011-06-01CWE Content TeamMITRE
updated Common_Consequences, Relationships
2012-05-11CWE Content TeamMITRE
updated Related_Attack_Patterns, Relationships
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2013-02-21CWE Content TeamMITRE
updated Relationships
2013-07-17CWE Content TeamMITRE
updated Relationships
2014-07-30CWE Content TeamMITRE
updated Relationships
2015-12-07CWE Content TeamMITRE
updated Relationships
2017-01-19CWE Content TeamMITRE
updated Relationships
2017-11-08CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2018-03-27CWE Content TeamMITRE
updated Relationships
2019-01-03CWE Content TeamMITRE
updated Relationships
Previous Entry Names
Change DatePrevious Entry Name
2009-05-27Insufficient Control of a Resource Through its Lifetime

CWE-241: Improper Handling of Unexpected Data Type

Weakness ID: 241
Abstraction: Base
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The software does not handle or incorrectly handles when a particular element is not the expected type, e.g. it expects a digit (0-9) but is provided with a letter (A-Z).
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.228Improper Handling of Syntactically Invalid Structure
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.228Improper Handling of Syntactically Invalid Structure
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Architecture and Design
Implementation
+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Language-Independent (Undetermined Prevalence)

+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Integrity
Other

Technical Impact: Varies by Context; Unexpected State

+ Observed Examples
ReferenceDescription
FTP server crash via PORT command with non-numeric character.
Anti-virus product has assert error when line length is non-numeric.
+ Potential Mitigations

Phase: Implementation

Strategy: Input Validation

Assume all input is malicious. Use an "accept known good" input validation strategy, i.e., use a whitelist of acceptable inputs that strictly conform to specifications. Reject any input that does not strictly conform to specifications, or transform it into something that does.

When performing input validation, consider all potentially relevant properties, including length, type of input, the full range of acceptable values, missing or extra inputs, syntax, consistency across related fields, and conformance to business rules. As an example of business rule logic, "boat" may be syntactically valid because it only contains alphanumeric characters, but it is not valid if the input is only expected to contain colors such as "red" or "blue."

Do not rely exclusively on looking for malicious or malformed inputs (i.e., do not rely on a blacklist). A blacklist is likely to miss at least one undesirable input, especially if the code's environment changes. This can give attackers enough room to bypass the intended validation. However, blacklists can be useful for detecting potential attacks or determining which inputs are so malformed that they should be rejected outright.

Phase: Implementation

Strategy: Input Validation

Inputs should be decoded and canonicalized to the application's current internal representation before being validated (CWE-180). Make sure that the application does not decode the same input twice (CWE-174). Such errors could be used to bypass whitelist validation schemes by introducing dangerous inputs after they have been checked.
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.743CERT C Secure Coding Standard (2008) Chapter 10 - Input Output (FIO)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.877CERT C++ Secure Coding Section 09 - Input Output (FIO)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.993SFP Secondary Cluster: Incorrect Input Handling
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1163SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)
+ Notes

Research Gap

Probably under-studied.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
PLOVERWrong Data Type
CERT C Secure CodingFIO37-CCWE More AbstractDo not assume that fgets() or fgetws() returns a nonempty string when successful
+ Content History
Submissions
Submission DateSubmitterOrganization
PLOVER
Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Potential_Mitigations, Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2008-11-24CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-03-10CWE Content TeamMITRE
updated Description, Name
2009-07-27CWE Content TeamMITRE
updated Potential_Mitigations
2009-10-29CWE Content TeamMITRE
updated Description
2011-03-29CWE Content TeamMITRE
updated Potential_Mitigations
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2011-06-27CWE Content TeamMITRE
updated Common_Consequences
2011-09-13CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Relationships
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2014-07-30CWE Content TeamMITRE
updated Relationships
2017-11-08CWE Content TeamMITRE
updated Applicable_Platforms, Taxonomy_Mappings
2019-01-03CWE Content TeamMITRE
updated Relationships
Previous Entry Names
Change DatePrevious Entry Name
2008-04-11Wrong Data Type
2009-03-10Failure to Handle Wrong Data Type

CWE-67: Improper Handling of Windows Device Names

Weakness ID: 67
Abstraction: Variant
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
The software constructs pathnames from user input, but it does not handle or incorrectly handles a pathname containing a Windows device name such as AUX or CON. This typically leads to denial of service or an information exposure when the application attempts to process the pathname as a regular file.
+ Extended Description
Not properly handling virtual filenames (e.g. AUX, CON, PRN, COM1, LPT1) can result in different types of vulnerabilities. In some cases an attacker can request a device via injection of a virtual filename in a URL, which may cause an error that leads to a denial of service or an error page that reveals sensitive information. A software system that allows device names to bypass filtering runs the risk of an attacker injecting malicious code in a file with the name of a device.
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.66Improper Handling of File Names that Identify Virtual Resources
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.66Improper Handling of File Names that Identify Virtual Resources
+ Background Details
Historically, there was a bug in the Windows operating system that caused a blue screen of death. Even after that issue was fixed DOS device names continue to be a factor.
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Architecture and Design
Implementation
Operation
+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Language-Independent (Undetermined Prevalence)

Operating Systems

Class: Windows (Undetermined Prevalence)

+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Availability
Confidentiality
Other

Technical Impact: DoS: Crash, Exit, or Restart; Read Application Data; Other

+ Likelihood Of Exploit
High
+ Observed Examples
ReferenceDescription
Server allows remote attackers to cause a denial of service via a series of requests to .JSP files that contain an MS-DOS device name.
Server allows remote attackers to cause a denial of service via an HTTP request for an MS-DOS device name.
Product allows remote attackers to use MS-DOS device names in HTTP requests to cause a denial of service or obtain the physical path of the server.
Server allows remote attackers to cause a denial of service via a URL that contains an MS-DOS device name.
Server allows a remote attacker to create a denial of service via a URL request which includes a MS-DOS device name.
Microsoft Windows 9x operating systems allow an attacker to cause a denial of service via a pathname that includes file device names, aka the "DOS Device in Path Name" vulnerability.
Server allows remote attackers to determine the physical path of the server via a URL containing MS-DOS device names.
Product does not properly handle files whose names contain reserved MS-DOS device names, which can allow malicious code to bypass detection when it is installed, copied, or executed.
Server allows remote attackers to cause a denial of service (application crash) via a URL with a filename containing a .cgi extension and an MS-DOS device name.
+ Potential Mitigations

Phase: Implementation

Be familiar with the device names in the operating system where your system is deployed. Check input for these device names.
+ Weakness Ordinalities
OrdinalityDescription
Resultant
(where the weakness is typically related to the presence of some other weaknesses)
+ Affected Resources
  • File or Directory
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.743CERT C Secure Coding Standard (2008) Chapter 10 - Input Output (FIO)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.857The CERT Oracle Secure Coding Standard for Java (2011) Chapter 14 - Input Output (FIO)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.877CERT C++ Secure Coding Section 09 - Input Output (FIO)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.981SFP Secondary Cluster: Path Traversal
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1147SEI CERT Oracle Secure Coding Standard for Java - Guidelines 13. Input Output (FIO)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1163SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
PLOVERWindows MS-DOS device names
CERT C Secure CodingFIO32-CCWE More SpecificDo not perform operations on devices that are only appropriate for files
The CERT Oracle Secure Coding Standard for Java (2011)FIO00-JDo not operate on files in shared directories
Software Fault PatternsSFP16Path Traversal
+ References
[REF-7] Michael Howard and David LeBlanc. "Writing Secure Code". 2nd Edition. Microsoft Press. 2002-12-04. <https://www.microsoftpressstore.com/store/writing-secure-code-9780735617223>.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 11, "Device Files", Page 666. 1st Edition. Addison Wesley. 2006.
+ Content History
Submissions
Submission DateSubmitterOrganization
PLOVER
Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Applicable_Platforms, Relationships, Other_Notes, Taxonomy_Mappings, Weakness_Ordinalities
2008-10-14CWE Content TeamMITRE
updated Description
2008-11-24CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-03-10CWE Content TeamMITRE
updated Description, Name
2009-10-29CWE Content TeamMITRE
updated Background_Details, Other_Notes
2010-09-27CWE Content TeamMITRE
updated Description
2011-03-29CWE Content TeamMITRE
updated Description
2011-06-01CWE Content TeamMITRE
updated Common_Consequences, Relationships, Taxonomy_Mappings
2011-09-13CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Observed_Examples, References, Relationships, Taxonomy_Mappings
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2017-11-08CWE Content TeamMITRE
updated Affected_Resources, Applicable_Platforms, Causal_Nature, Likelihood_of_Exploit, References, Relationships, Taxonomy_Mappings
2018-03-27CWE Content TeamMITRE
updated References
2019-01-03CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
Previous Entry Names
Change DatePrevious Entry Name
2008-04-11Windows MS-DOS Device Names
2009-03-10Failure to Handle Windows Device Names

CWE-20: Improper Input Validation

Weakness ID: 20
Abstraction: Class
Structure: Simple
Status: Usable
Presentation Filter:
+ Description
The product does not validate or incorrectly validates input that can affect the control flow or data flow of a program.
+ Extended Description
When software does not validate input properly, an attacker is able to craft the input in a form that is not expected by the rest of the application. This will lead to parts of the system receiving unintended input, which may result in altered control flow, arbitrary control of a resource, or arbitrary code execution.
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.693Protection Mechanism Failure
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.114Process Control
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.129Improper Validation of Array Index
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.606Unchecked Input for Loop Condition
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.622Improper Validation of Function Hook Arguments
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.626Null Byte Interaction Error (Poison Null Byte)
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.781Improper Address Validation in IOCTL with METHOD_NEITHER I/O Control Code
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.789Uncontrolled Memory Allocation
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.1173Improper Use of Validation Framework
CanPrecedeClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.22Improper Limitation of a Pathname to a Restricted Directory ('Path Traversal')
CanPrecedeBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.41Improper Resolution of Path Equivalence
CanPrecedeClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.74Improper Neutralization of Special Elements in Output Used by a Downstream Component ('Injection')
CanPrecedeClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.119Improper Restriction of Operations within the Bounds of a Memory Buffer
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.693Protection Mechanism Failure
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.74Improper Neutralization of Special Elements in Output Used by a Downstream Component ('Injection')
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.129Improper Validation of Array Index
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.601URL Redirection to Untrusted Site ('Open Redirect')
+ Relevant to the view "Architectural Concepts" (CWE-1008)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1019Validate Inputs
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.19Data Processing Errors
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.73External Control of File Name or Path
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.74Improper Neutralization of Special Elements in Output Used by a Downstream Component ('Injection')
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.103Struts: Incomplete validate() Method Definition
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.104Struts: Form Bean Does Not Extend Validation Class
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.107Struts: Unused Validation Form
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.110Struts: Validator Without Form Field
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.111Direct Use of Unsafe JNI
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.114Process Control
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.129Improper Validation of Array Index
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.179Incorrect Behavior Order: Early Validation
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.180Incorrect Behavior Order: Validate Before Canonicalize
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.181Incorrect Behavior Order: Validate Before Filter
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.470Use of Externally-Controlled Input to Select Classes or Code ('Unsafe Reflection')
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.601URL Redirection to Untrusted Site ('Open Redirect')
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.606Unchecked Input for Loop Condition
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.608Struts: Non-private Field in ActionForm Class
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.622Improper Validation of Function Hook Arguments
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.626Null Byte Interaction Error (Poison Null Byte)
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.781Improper Address Validation in IOCTL with METHOD_NEITHER I/O Control Code
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.785Use of Path Manipulation Function without Maximum-sized Buffer
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.1173Improper Use of Validation Framework
+ Relevant to the view "Seven Pernicious Kingdoms" (CWE-700)
NatureTypeIDName
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.15External Control of System or Configuration Setting
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.73External Control of File Name or Path
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.102Struts: Duplicate Validation Forms
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.103Struts: Incomplete validate() Method Definition
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.104Struts: Form Bean Does Not Extend Validation Class
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.105Struts: Form Field Without Validator
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.106Struts: Plug-in Framework not in Use
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.107Struts: Unused Validation Form
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.108Struts: Unvalidated Action Form
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.109Struts: Validator Turned Off
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.110Struts: Validator Without Form Field
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.111Direct Use of Unsafe JNI
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.112Missing XML Validation
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.113Improper Neutralization of CRLF Sequences in HTTP Headers ('HTTP Response Splitting')
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.114Process Control
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.117Improper Output Neutralization for Logs
ParentOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.119Improper Restriction of Operations within the Bounds of a Memory Buffer
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.120Buffer Copy without Checking Size of Input ('Classic Buffer Overflow')
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.134Use of Externally-Controlled Format String
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.170Improper Null Termination
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.190Integer Overflow or Wraparound
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.466Return of Pointer Value Outside of Expected Range
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.470Use of Externally-Controlled Input to Select Classes or Code ('Unsafe Reflection')
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.785Use of Path Manipulation Function without Maximum-sized Buffer
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Architecture and Design
Implementation

REALIZATION: This weakness is caused during implementation of an architectural security tactic.

If a programmer believes that an attacker cannot modify certain inputs, then the programmer might not perform any input validation at all. For example, in web applications, many programmers believe that cookies and hidden form fields can not be modified from a web browser (CWE-472), although they can be altered using a proxy or a custom program. In a client-server architecture, the programmer might assume that client-side security checks cannot be bypassed, even when a custom client could be written that skips those checks (CWE-602).

+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Language-Independent (Undetermined Prevalence)

+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Availability

Technical Impact: DoS: Crash, Exit, or Restart; DoS: Resource Consumption (CPU); DoS: Resource Consumption (Memory)

An attacker could provide unexpected values and cause a program crash or excessive consumption of resources, such as memory and CPU.
Confidentiality

Technical Impact: Read Memory; Read Files or Directories

An attacker could read confidential data if they are able to control resource references.
Integrity
Confidentiality
Availability

Technical Impact: Modify Memory; Execute Unauthorized Code or Commands

An attacker could use malicious input to modify data or possibly alter control flow in unexpected ways, including arbitrary command execution.
+ Likelihood Of Exploit
High
+ Demonstrative Examples

Example 1

This example demonstrates a shopping interaction in which the user is free to specify the quantity of items to be purchased and a total is calculated.

(bad code)
Example Language: Java
...
public static final double price = 20.00;
int quantity = currentUser.getAttribute("quantity");
double total = price * quantity;
chargeUser(total);
...

The user has no control over the price variable, however the code does not prevent a negative value from being specified for quantity. If an attacker were to provide a negative value, then the user would have their account credited instead of debited.

Example 2

This example asks the user for a height and width of an m X n game board with a maximum dimension of 100 squares.

(bad code)
Example Language:
...
#define MAX_DIM 100
...
/* board dimensions */

int m,n, error;
board_square_t *board;
printf("Please specify the board height: \n");
error = scanf("%d", &m);
if ( EOF == error ){
die("No integer passed: Die evil hacker!\n");
}
printf("Please specify the board width: \n");
error = scanf("%d", &n);
if ( EOF == error ){
die("No integer passed: Die evil hacker!\n");
}
if ( m > MAX_DIM || n > MAX_DIM ) {
die("Value too large: Die evil hacker!\n");
}
board = (board_square_t*) malloc( m * n * sizeof(board_square_t));
...

While this code checks to make sure the user cannot specify large, positive integers and consume too much memory, it does not check for negative values supplied by the user. As a result, an attacker can perform a resource consumption (CWE-400) attack against this program by specifying two, large negative values that will not overflow, resulting in a very large memory allocation (CWE-789) and possibly a system crash. Alternatively, an attacker can provide very large negative values which will cause an integer overflow (CWE-190) and unexpected behavior will follow depending on how the values are treated in the remainder of the program.

Example 3

The following example shows a PHP application in which the programmer attempts to display a user's birthday and homepage.

(bad code)
Example Language: PHP
$birthday = $_GET['birthday'];
$homepage = $_GET['homepage'];
echo "Birthday: $birthday<br>Homepage: <a href=$homepage>click here</a>"

The programmer intended for $birthday to be in a date format and $homepage to be a valid URL. However, since the values are derived from an HTTP request, if an attacker can trick a victim into clicking a crafted URL with <script> tags providing the values for birthday and / or homepage, then the script will run on the client's browser when the web server echoes the content. Notice that even if the programmer were to defend the $birthday variable by restricting input to integers and dashes, it would still be possible for an attacker to provide a string of the form:

(attack code)

2009-01-09--

If this data were used in a SQL statement, it would treat the remainder of the statement as a comment. The comment could disable other security-related logic in the statement. In this case, encoding combined with input validation would be a more useful protection mechanism.

Furthermore, an XSS (CWE-79) attack or SQL injection (CWE-89) are just a few of the potential consequences when input validation is not used. Depending on the context of the code, CRLF Injection (CWE-93), Argument Injection (CWE-88), or Command Injection (CWE-77) may also be possible.

Example 4

This function attempts to extract a pair of numbers from a user-supplied string.

(bad code)
Example Language:
void parse_data(char *untrusted_input){
int m, n, error;
error = sscanf(untrusted_input, "%d:%d", &m, &n);
if ( EOF == error ){
die("Did not specify integer value. Die evil hacker!\n");
}
/* proceed assuming n and m are initialized correctly */
}

This code attempts to extract two integer values out of a formatted, user-supplied input. However, if an attacker were to provide an input of the form:

(attack code)

123:

then only the m variable will be initialized. Subsequent use of n may result in the use of an uninitialized variable (CWE-457).

Example 5

The following example takes a user-supplied value to allocate an array of objects and then operates on the array.

(bad code)
Example Language: Java
private void buildList ( int untrustedListSize ){
if ( 0 > untrustedListSize ){
die("Negative value supplied for list size, die evil hacker!");
}
Widget[] list = new Widget [ untrustedListSize ];
list[0] = new Widget();
}

This example attempts to build a list from a user-specified value, and even checks to ensure a non-negative value is supplied. If, however, a 0 value is provided, the code will build an array of size 0 and then try to store a new Widget in the first location, causing an exception to be thrown.

Example 6

This application has registered to handle a URL when sent an intent:

(bad code)
Example Language: Java

...
IntentFilter filter = new IntentFilter("com.example.URLHandler.openURL");
MyReceiver receiver = new MyReceiver();
registerReceiver(receiver, filter);
...

public class UrlHandlerReceiver extends BroadcastReceiver {
@Override
public void onReceive(Context context, Intent intent) {
if("com.example.URLHandler.openURL".equals(intent.getAction())) {
String URL = intent.getStringExtra("URLToOpen");
int length = URL.length();

...
}
}
}

The application assumes the URL will always be included in the intent. When the URL is not present, the call to getStringExtra() will return null, thus causing a null pointer exception when length() is called.

+ Observed Examples
ReferenceDescription
Eval injection in Perl program using an ID that should only contain hyphens and numbers.
SQL injection through an ID that was supposed to be numeric.
lack of input validation in spreadsheet program leads to buffer overflows, integer overflows, array index errors, and memory corruption.
insufficient validation enables XSS
driver in security product allows code execution due to insufficient validation
infinite loop from DNS packet with a label that points to itself
infinite loop from DNS packet with a label that points to itself
missing parameter leads to crash
HTTP request with missing protocol version number leads to crash
request with missing parameters leads to information exposure
system crash with offset value that is inconsistent with packet size
size field that is inconsistent with packet size leads to buffer over-read
product uses a blacklist to identify potentially dangerous content, allowing attacker to bypass a warning
security bypass via an extra header
use of extra data in a signature allows certificate signature forging
empty packet triggers reboot
incomplete blacklist allows SQL injection
NUL byte in theme name cause directory traversal impact to be worse
kernel does not validate an incoming pointer before dereferencing it
anti-virus product has insufficient input validation of hooked SSDT functions, allowing code execution
anti-virus product allows DoS via zero-length field
driver does not validate input from userland to the kernel
kernel does not validate parameters sent in from userland, allowing code execution
lack of validation of string length fields allows memory consumption or buffer over-read
lack of validation of length field leads to infinite loop
lack of validation of input to an IOCTL allows code execution
zero-length attachment causes crash
zero-length input causes free of uninitialized pointer
crash via a malformed frame structure
infinite loop from a long SMTP request
router crashes with a malformed packet
packet with invalid version number leads to NULL pointer dereference
crash via multiple "." characters in file extension
+ Potential Mitigations

Phase: Architecture and Design

Strategy: Input Validation

Use an input validation framework such as Struts or the OWASP ESAPI Validation API. If you use Struts, be mindful of weaknesses covered by the CWE-101 category.

Phase: Architecture and Design

Strategy: Libraries or Frameworks

Use an input validation framework such as Struts or the OWASP ESAPI Validation API. If you use Struts, be mindful of weaknesses covered by the CWE-101 category.

Phases: Architecture and Design; Implementation

Strategy: Attack Surface Reduction

Understand all the potential areas where untrusted inputs can enter your software: parameters or arguments, cookies, anything read from the network, environment variables, reverse DNS lookups, query results, request headers, URL components, e-mail, files, filenames, databases, and any external systems that provide data to the application. Remember that such inputs may be obtained indirectly through API calls.

Phase: Implementation

Strategy: Input Validation

Assume all input is malicious. Use an "accept known good" input validation strategy, i.e., use a whitelist of acceptable inputs that strictly conform to specifications. Reject any input that does not strictly conform to specifications, or transform it into something that does.

When performing input validation, consider all potentially relevant properties, including length, type of input, the full range of acceptable values, missing or extra inputs, syntax, consistency across related fields, and conformance to business rules. As an example of business rule logic, "boat" may be syntactically valid because it only contains alphanumeric characters, but it is not valid if the input is only expected to contain colors such as "red" or "blue."

Do not rely exclusively on looking for malicious or malformed inputs (i.e., do not rely on a blacklist). A blacklist is likely to miss at least one undesirable input, especially if the code's environment changes. This can give attackers enough room to bypass the intended validation. However, blacklists can be useful for detecting potential attacks or determining which inputs are so malformed that they should be rejected outright.

Phase: Architecture and Design

For any security checks that are performed on the client side, ensure that these checks are duplicated on the server side, in order to avoid CWE-602. Attackers can bypass the client-side checks by modifying values after the checks have been performed, or by changing the client to remove the client-side checks entirely. Then, these modified values would be submitted to the server.

Even though client-side checks provide minimal benefits with respect to server-side security, they are still useful. First, they can support intrusion detection. If the server receives input that should have been rejected by the client, then it may be an indication of an attack. Second, client-side error-checking can provide helpful feedback to the user about the expectations for valid input. Third, there may be a reduction in server-side processing time for accidental input errors, although this is typically a small savings.

Phase: Implementation

When your application combines data from multiple sources, perform the validation after the sources have been combined. The individual data elements may pass the validation step but violate the intended restrictions after they have been combined.

Phase: Implementation

Be especially careful to validate all input when invoking code that crosses language boundaries, such as from an interpreted language to native code. This could create an unexpected interaction between the language boundaries. Ensure that you are not violating any of the expectations of the language with which you are interfacing. For example, even though Java may not be susceptible to buffer overflows, providing a large argument in a call to native code might trigger an overflow.

Phase: Implementation

Directly convert your input type into the expected data type, such as using a conversion function that translates a string into a number. After converting to the expected data type, ensure that the input's values fall within the expected range of allowable values and that multi-field consistencies are maintained.

Phase: Implementation

Inputs should be decoded and canonicalized to the application's current internal representation before being validated (CWE-180, CWE-181). Make sure that your application does not inadvertently decode the same input twice (CWE-174). Such errors could be used to bypass whitelist schemes by introducing dangerous inputs after they have been checked. Use libraries such as the OWASP ESAPI Canonicalization control.

Consider performing repeated canonicalization until your input does not change any more. This will avoid double-decoding and similar scenarios, but it might inadvertently modify inputs that are allowed to contain properly-encoded dangerous content.

Phase: Implementation

When exchanging data between components, ensure that both components are using the same character encoding. Ensure that the proper encoding is applied at each interface. Explicitly set the encoding you are using whenever the protocol allows you to do so.

Phase: Testing

Use automated static analysis tools that target this type of weakness. Many modern techniques use data flow analysis to minimize the number of false positives. This is not a perfect solution, since 100% accuracy and coverage are not feasible.

Phase: Testing

Use dynamic tools and techniques that interact with the software using large test suites with many diverse inputs, such as fuzz testing (fuzzing), robustness testing, and fault injection. The software's operation may slow down, but it should not become unstable, crash, or generate incorrect results.
+ Detection Methods

Automated Static Analysis

Some instances of improper input validation can be detected using automated static analysis.

A static analysis tool might allow the user to specify which application-specific methods or functions perform input validation; the tool might also have built-in knowledge of validation frameworks such as Struts. The tool may then suppress or de-prioritize any associated warnings. This allows the analyst to focus on areas of the software in which input validation does not appear to be present.

Except in the cases described in the previous paragraph, automated static analysis might not be able to recognize when proper input validation is being performed, leading to false positives - i.e., warnings that do not have any security consequences or require any code changes.

Manual Static Analysis

When custom input validation is required, such as when enforcing business rules, manual analysis is necessary to ensure that the validation is properly implemented.

Fuzzing

Fuzzing techniques can be useful for detecting input validation errors. When unexpected inputs are provided to the software, the software should not crash or otherwise become unstable, and it should generate application-controlled error messages. If exceptions or interpreter-generated error messages occur, this indicates that the input was not detected and handled within the application logic itself.

Automated Static Analysis - Binary or Bytecode

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Bytecode Weakness Analysis - including disassembler + source code weakness analysis
  • Binary Weakness Analysis - including disassembler + source code weakness analysis

Effectiveness: SOAR Partial

Manual Static Analysis - Binary or Bytecode

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Binary / Bytecode disassembler - then use manual analysis for vulnerabilities & anomalies

Effectiveness: SOAR Partial

Dynamic Analysis with Automated Results Interpretation

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Web Application Scanner
  • Web Services Scanner
  • Database Scanners

Effectiveness: High

Dynamic Analysis with Manual Results Interpretation

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Fuzz Tester
  • Framework-based Fuzzer
Cost effective for partial coverage:
  • Host Application Interface Scanner
  • Monitored Virtual Environment - run potentially malicious code in sandbox / wrapper / virtual machine, see if it does anything suspicious

Effectiveness: High

Manual Static Analysis - Source Code

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Focused Manual Spotcheck - Focused manual analysis of source
  • Manual Source Code Review (not inspections)

Effectiveness: High

Automated Static Analysis - Source Code

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Source code Weakness Analyzer
  • Context-configured Source Code Weakness Analyzer

Effectiveness: High

Architecture or Design Review

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Inspection (IEEE 1028 standard) (can apply to requirements, design, source code, etc.)
  • Formal Methods / Correct-By-Construction
Cost effective for partial coverage:
  • Attack Modeling

Effectiveness: High

+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).635Weaknesses Originally Used by NVD from 2008 to 2016
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.722OWASP Top Ten 2004 Category A1 - Unvalidated Input
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.738CERT C Secure Coding Standard (2008) Chapter 5 - Integers (INT)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.742CERT C Secure Coding Standard (2008) Chapter 9 - Memory Management (MEM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.746CERT C Secure Coding Standard (2008) Chapter 13 - Error Handling (ERR)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.747CERT C Secure Coding Standard (2008) Chapter 14 - Miscellaneous (MSC)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.7512009 Top 25 - Insecure Interaction Between Components
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.872CERT C++ Secure Coding Section 04 - Integers (INT)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.876CERT C++ Secure Coding Section 08 - Memory Management (MEM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.883CERT C++ Secure Coding Section 49 - Miscellaneous (MSC)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.994SFP Secondary Cluster: Tainted Input to Variable
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.10057PK - Input Validation and Representation
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1163SEI CERT C Coding Standard - Guidelines 09. Input Output (FIO)
+ Notes

Applicable Platform

Input validation can be a problem in any system that receives data from an external source.

Maintenance

Input validation - whether missing or incorrect - is such an essential and widespread part of secure development that it is implicit in many different weaknesses. Traditionally, problems such as buffer overflows and XSS have been classified as input validation problems by many security professionals. However, input validation is not necessarily the only protection mechanism available for avoiding such problems, and in some cases it is not even sufficient. The CWE team has begun capturing these subtleties in chains within the Research Concepts view (CWE-1000), but more work is needed.

Relationship

CWE-116 and CWE-20 have a close association because, depending on the nature of the structured message, proper input validation can indirectly prevent special characters from changing the meaning of a structured message. For example, by validating that a numeric ID field should only contain the 0-9 characters, the programmer effectively prevents injection attacks.

However, input validation is not always sufficient, especially when less stringent data types must be supported, such as free-form text. Consider a SQL injection scenario in which a last name is inserted into a query. The name "O'Reilly" would likely pass the validation step since it is a common last name in the English language. However, it cannot be directly inserted into the database because it contains the "'" apostrophe character, which would need to be escaped or otherwise neutralized. In this case, stripping the apostrophe might reduce the risk of SQL injection, but it would produce incorrect behavior because the wrong name would be recorded.

Research Gap

There is not much research into the classification of input validation techniques and their application. Many publicly-disclosed vulnerabilities simply characterize a problem as "input validation" without providing more specific details that might contribute to a deeper understanding of validation techniques and the weaknesses they can prevent or reduce. Validation is over-emphasized in contrast to other neutralization techniques such as filtering and enforcement by conversion. See the vulnerability theory paper.

Terminology

The "input validation" term is extremely common, but it is used in many different ways. In some cases its usage can obscure the real underlying weakness or otherwise hide chaining and composite relationships.

Some people use "input validation" as a general term that covers many different neutralization techniques for ensuring that input is appropriate, such as filtering, canonicalization, and escaping. Others use the term in a more narrow context to simply mean "checking if an input conforms to expectations without changing it."

+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
7 Pernicious KingdomsInput validation and representation
OWASP Top Ten 2004A1CWE More SpecificUnvalidated Input
CERT C Secure CodingERR07-CPrefer functions that support error checking over equivalent functions that don't
CERT C Secure CodingFIO30-CCWE More AbstractExclude user input from format strings
CERT C Secure CodingMEM10-CDefine and use a pointer validation function
WASC20Improper Input Handling
Software Fault PatternsSFP25Tainted input to variable
+ References
[REF-166] Jim Manico. "Input Validation with ESAPI - Very Important". 2008-08-15. <http://manicode.blogspot.com/2008/08/input-validation-with-esapi.html>.
[REF-45] OWASP. "OWASP Enterprise Security API (ESAPI) Project". <http://www.owasp.org/index.php/ESAPI>.
[REF-168] Joel Scambray, Mike Shema and Caleb Sima. "Hacking Exposed Web Applications, Second Edition". Input Validation Attacks. McGraw-Hill. 2006-06-05.
[REF-48] Jeremiah Grossman. "Input validation or output filtering, which is better?". 2007-01-30. <http://jeremiahgrossman.blogspot.com/2007/01/input-validation-or-output-filtering.html>.
[REF-170] Kevin Beaver. "The importance of input validation". 2006-09-06. <http://searchsoftwarequality.techtarget.com/tip/0,289483,sid92_gci1214373,00.html>.
[REF-7] Michael Howard and David LeBlanc. "Writing Secure Code". Chapter 10, "All Input Is Evil!" Page 341. 2nd Edition. Microsoft Press. 2002-12-04. <https://www.microsoftpressstore.com/store/writing-secure-code-9780735617223>.
+ Content History
Submissions
Submission DateSubmitterOrganization
7 Pernicious Kingdoms
Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Potential_Mitigations, Time_of_Introduction
2008-08-15Veracode
Suggested OWASP Top Ten 2004 mapping
2008-09-08CWE Content TeamMITRE
updated Relationships, Other_Notes, Taxonomy_Mappings
2008-11-24CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-01-12CWE Content TeamMITRE
updated Applicable_Platforms, Common_Consequences, Demonstrative_Examples, Description, Likelihood_of_Exploit, Name, Observed_Examples, Other_Notes, Potential_Mitigations, References, Relationship_Notes, Relationships
2009-03-10CWE Content TeamMITRE
updated Description, Potential_Mitigations
2009-05-27CWE Content TeamMITRE
updated Related_Attack_Patterns
2009-07-27CWE Content TeamMITRE
updated Relationships
2009-10-29CWE Content TeamMITRE
updated Common_Consequences, Demonstrative_Examples, Maintenance_Notes, Modes_of_Introduction, Observed_Examples, Relationships, Research_Gaps, Terminology_Notes
2009-12-28CWE Content TeamMITRE
updated Applicable_Platforms, Demonstrative_Examples, Detection_Factors
2010-02-16CWE Content TeamMITRE
updated Detection_Factors, Potential_Mitigations, References, Taxonomy_Mappings
2010-04-05CWE Content TeamMITRE
updated Related_Attack_Patterns
2010-06-21CWE Content TeamMITRE
updated Potential_Mitigations, Research_Gaps, Terminology_Notes
2010-09-27CWE Content TeamMITRE
updated Potential_Mitigations, Relationships
2010-12-13CWE Content TeamMITRE
updated Demonstrative_Examples, Description
2011-03-29CWE Content TeamMITRE
updated Observed_Examples
2011-06-01CWE Content TeamMITRE
updated Applicable_Platforms, Common_Consequences, Relationship_Notes
2011-09-13CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Demonstrative_Examples, References, Related_Attack_Patterns, Relationships
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2013-02-21CWE Content TeamMITRE
updated Relationships
2013-07-17CWE Content TeamMITRE
updated Relationships
2014-02-18CWE Content TeamMITRE
updated Demonstrative_Examples, Related_Attack_Patterns
2014-07-30CWE Content TeamMITRE
updated Detection_Factors, Relationships, Taxonomy_Mappings
2015-12-07CWE Content TeamMITRE
updated Relationships
2017-01-19CWE Content TeamMITRE
updated Related_Attack_Patterns, Relationships
2017-05-03CWE Content TeamMITRE
updated Related_Attack_Patterns, Relationships
2017-11-08CWE Content TeamMITRE
updated Modes_of_Introduction, References, Relationships, Taxonomy_Mappings
2018-03-27CWE Content TeamMITRE
updated References
2019-01-03CWE Content TeamMITRE
updated Related_Attack_Patterns, Relationships
Previous Entry Names
Change DatePrevious Entry Name
2009-01-12Insufficient Input Validation

CWE-667: Improper Locking

Weakness ID: 667
Abstraction: Base
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The software does not properly acquire a lock on a resource, or it does not properly release a lock on a resource, leading to unexpected resource state changes and behaviors.
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.662Improper Synchronization
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.412Unrestricted Externally Accessible Lock
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.413Improper Resource Locking
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.414Missing Lock Check
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.609Double-Checked Locking
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.764Multiple Locks of a Critical Resource
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.765Multiple Unlocks of a Critical Resource
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.832Unlock of a Resource that is not Locked
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.833Deadlock
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.662Improper Synchronization
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.764Multiple Locks of a Critical Resource
ParentOfVariantVariant - a weakness that is described at a very low level of detail, typically limited to a specific language or technology. More specific than a Base weakness.765Multiple Unlocks of a Critical Resource
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.832Unlock of a Resource that is not Locked
ParentOfBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.833Deadlock
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Architecture and Design
Implementation
+ Common Consequences

The table below specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.

ScopeImpactLikelihood
Availability

Technical Impact: DoS: Resource Consumption (CPU)

Inconsistent locking discipline can lead to deadlock.
+ Demonstrative Examples

Example 1

In the following Java snippet, methods are defined to get and set a long field in an instance of a class that is shared across multiple threads. Because operations on double and long are nonatomic in Java, concurrent access may cause unexpected behavior. Thus, all operations on long and double fields should be synchronized.

(bad code)
Example Language: Java
private long someLongValue;
public long getLongValue() {
return someLongValue;
}

public void setLongValue(long l) {
someLongValue = l;
}

Example 2

This code tries to obtain a lock for a file, then writes to it.

(bad code)
Example Language: PHP
function writeToLog($message){
$logfile = fopen("logFile.log", "a");
//attempt to get logfile lock
if (flock($logfile, LOCK_EX)) {
fwrite($logfile,$message);
// unlock logfile
flock($logfile, LOCK_UN);
}
else {
print "Could not obtain lock on logFile.log, message not recorded\n";
}
}
fclose($logFile);

PHP by default will wait indefinitely until a file lock is released. If an attacker is able to obtain the file lock, this code will pause execution, possibly leading to denial of service for other users. Note that in this case, if an attacker can perform an flock() on the file, they may already have privileges to destroy the log file. However, this still impacts the execution of other programs that depend on flock().

Example 3

The following function attempts to acquire a lock in order to perform operations on a shared resource.

(bad code)
Example Language:
void f(pthread_mutex_t *mutex) {
pthread_mutex_lock(mutex);

/* access shared resource */


pthread_mutex_unlock(mutex);
}

However, the code does not check the value returned by pthread_mutex_lock() for errors. If pthread_mutex_lock() cannot acquire the mutex for any reason the function may introduce a race condition into the program and result in undefined behavior.

In order to avoid data races correctly written programs must check the result of thread synchronization functions and appropriately handle all errors, either by attempting to recover from them or reporting it to higher levels.

(good code)

int f(pthread_mutex_t *mutex) {
int result;

result = pthread_mutex_lock(mutex);
if (0 != result)
return result;


/* access shared resource */


return pthread_mutex_unlock(mutex);
}

Example 4

It may seem that the following bit of code achieves thread safety while avoiding unnecessary synchronization...

(bad code)
Example Language: Java
if (helper == null) {
synchronized (this) {
if (helper == null) {
helper = new Helper();
}
}
}
return helper;

The programmer wants to guarantee that only one Helper() object is ever allocated, but does not want to pay the cost of synchronization every time this code is called.

Suppose that helper is not initialized. Then, thread A sees that helper==null and enters the synchronized block and begins to execute:

(bad code)

helper = new Helper();

If a second thread, thread B, takes over in the middle of this call and helper has not finished running the constructor, then thread B may make calls on helper while its fields hold incorrect values.

+ Observed Examples
ReferenceDescription
Attacker provides invalid address to a memory-reading function, causing a mutex to be unlocked twice
function in OS kernel unlocks a mutex that was not previously locked, causing a panic or overwrite of arbitrary memory.
Chain: OS kernel does not properly handle a failure of a function call (CWE-755), leading to an unlock of a resource that was not locked (CWE-832), with resultant crash.
OS kernel performs an unlock in some incorrect circumstances, leading to panic.
OS deadlock
OS deadlock involving 3 separate functions
deadlock in library
deadlock triggered by packets that force collisions in a routing table
read/write deadlock between web server and script
web server deadlock involving multiple listening connections
multiple simultaneous calls to the same function trigger deadlock.
chain: other weakness leads to NULL pointer dereference (CWE-476) or deadlock (CWE-833).
deadlock when an operation is performed on a resource while it is being removed.
Deadlock in device driver triggered by using file handle of a related device.
Deadlock when large number of small messages cannot be processed quickly enough.
OS kernel has deadlock triggered by a signal during a core dump.
Race condition leads to deadlock.
Chain: array index error (CWE-129) leads to deadlock (CWE-833)
Program can not execute when attacker obtains a mutex.
Program can not execute when attacker obtains a lock on a critical output file.
Program can not execute when attacker obtains a lock on a critical output file.
Critical file can be opened with exclusive read access by user, preventing application of security policy. Possibly related to improper permissions, large-window race condition.
Chain: predictable file names used for locking, allowing attacker to create the lock beforehand. Resultant from permissions and randomness.
Chain: Lock files with predictable names. Resultant from randomness.
Product does not check if it can write to a log file, allowing attackers to avoid logging by accessing the file using an exclusive lock. Overlaps unchecked error condition. This is not quite CWE-412, but close.
+ Potential Mitigations

Phase: Implementation

Strategy: Libraries or Frameworks

Use industry standard APIs to implement locking mechanism.
+ Memberships
This MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.748CERT C Secure Coding Standard (2008) Appendix - POSIX (POS)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.852The CERT Oracle Secure Coding Standard for Java (2011) Chapter 9 - Visibility and Atomicity (VNA)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.853The CERT Oracle Secure Coding Standard for Java (2011) Chapter 10 - Locking (LCK)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.986SFP Secondary Cluster: Missing Lock
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1131CISQ Quality Measures - Security
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1142SEI CERT Oracle Secure Coding Standard for Java - Guidelines 08. Visibility and Atomicity (VNA)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1143SEI CERT Oracle Secure Coding Standard for Java - Guidelines 09. Locking (LCK)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1169SEI CERT C Coding Standard - Guidelines 14. Concurrency (CON)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1171SEI CERT C Coding Standard - Guidelines 50. POSIX (POS)
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CERT C Secure CodingCON31-CCWE More AbstractDo not destroy a mutex while it is locked
CERT C Secure CodingPOS48-CCWE More AbstractDo not unlock or destroy another POSIX thread's mutex
The CERT Oracle Secure Coding Standard for Java (2011)VNA00-JEnsure visibility when accessing shared primitive variables
The CERT Oracle Secure Coding Standard for Java (2011)VNA02-JEnsure that compound operations on shared variables are atomic
The CERT Oracle Secure Coding Standard for Java (2011)VNA05-JEnsure atomicity when reading and writing 64-bit values
The CERT Oracle Secure Coding Standard for Java (2011)LCK06-JDo not use an instance lock to protect shared static data
Software Fault PatternsSFP19Missing Lock
OMG ASCSMASCSM-CWE-667
+ References
[REF-962] Object Management Group (OMG). "Automated Source Code Security Measure (ASCSM)". ASCSM-CWE-667. 2016-01. <http://www.omg.org/spec/ASCSM/1.0/>.
+ Content History
Modifications
Modification DateModifierOrganization
2008-07-01Sean EidemillerCigital
added/updated demonstrative examples
2008-07-01Eric DalciCigital
updated Potential_Mitigations, Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Relationships
2008-11-24CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-03-10CWE Content TeamMITRE
updated Related_Attack_Patterns
2009-05-27CWE Content TeamMITRE
updated Relationships
2009-07-27CWE Content TeamMITRE
updated Common_Consequences
2010-09-27CWE Content TeamMITRE
updated Relationships
2010-12-13CWE Content TeamMITRE
updated Description, Name, Relationships
2011-06-01CWE Content TeamMITRE
updated Common_Consequences, Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Demonstrative_Examples, Observed_Examples, Relationships
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2017-05-03CWE Content TeamMITRE
updated Related_Attack_Patterns
2017-11-08CWE Content TeamMITRE
updated Taxonomy_Mappings
2019-01-03CWE Content TeamMITRE
updated References, Relationships, Taxonomy_Mappings
Previous Entry Names
Change DatePrevious Entry Name
2010-12-13Insufficient Locking

CWE-78: Improper Neutralization of Special Elements used in an OS Command ('OS Command Injection')

Weakness ID: 78
Abstraction: Base
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The software constructs all or part of an OS command using externally-influenced input from an upstream component, but it does not neutralize or incorrectly neutralizes special elements that could modify the intended OS command when it is sent to a downstream component.
+ Extended Description

This could allow attackers to execute unexpected, dangerous commands directly on the operating system. This weakness can lead to a vulnerability in environments in which the attacker does not have direct access to the operating system, such as in web applications. Alternately, if the weakness occurs in a privileged program, it could allow the attacker to specify commands that normally would not be accessible, or to call alternate commands with privileges that the attacker does not have. The problem is exacerbated if the compromised process does not follow the principle of least privilege, because the attacker-controlled commands may run with special system privileges that increases the amount of damage.

There are at least two subtypes of OS command injection:

  1. The application intends to execute a single, fixed program that is under its own control. It intends to use externally-supplied inputs as arguments to that program. For example, the program might use system("nslookup [HOSTNAME]") to run nslookup and allow the user to supply a HOSTNAME, which is used as an argument. Attackers cannot prevent nslookup from executing. However, if the program does not remove command separators from the HOSTNAME argument, attackers could place the separators into the arguments, which allows them to execute their own program after nslookup has finished executing.
  2. The application accepts an input that it uses to fully select which program to run, as well as which commands to use. The application simply redirects this entire command to the operating system. For example, the program might use "exec([COMMAND])" to execute the [COMMAND] that was supplied by the user. If the COMMAND is under attacker control, then the attacker can execute arbitrary commands or programs. If the command is being executed using functions like exec() and CreateProcess(), the attacker might not be able to combine multiple commands together in the same line.

From a weakness standpoint, these variants represent distinct programmer errors. In the first variant, the programmer clearly intends that input from untrusted parties will be part of the arguments in the command to be executed. In the second variant, the programmer does not intend for the command to be accessible to any untrusted party, but the programmer probably has not accounted for alternate ways in which malicious attackers can provide input.

+ Alternate Terms
Shell injection
Shell metacharacters
+ Relationships

The table(s) below shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.

+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.77Improper Neutralization of Special Elements used in a Command ('Command Injection')
CanAlsoBeBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.88Argument Injection or Modification
CanFollowBaseBase - a weakness that is described in an abstract fashion, but with sufficient details to infer specific methods for detection and prevention. More general than a Variant weakness, but more specific than a Class weakness.184Incomplete Blacklist
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.77Improper Neutralization of Special Elements used in a Command ('Command Injection')
+ Relevant to the view "Architectural Concepts" (CWE-1008)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1019Validate Inputs
+ Relevant to the view "Development Concepts" (CWE-699)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More general than a Base weakness.77Improper Neutralization of Special Elements used in a Command ('Command Injection')
+ Modes Of Introduction

The different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the software life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.

PhaseNote
Architecture and Design
ImplementationREALIZATION: This weakness is caused during implementation of an architectural security tactic.
+ Applicable Platforms
The listings below show possible areas for which the given weakness could appear. These may be for specific named Languag
