CWE VIEW: Weaknesses for Simplified Mapping of Published Vulnerabilities

View ID: 1003
Type: Graph
Status: Incomplete
Downloads: Booklet | CSV | XML
+ Objective
CWE entries in this view (graph) may be used to categorize potential weaknesses within sources that handle public, third-party vulnerability information, such as the National Vulnerability Database (NVD). By design, this view is incomplete; it is limited to a small number of the most commonly-seen weaknesses, so that it is easier for humans to use. This view uses a shallow hierarchy of two levels in order to simplify the complex, category-oriented navigation of the entire CWE corpus.
+ Relationships
The following graph shows the tree-like relationships between weaknesses that exist at different levels of abstraction. At the highest level, categories and pillars exist to group weaknesses. Categories (which are not technically weaknesses) are special CWE entries used to group weaknesses that share a common characteristic. Pillars are weaknesses that are described in the most abstract fashion. Below these top-level entries are weaknesses are varying levels of abstraction. Classes are still very abstract, typically independent of any specific language or technology. Base level weaknesses are used to present a more specific type of weakness. A variant is a weakness that is described at a very low level of detail, typically limited to a specific language or technology. A chain is a set of weaknesses that must be reachable consecutively in order to produce an exploitable vulnerability. While a composite is a set of weaknesses that must all be present simultaneously in order to produce an exploitable vulnerability.
Show Details:
1003 - Weaknesses for Simplified Mapping of Published Vulnerabilities
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Improper Input Validation - (20)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 20 (Improper Input Validation)
The product receives input or data, but it does not validate or incorrectly validates that the input has the properties that are required to process the data safely and correctly.
*VariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.Improper Validation of Array Index - (129)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 20 (Improper Input Validation) > 129 (Improper Validation of Array Index)
The product uses untrusted input when calculating or using an array index, but the product does not validate or incorrectly validates the index to ensure the index references a valid position within the array.out-of-bounds array indexindex-out-of-rangearray index underflow
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Improper Neutralization of Special Elements in Output Used by a Downstream Component ('Injection') - (74)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 74 (Improper Neutralization of Special Elements in Output Used by a Downstream Component ('Injection'))
The software constructs all or part of a command, data structure, or record using externally-influenced input from an upstream component, but it does not neutralize or incorrectly neutralizes special elements that could modify how it is parsed or interpreted when it is sent to a downstream component.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Neutralization of Formula Elements in a CSV File - (1236)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 74 (Improper Neutralization of Special Elements in Output Used by a Downstream Component ('Injection')) > 1236 (Improper Neutralization of Formula Elements in a CSV File)
The software saves user-provided information into a Comma-Separated Value (CSV) file, but it does not neutralize or incorrectly neutralizes special elements that could be interpreted as a command when the file is opened by spreadsheet software.CSV InjectionFormula InjectionExcel Macro Injection
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Improper Neutralization of Special Elements used in a Command ('Command Injection') - (77)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 74 (Improper Neutralization of Special Elements in Output Used by a Downstream Component ('Injection')) > 77 (Improper Neutralization of Special Elements used in a Command ('Command Injection'))
The software constructs all or part of a command using externally-influenced input from an upstream component, but it does not neutralize or incorrectly neutralizes special elements that could modify the intended command when it is sent to a downstream component.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Neutralization of Special Elements used in an OS Command ('OS Command Injection') - (78)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 74 (Improper Neutralization of Special Elements in Output Used by a Downstream Component ('Injection')) > 78 (Improper Neutralization of Special Elements used in an OS Command ('OS Command Injection'))
The software constructs all or part of an OS command using externally-influenced input from an upstream component, but it does not neutralize or incorrectly neutralizes special elements that could modify the intended OS command when it is sent to a downstream component.Shell injectionShell metacharacters
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Neutralization of Input During Web Page Generation ('Cross-site Scripting') - (79)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 74 (Improper Neutralization of Special Elements in Output Used by a Downstream Component ('Injection')) > 79 (Improper Neutralization of Input During Web Page Generation ('Cross-site Scripting'))
The software does not neutralize or incorrectly neutralizes user-controllable input before it is placed in output that is used as a web page that is served to other users.XSSHTML InjectionCSS
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Neutralization of Argument Delimiters in a Command ('Argument Injection') - (88)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 74 (Improper Neutralization of Special Elements in Output Used by a Downstream Component ('Injection')) > 88 (Improper Neutralization of Argument Delimiters in a Command ('Argument Injection'))
The software constructs a string for a command to executed by a separate component in another control sphere, but it does not properly delimit the intended arguments, options, or switches within that command string.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Neutralization of Special Elements used in an SQL Command ('SQL Injection') - (89)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 74 (Improper Neutralization of Special Elements in Output Used by a Downstream Component ('Injection')) > 89 (Improper Neutralization of Special Elements used in an SQL Command ('SQL Injection'))
The software constructs all or part of an SQL command using externally-influenced input from an upstream component, but it does not neutralize or incorrectly neutralizes special elements that could modify the intended SQL command when it is sent to a downstream component.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.XML Injection (aka Blind XPath Injection) - (91)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 74 (Improper Neutralization of Special Elements in Output Used by a Downstream Component ('Injection')) > 91 (XML Injection (aka Blind XPath Injection))
The software does not properly neutralize special elements that are used in XML, allowing attackers to modify the syntax, content, or commands of the XML before it is processed by an end system.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Neutralization of Special Elements used in an Expression Language Statement ('Expression Language Injection') - (917)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 74 (Improper Neutralization of Special Elements in Output Used by a Downstream Component ('Injection')) > 917 (Improper Neutralization of Special Elements used in an Expression Language Statement ('Expression Language Injection'))
The software constructs all or part of an expression language (EL) statement in a Java Server Page (JSP) using externally-influenced input from an upstream component, but it does not neutralize or incorrectly neutralizes special elements that could modify the intended EL statement before it is executed.EL Injection
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Control of Generation of Code ('Code Injection') - (94)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 74 (Improper Neutralization of Special Elements in Output Used by a Downstream Component ('Injection')) > 94 (Improper Control of Generation of Code ('Code Injection'))
The software constructs all or part of a code segment using externally-influenced input from an upstream component, but it does not neutralize or incorrectly neutralizes special elements that could modify the syntax or behavior of the intended code segment.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Improper Encoding or Escaping of Output - (116)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 116 (Improper Encoding or Escaping of Output)
The software prepares a structured message for communication with another component, but encoding or escaping of the data is either missing or done incorrectly. As a result, the intended structure of the message is not preserved.Output SanitizationOutput ValidationOutput Encoding
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Inappropriate Encoding for Output Context - (838)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 116 (Improper Encoding or Escaping of Output) > 838 (Inappropriate Encoding for Output Context)
The software uses or specifies an encoding when generating output to a downstream component, but the specified encoding is not the same as the encoding that is expected by the downstream component.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Improper Restriction of Operations within the Bounds of a Memory Buffer - (119)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 119 (Improper Restriction of Operations within the Bounds of a Memory Buffer)
The software performs operations on a memory buffer, but it can read from or write to a memory location that is outside of the intended boundary of the buffer.Buffer Overflowbuffer overrunmemory safety
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Buffer Copy without Checking Size of Input ('Classic Buffer Overflow') - (120)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 119 (Improper Restriction of Operations within the Bounds of a Memory Buffer) > 120 (Buffer Copy without Checking Size of Input ('Classic Buffer Overflow'))
The program copies an input buffer to an output buffer without verifying that the size of the input buffer is less than the size of the output buffer, leading to a buffer overflow.Classic Buffer OverflowUnbounded Transfer
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Out-of-bounds Read - (125)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 119 (Improper Restriction of Operations within the Bounds of a Memory Buffer) > 125 (Out-of-bounds Read)
The software reads data past the end, or before the beginning, of the intended buffer.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Out-of-bounds Write - (787)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 119 (Improper Restriction of Operations within the Bounds of a Memory Buffer) > 787 (Out-of-bounds Write)
The software writes data past the end, or before the beginning, of the intended buffer.Memory Corruption
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Access of Uninitialized Pointer - (824)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 119 (Improper Restriction of Operations within the Bounds of a Memory Buffer) > 824 (Access of Uninitialized Pointer)
The program accesses or uses a pointer that has not been initialized.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Exposure of Sensitive Information to an Unauthorized Actor - (200)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 200 (Exposure of Sensitive Information to an Unauthorized Actor)
The product exposes sensitive information to an actor that is not explicitly authorized to have access to that information.Information DisclosureInformation Leak
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Observable Discrepancy - (203)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 200 (Exposure of Sensitive Information to an Unauthorized Actor) > 203 (Observable Discrepancy)

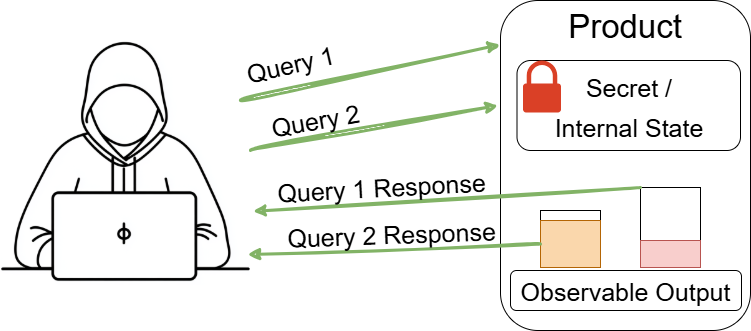

The product behaves differently or sends different responses under different circumstances in a way that is observable to an unauthorized actor, which exposes security-relevant information about the state of the product, such as whether a particular operation was successful or not.Side Channel Attack
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Generation of Error Message Containing Sensitive Information - (209)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 200 (Exposure of Sensitive Information to an Unauthorized Actor) > 209 (Generation of Error Message Containing Sensitive Information)
The software generates an error message that includes sensitive information about its environment, users, or associated data.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Insertion of Sensitive Information into Log File - (532)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 200 (Exposure of Sensitive Information to an Unauthorized Actor) > 532 (Insertion of Sensitive Information into Log File)
Information written to log files can be of a sensitive nature and give valuable guidance to an attacker or expose sensitive user information.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Improper Privilege Management - (269)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 269 (Improper Privilege Management)
The software does not properly assign, modify, track, or check privileges for an actor, creating an unintended sphere of control for that actor.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Improper Authentication - (287)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 287 (Improper Authentication)
When an actor claims to have a given identity, the software does not prove or insufficiently proves that the claim is correct.authentificationAuthNAuthC
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Authentication Bypass by Spoofing - (290)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 287 (Improper Authentication) > 290 (Authentication Bypass by Spoofing)
This attack-focused weakness is caused by improperly implemented authentication schemes that are subject to spoofing attacks.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Authentication Bypass by Capture-replay - (294)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 287 (Improper Authentication) > 294 (Authentication Bypass by Capture-replay)
A capture-replay flaw exists when the design of the software makes it possible for a malicious user to sniff network traffic and bypass authentication by replaying it to the server in question to the same effect as the original message (or with minor changes).
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Certificate Validation - (295)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 287 (Improper Authentication) > 295 (Improper Certificate Validation)
The software does not validate, or incorrectly validates, a certificate.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Missing Authentication for Critical Function - (306)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 287 (Improper Authentication) > 306 (Missing Authentication for Critical Function)
The software does not perform any authentication for functionality that requires a provable user identity or consumes a significant amount of resources.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Restriction of Excessive Authentication Attempts - (307)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 287 (Improper Authentication) > 307 (Improper Restriction of Excessive Authentication Attempts)
The software does not implement sufficient measures to prevent multiple failed authentication attempts within in a short time frame, making it more susceptible to brute force attacks.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Weak Password Requirements - (521)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 287 (Improper Authentication) > 521 (Weak Password Requirements)
The product does not require that users should have strong passwords, which makes it easier for attackers to compromise user accounts.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Insufficiently Protected Credentials - (522)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 287 (Improper Authentication) > 522 (Insufficiently Protected Credentials)
The product transmits or stores authentication credentials, but it uses an insecure method that is susceptible to unauthorized interception and/or retrieval.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Weak Password Recovery Mechanism for Forgotten Password - (640)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 287 (Improper Authentication) > 640 (Weak Password Recovery Mechanism for Forgotten Password)
The software contains a mechanism for users to recover or change their passwords without knowing the original password, but the mechanism is weak.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Use of Hard-coded Credentials - (798)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 287 (Improper Authentication) > 798 (Use of Hard-coded Credentials)
The software contains hard-coded credentials, such as a password or cryptographic key, which it uses for its own inbound authentication, outbound communication to external components, or encryption of internal data.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Missing Encryption of Sensitive Data - (311)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 311 (Missing Encryption of Sensitive Data)
The software does not encrypt sensitive or critical information before storage or transmission.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Cleartext Storage of Sensitive Information - (312)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 311 (Missing Encryption of Sensitive Data) > 312 (Cleartext Storage of Sensitive Information)
The application stores sensitive information in cleartext within a resource that might be accessible to another control sphere.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Cleartext Transmission of Sensitive Information - (319)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 311 (Missing Encryption of Sensitive Data) > 319 (Cleartext Transmission of Sensitive Information)
The software transmits sensitive or security-critical data in cleartext in a communication channel that can be sniffed by unauthorized actors.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Inadequate Encryption Strength - (326)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 326 (Inadequate Encryption Strength)
The software stores or transmits sensitive data using an encryption scheme that is theoretically sound, but is not strong enough for the level of protection required.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Use of a Broken or Risky Cryptographic Algorithm - (327)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 327 (Use of a Broken or Risky Cryptographic Algorithm)
The use of a broken or risky cryptographic algorithm is an unnecessary risk that may result in the exposure of sensitive information.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Use of Password Hash With Insufficient Computational Effort - (916)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 327 (Use of a Broken or Risky Cryptographic Algorithm) > 916 (Use of Password Hash With Insufficient Computational Effort)
The software generates a hash for a password, but it uses a scheme that does not provide a sufficient level of computational effort that would make password cracking attacks infeasible or expensive.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Use of Insufficiently Random Values - (330)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 330 (Use of Insufficiently Random Values)
The software uses insufficiently random numbers or values in a security context that depends on unpredictable numbers.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Insufficient Entropy - (331)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 330 (Use of Insufficiently Random Values) > 331 (Insufficient Entropy)
The software uses an algorithm or scheme that produces insufficient entropy, leaving patterns or clusters of values that are more likely to occur than others.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Incorrect Usage of Seeds in Pseudo-Random Number Generator (PRNG) - (335)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 330 (Use of Insufficiently Random Values) > 335 (Incorrect Usage of Seeds in Pseudo-Random Number Generator (PRNG))
The software uses a Pseudo-Random Number Generator (PRNG) but does not correctly manage seeds.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Use of Cryptographically Weak Pseudo-Random Number Generator (PRNG) - (338)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 330 (Use of Insufficiently Random Values) > 338 (Use of Cryptographically Weak Pseudo-Random Number Generator (PRNG))
The product uses a Pseudo-Random Number Generator (PRNG) in a security context, but the PRNG's algorithm is not cryptographically strong.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Insufficient Verification of Data Authenticity - (345)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 345 (Insufficient Verification of Data Authenticity)
The software does not sufficiently verify the origin or authenticity of data, in a way that causes it to accept invalid data.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Origin Validation Error - (346)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 345 (Insufficient Verification of Data Authenticity) > 346 (Origin Validation Error)
The software does not properly verify that the source of data or communication is valid.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Verification of Cryptographic Signature - (347)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 345 (Insufficient Verification of Data Authenticity) > 347 (Improper Verification of Cryptographic Signature)
The software does not verify, or incorrectly verifies, the cryptographic signature for data.
*CompositeComposite - a Compound Element that consists of two or more distinct weaknesses, in which all weaknesses must be present at the same time in order for a potential vulnerability to arise. Removing any of the weaknesses eliminates or sharply reduces the risk. One weakness, X, can be "broken down" into component weaknesses Y and Z. There can be cases in which one weakness might not be essential to a composite, but changes the nature of the composite when it becomes a vulnerability.Cross-Site Request Forgery (CSRF) - (352)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 345 (Insufficient Verification of Data Authenticity) > 352 (Cross-Site Request Forgery (CSRF))
The web application does not, or can not, sufficiently verify whether a well-formed, valid, consistent request was intentionally provided by the user who submitted the request.Session RidingCross Site Reference ForgeryXSRF
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Validation of Integrity Check Value - (354)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 345 (Insufficient Verification of Data Authenticity) > 354 (Improper Validation of Integrity Check Value)
The software does not validate or incorrectly validates the integrity check values or "checksums" of a message. This may prevent it from detecting if the data has been modified or corrupted in transmission.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Enforcement of Message Integrity During Transmission in a Communication Channel - (924)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 345 (Insufficient Verification of Data Authenticity) > 924 (Improper Enforcement of Message Integrity During Transmission in a Communication Channel)
The software establishes a communication channel with an endpoint and receives a message from that endpoint, but it does not sufficiently ensure that the message was not modified during transmission.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Concurrent Execution using Shared Resource with Improper Synchronization ('Race Condition') - (362)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 362 (Concurrent Execution using Shared Resource with Improper Synchronization ('Race Condition'))
The program contains a code sequence that can run concurrently with other code, and the code sequence requires temporary, exclusive access to a shared resource, but a timing window exists in which the shared resource can be modified by another code sequence that is operating concurrently.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Time-of-check Time-of-use (TOCTOU) Race Condition - (367)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 362 (Concurrent Execution using Shared Resource with Improper Synchronization ('Race Condition')) > 367 (Time-of-check Time-of-use (TOCTOU) Race Condition)
The software checks the state of a resource before using that resource, but the resource's state can change between the check and the use in a way that invalidates the results of the check. This can cause the software to perform invalid actions when the resource is in an unexpected state.TOCTTOUTOCCTOU
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Uncontrolled Resource Consumption - (400)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 400 (Uncontrolled Resource Consumption)
The software does not properly control the allocation and maintenance of a limited resource, thereby enabling an actor to influence the amount of resources consumed, eventually leading to the exhaustion of available resources.Resource Exhaustion
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Allocation of Resources Without Limits or Throttling - (770)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 400 (Uncontrolled Resource Consumption) > 770 (Allocation of Resources Without Limits or Throttling)
The software allocates a reusable resource or group of resources on behalf of an actor without imposing any restrictions on the size or number of resources that can be allocated, in violation of the intended security policy for that actor.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Restriction of Power Consumption - (920)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 400 (Uncontrolled Resource Consumption) > 920 (Improper Restriction of Power Consumption)
The software operates in an environment in which power is a limited resource that cannot be automatically replenished, but the software does not properly restrict the amount of power that its operation consumes.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Improper Resource Shutdown or Release - (404)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 404 (Improper Resource Shutdown or Release)
The program does not release or incorrectly releases a resource before it is made available for re-use.
*VariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.Missing Release of Memory after Effective Lifetime - (401)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 404 (Improper Resource Shutdown or Release) > 401 (Missing Release of Memory after Effective Lifetime)
The software does not sufficiently track and release allocated memory after it has been used, which slowly consumes remaining memory.Memory Leak
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Incomplete Cleanup - (459)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 404 (Improper Resource Shutdown or Release) > 459 (Incomplete Cleanup)
The software does not properly "clean up" and remove temporary or supporting resources after they have been used.Insufficient Cleanup
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Release of Invalid Pointer or Reference - (763)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 404 (Improper Resource Shutdown or Release) > 763 (Release of Invalid Pointer or Reference)
The application attempts to return a memory resource to the system, but calls the wrong release function or calls the appropriate release function incorrectly.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Missing Release of Resource after Effective Lifetime - (772)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 404 (Improper Resource Shutdown or Release) > 772 (Missing Release of Resource after Effective Lifetime)
The software does not release a resource after its effective lifetime has ended, i.e., after the resource is no longer needed.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Interpretation Conflict - (436)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 436 (Interpretation Conflict)
Product A handles inputs or steps differently than Product B, which causes A to perform incorrect actions based on its perception of B's state.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Inconsistent Interpretation of HTTP Requests ('HTTP Request Smuggling') - (444)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 436 (Interpretation Conflict) > 444 (Inconsistent Interpretation of HTTP Requests ('HTTP Request Smuggling'))
When malformed or abnormal HTTP requests are interpreted by one or more entities in the data flow between the user and the web server, such as a proxy or firewall, they can be interpreted inconsistently, allowing the attacker to "smuggle" a request to one device without the other device being aware of it.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Externally Controlled Reference to a Resource in Another Sphere - (610)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 610 (Externally Controlled Reference to a Resource in Another Sphere)
The product uses an externally controlled name or reference that resolves to a resource that is outside of the intended control sphere.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Restriction of Rendered UI Layers or Frames - (1021)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 610 (Externally Controlled Reference to a Resource in Another Sphere) > 1021 (Improper Restriction of Rendered UI Layers or Frames)

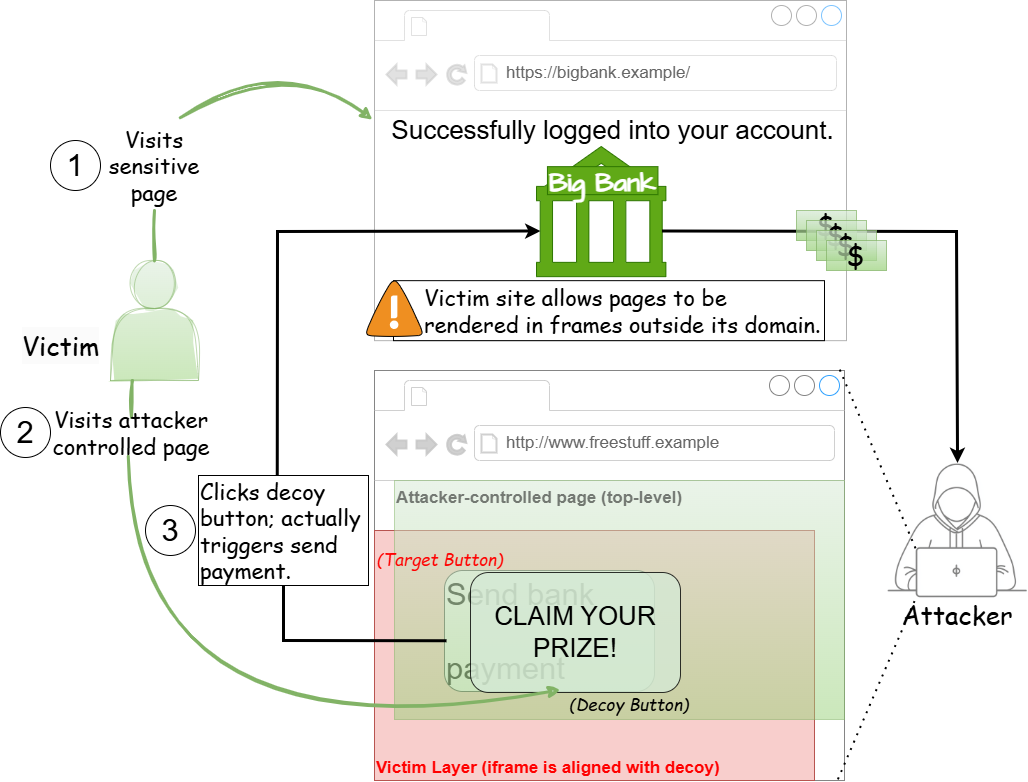

The web application does not restrict or incorrectly restricts frame objects or UI layers that belong to another application or domain, which can lead to user confusion about which interface the user is interacting with.ClickjackingUI Redress AttackTapjacking
*CompositeComposite - a Compound Element that consists of two or more distinct weaknesses, in which all weaknesses must be present at the same time in order for a potential vulnerability to arise. Removing any of the weaknesses eliminates or sharply reduces the risk. One weakness, X, can be "broken down" into component weaknesses Y and Z. There can be cases in which one weakness might not be essential to a composite, but changes the nature of the composite when it becomes a vulnerability.Session Fixation - (384)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 610 (Externally Controlled Reference to a Resource in Another Sphere) > 384 (Session Fixation)
Authenticating a user, or otherwise establishing a new user session, without invalidating any existing session identifier gives an attacker the opportunity to steal authenticated sessions.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.URL Redirection to Untrusted Site ('Open Redirect') - (601)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 610 (Externally Controlled Reference to a Resource in Another Sphere) > 601 (URL Redirection to Untrusted Site ('Open Redirect'))
A web application accepts a user-controlled input that specifies a link to an external site, and uses that link in a Redirect. This simplifies phishing attacks.Open RedirectCross-site RedirectCross-domain Redirect
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Restriction of XML External Entity Reference - (611)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 610 (Externally Controlled Reference to a Resource in Another Sphere) > 611 (Improper Restriction of XML External Entity Reference)
The software processes an XML document that can contain XML entities with URIs that resolve to documents outside of the intended sphere of control, causing the product to embed incorrect documents into its output.XXE
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Server-Side Request Forgery (SSRF) - (918)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 610 (Externally Controlled Reference to a Resource in Another Sphere) > 918 (Server-Side Request Forgery (SSRF))
The web server receives a URL or similar request from an upstream component and retrieves the contents of this URL, but it does not sufficiently ensure that the request is being sent to the expected destination.XSPA
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Improper Synchronization - (662)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 662 (Improper Synchronization)
The software utilizes multiple threads or processes to allow temporary access to a shared resource that can only be exclusive to one process at a time, but it does not properly synchronize these actions, which might cause simultaneous accesses of this resource by multiple threads or processes.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Improper Locking - (667)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 662 (Improper Synchronization) > 667 (Improper Locking)
The software does not properly acquire or release a lock on a resource, leading to unexpected resource state changes and behaviors.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Improper Initialization - (665)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 665 (Improper Initialization)
The software does not initialize or incorrectly initializes a resource, which might leave the resource in an unexpected state when it is accessed or used.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Insecure Default Initialization of Resource - (1188)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 665 (Improper Initialization) > 1188 (Insecure Default Initialization of Resource)
The software initializes or sets a resource with a default that is intended to be changed by the administrator, but the default is not secure.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Use of Uninitialized Resource - (908)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 665 (Improper Initialization) > 908 (Use of Uninitialized Resource)
The software uses or accesses a resource that has not been initialized.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Missing Initialization of Resource - (909)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 665 (Improper Initialization) > 909 (Missing Initialization of Resource)
The software does not initialize a critical resource.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Exposure of Resource to Wrong Sphere - (668)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 668 (Exposure of Resource to Wrong Sphere)
The product exposes a resource to the wrong control sphere, providing unintended actors with inappropriate access to the resource.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Use of Externally-Controlled Format String - (134)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 668 (Exposure of Resource to Wrong Sphere) > 134 (Use of Externally-Controlled Format String)
The software uses a function that accepts a format string as an argument, but the format string originates from an external source.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Untrusted Search Path - (426)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 668 (Exposure of Resource to Wrong Sphere) > 426 (Untrusted Search Path)
The application searches for critical resources using an externally-supplied search path that can point to resources that are not under the application's direct control.Untrusted Path
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Uncontrolled Search Path Element - (427)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 668 (Exposure of Resource to Wrong Sphere) > 427 (Uncontrolled Search Path Element)
The product uses a fixed or controlled search path to find resources, but one or more locations in that path can be under the control of unintended actors.DLL preloadingBinary plantingInsecure library loadingDependency confusion
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Unquoted Search Path or Element - (428)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 668 (Exposure of Resource to Wrong Sphere) > 428 (Unquoted Search Path or Element)
The product uses a search path that contains an unquoted element, in which the element contains whitespace or other separators. This can cause the product to access resources in a parent path.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Files or Directories Accessible to External Parties - (552)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 668 (Exposure of Resource to Wrong Sphere) > 552 (Files or Directories Accessible to External Parties)
The product makes files or directories accessible to unauthorized actors, even though they should not be.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Incorrect Resource Transfer Between Spheres - (669)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 669 (Incorrect Resource Transfer Between Spheres)
The product does not properly transfer a resource/behavior to another sphere, or improperly imports a resource/behavior from another sphere, in a manner that provides unintended control over that resource.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Removal of Sensitive Information Before Storage or Transfer - (212)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 669 (Incorrect Resource Transfer Between Spheres) > 212 (Improper Removal of Sensitive Information Before Storage or Transfer)
The product stores, transfers, or shares a resource that contains sensitive information, but it does not properly remove that information before the product makes the resource available to unauthorized actors.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Unrestricted Upload of File with Dangerous Type - (434)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 669 (Incorrect Resource Transfer Between Spheres) > 434 (Unrestricted Upload of File with Dangerous Type)
The software allows the attacker to upload or transfer files of dangerous types that can be automatically processed within the product's environment.Unrestricted File Upload
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Download of Code Without Integrity Check - (494)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 669 (Incorrect Resource Transfer Between Spheres) > 494 (Download of Code Without Integrity Check)
The product downloads source code or an executable from a remote location and executes the code without sufficiently verifying the origin and integrity of the code.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Reliance on Cookies without Validation and Integrity Checking - (565)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 669 (Incorrect Resource Transfer Between Spheres) > 565 (Reliance on Cookies without Validation and Integrity Checking)
The application relies on the existence or values of cookies when performing security-critical operations, but it does not properly ensure that the setting is valid for the associated user.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Inclusion of Functionality from Untrusted Control Sphere - (829)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 669 (Incorrect Resource Transfer Between Spheres) > 829 (Inclusion of Functionality from Untrusted Control Sphere)
The software imports, requires, or includes executable functionality (such as a library) from a source that is outside of the intended control sphere.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Always-Incorrect Control Flow Implementation - (670)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 670 (Always-Incorrect Control Flow Implementation)
The code contains a control flow path that does not reflect the algorithm that the path is intended to implement, leading to incorrect behavior any time this path is navigated.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Reachable Assertion - (617)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 670 (Always-Incorrect Control Flow Implementation) > 617 (Reachable Assertion)
The product contains an assert() or similar statement that can be triggered by an attacker, which leads to an application exit or other behavior that is more severe than necessary.assertion failure
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Operation on a Resource after Expiration or Release - (672)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 672 (Operation on a Resource after Expiration or Release)
The software uses, accesses, or otherwise operates on a resource after that resource has been expired, released, or revoked.
*VariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.Double Free - (415)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 672 (Operation on a Resource after Expiration or Release) > 415 (Double Free)
The product calls free() twice on the same memory address, potentially leading to modification of unexpected memory locations.Double-free
*VariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.Use After Free - (416)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 672 (Operation on a Resource after Expiration or Release) > 416 (Use After Free)
Referencing memory after it has been freed can cause a program to crash, use unexpected values, or execute code.Dangling pointerUse-After-Free
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Insufficient Session Expiration - (613)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 672 (Operation on a Resource after Expiration or Release) > 613 (Insufficient Session Expiration)
According to WASC, "Insufficient Session Expiration is when a web site permits an attacker to reuse old session credentials or session IDs for authorization."
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Uncontrolled Recursion - (674)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 674 (Uncontrolled Recursion)
The product does not properly control the amount of recursion which takes place, consuming excessive resources, such as allocated memory or the program stack.Stack Exhaustion
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Restriction of Recursive Entity References in DTDs ('XML Entity Expansion') - (776)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 674 (Uncontrolled Recursion) > 776 (Improper Restriction of Recursive Entity References in DTDs ('XML Entity Expansion'))
The software uses XML documents and allows their structure to be defined with a Document Type Definition (DTD), but it does not properly control the number of recursive definitions of entities.XEEBillion Laughs AttackXML Bomb
+PillarPillar - a weakness that is the most abstract type of weakness and represents a theme for all class/base/variant weaknesses related to it. A Pillar is different from a Category as a Pillar is still technically a type of weakness that describes a mistake, while a Category represents a common characteristic used to group related things.Incorrect Calculation - (682)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 682 (Incorrect Calculation)
The software performs a calculation that generates incorrect or unintended results that are later used in security-critical decisions or resource management.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Incorrect Calculation of Buffer Size - (131)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 682 (Incorrect Calculation) > 131 (Incorrect Calculation of Buffer Size)
The software does not correctly calculate the size to be used when allocating a buffer, which could lead to a buffer overflow.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Integer Overflow or Wraparound - (190)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 682 (Incorrect Calculation) > 190 (Integer Overflow or Wraparound)
The software performs a calculation that can produce an integer overflow or wraparound, when the logic assumes that the resulting value will always be larger than the original value. This can introduce other weaknesses when the calculation is used for resource management or execution control.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Integer Underflow (Wrap or Wraparound) - (191)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 682 (Incorrect Calculation) > 191 (Integer Underflow (Wrap or Wraparound))
The product subtracts one value from another, such that the result is less than the minimum allowable integer value, which produces a value that is not equal to the correct result.Integer underflow
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Off-by-one Error - (193)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 682 (Incorrect Calculation) > 193 (Off-by-one Error)
A product calculates or uses an incorrect maximum or minimum value that is 1 more, or 1 less, than the correct value.off-by-five
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Divide By Zero - (369)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 682 (Incorrect Calculation) > 369 (Divide By Zero)
The product divides a value by zero.
*PillarPillar - a weakness that is the most abstract type of weakness and represents a theme for all class/base/variant weaknesses related to it. A Pillar is different from a Category as a Pillar is still technically a type of weakness that describes a mistake, while a Category represents a common characteristic used to group related things.Incorrect Comparison - (697)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 697 (Incorrect Comparison)
The software compares two entities in a security-relevant context, but the comparison is incorrect, which may lead to resultant weaknesses.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Incorrect Type Conversion or Cast - (704)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 704 (Incorrect Type Conversion or Cast)
The software does not correctly convert an object, resource, or structure from one type to a different type.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Incorrect Conversion between Numeric Types - (681)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 704 (Incorrect Type Conversion or Cast) > 681 (Incorrect Conversion between Numeric Types)
When converting from one data type to another, such as long to integer, data can be omitted or translated in a way that produces unexpected values. If the resulting values are used in a sensitive context, then dangerous behaviors may occur.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Access of Resource Using Incompatible Type ('Type Confusion') - (843)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 704 (Incorrect Type Conversion or Cast) > 843 (Access of Resource Using Incompatible Type ('Type Confusion'))
The program allocates or initializes a resource such as a pointer, object, or variable using one type, but it later accesses that resource using a type that is incompatible with the original type.Object Type Confusion
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Use of Incorrectly-Resolved Name or Reference - (706)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 706 (Use of Incorrectly-Resolved Name or Reference)
The software uses a name or reference to access a resource, but the name/reference resolves to a resource that is outside of the intended control sphere.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Handling of Case Sensitivity - (178)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 706 (Use of Incorrectly-Resolved Name or Reference) > 178 (Improper Handling of Case Sensitivity)
The software does not properly account for differences in case sensitivity when accessing or determining the properties of a resource, leading to inconsistent results.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Limitation of a Pathname to a Restricted Directory ('Path Traversal') - (22)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 706 (Use of Incorrectly-Resolved Name or Reference) > 22 (Improper Limitation of a Pathname to a Restricted Directory ('Path Traversal'))
The software uses external input to construct a pathname that is intended to identify a file or directory that is located underneath a restricted parent directory, but the software does not properly neutralize special elements within the pathname that can cause the pathname to resolve to a location that is outside of the restricted directory.Directory traversalPath traversal
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Link Resolution Before File Access ('Link Following') - (59)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 706 (Use of Incorrectly-Resolved Name or Reference) > 59 (Improper Link Resolution Before File Access ('Link Following'))
The software attempts to access a file based on the filename, but it does not properly prevent that filename from identifying a link or shortcut that resolves to an unintended resource.insecure temporary file
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Incorrect Permission Assignment for Critical Resource - (732)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 732 (Incorrect Permission Assignment for Critical Resource)
The product specifies permissions for a security-critical resource in a way that allows that resource to be read or modified by unintended actors.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Incorrect Default Permissions - (276)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 732 (Incorrect Permission Assignment for Critical Resource) > 276 (Incorrect Default Permissions)
During installation, installed file permissions are set to allow anyone to modify those files.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Preservation of Permissions - (281)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 732 (Incorrect Permission Assignment for Critical Resource) > 281 (Improper Preservation of Permissions)
The software does not preserve permissions or incorrectly preserves permissions when copying, restoring, or sharing objects, which can cause them to have less restrictive permissions than intended.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Improper Check for Unusual or Exceptional Conditions - (754)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 754 (Improper Check for Unusual or Exceptional Conditions)
The software does not check or incorrectly checks for unusual or exceptional conditions that are not expected to occur frequently during day to day operation of the software.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Unchecked Return Value - (252)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 754 (Improper Check for Unusual or Exceptional Conditions) > 252 (Unchecked Return Value)
The software does not check the return value from a method or function, which can prevent it from detecting unexpected states and conditions.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improper Check for Dropped Privileges - (273)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 754 (Improper Check for Unusual or Exceptional Conditions) > 273 (Improper Check for Dropped Privileges)
The software attempts to drop privileges but does not check or incorrectly checks to see if the drop succeeded.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.NULL Pointer Dereference - (476)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 754 (Improper Check for Unusual or Exceptional Conditions) > 476 (NULL Pointer Dereference)
A NULL pointer dereference occurs when the application dereferences a pointer that it expects to be valid, but is NULL, typically causing a crash or exit.
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Improper Handling of Exceptional Conditions - (755)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 755 (Improper Handling of Exceptional Conditions)
The software does not handle or incorrectly handles an exceptional condition.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Excessive Iteration - (834)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 834 (Excessive Iteration)
The software performs an iteration or loop without sufficiently limiting the number of times that the loop is executed.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Loop with Unreachable Exit Condition ('Infinite Loop') - (835)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 834 (Excessive Iteration) > 835 (Loop with Unreachable Exit Condition ('Infinite Loop'))
The program contains an iteration or loop with an exit condition that cannot be reached, i.e., an infinite loop.
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Missing Authorization - (862)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 862 (Missing Authorization)
The software does not perform an authorization check when an actor attempts to access a resource or perform an action.AuthZ
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Direct Request ('Forced Browsing') - (425)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 862 (Missing Authorization) > 425 (Direct Request ('Forced Browsing'))
The web application does not adequately enforce appropriate authorization on all restricted URLs, scripts, or files.forced browsing
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Incorrect Authorization - (863)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 863 (Incorrect Authorization)
The software performs an authorization check when an actor attempts to access a resource or perform an action, but it does not correctly perform the check. This allows attackers to bypass intended access restrictions.AuthZ
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Authorization Bypass Through User-Controlled Key - (639)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 863 (Incorrect Authorization) > 639 (Authorization Bypass Through User-Controlled Key)
The system's authorization functionality does not prevent one user from gaining access to another user's data or record by modifying the key value identifying the data.Insecure Direct Object Reference / IDORBroken Object Level Authorization / BOLAHorizontal Authorization
+ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Improper Control of Dynamically-Managed Code Resources - (913)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 913 (Improper Control of Dynamically-Managed Code Resources)
The software does not properly restrict reading from or writing to dynamically-managed code resources such as variables, objects, classes, attributes, functions, or executable instructions or statements.
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Use of Externally-Controlled Input to Select Classes or Code ('Unsafe Reflection') - (470)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 913 (Improper Control of Dynamically-Managed Code Resources) > 470 (Use of Externally-Controlled Input to Select Classes or Code ('Unsafe Reflection'))
The application uses external input with reflection to select which classes or code to use, but it does not sufficiently prevent the input from selecting improper classes or code.Reflection Injection
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Deserialization of Untrusted Data - (502)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 913 (Improper Control of Dynamically-Managed Code Resources) > 502 (Deserialization of Untrusted Data)
The application deserializes untrusted data without sufficiently verifying that the resulting data will be valid.Marshaling, UnmarshalingPickling, UnpicklingPHP Object Injection
*BaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.Improperly Controlled Modification of Dynamically-Determined Object Attributes - (915)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 913 (Improper Control of Dynamically-Managed Code Resources) > 915 (Improperly Controlled Modification of Dynamically-Determined Object Attributes)
The software receives input from an upstream component that specifies multiple attributes, properties, or fields that are to be initialized or updated in an object, but it does not properly control which attributes can be modified.Mass AssignmentAutoBindingPHP Object Injection
*ClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.Insecure Storage of Sensitive Information - (922)
1003 (Weaknesses for Simplified Mapping of Published Vulnerabilities) > 922 (Insecure Storage of Sensitive Information)
The software stores sensitive information without properly limiting read or write access by unauthorized actors.
+ Notes

Maintenance

This view may change in any upcoming CWE version based on the experience of NVD analysts, public feedback, and the CWE Team - especially with respect to the CWE Top 25 analysis.

Maintenance

This view has been modified significantly since its last major revision in 2016 (CWE-635 was used before 2016).
+ References
[REF-1] NIST. "CWE - Common Weakness Enumeration". <http://nvd.nist.gov/cwe.cfm>.
+ View Metrics
CWEs in this viewTotal CWEs
Weaknesses127out of 922
Categories0out of 316
Views0out of 44
Total127out of1282
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2015-12-07CWE Content TeamMITRE
+ Contributions
Contribution DateContributorOrganization
2015-12-07NIST
Provided many relationships.
+ Modifications
Modification DateModifierOrganization
2019-06-20CWE Content TeamMITRE
updated Relationships
2019-09-19CWE Content TeamMITRE
updated Description, Maintenance_Notes, Relationships
2019-09-23CWE Content TeamMITRE
updated Relationships
2021-03-15CWE Content TeamMITRE
updated Maintenance_Notes

View Components

A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z

CWE-843: Access of Resource Using Incompatible Type ('Type Confusion')

Weakness ID: 843
Abstraction: Base
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
The program allocates or initializes a resource such as a pointer, object, or variable using one type, but it later accesses that resource using a type that is incompatible with the original type.
+ Extended Description

When the program accesses the resource using an incompatible type, this could trigger logical errors because the resource does not have expected properties. In languages without memory safety, such as C and C++, type confusion can lead to out-of-bounds memory access.

While this weakness is frequently associated with unions when parsing data with many different embedded object types in C, it can be present in any application that can interpret the same variable or memory location in multiple ways.

This weakness is not unique to C and C++. For example, errors in PHP applications can be triggered by providing array parameters when scalars are expected, or vice versa. Languages such as Perl, which perform automatic conversion of a variable of one type when it is accessed as if it were another type, can also contain these issues.

+ Alternate Terms
Object Type Confusion
+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.704Incorrect Type Conversion or Cast
PeerOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.1287Improper Validation of Specified Type of Input
CanPrecedeClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.119Improper Restriction of Operations within the Bounds of a Memory Buffer
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Software Development" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.136Type Errors
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.704Incorrect Type Conversion or Cast
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Implementation
+ Applicable Platforms
Section HelpThis listing shows possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

C (Undetermined Prevalence)

C++ (Undetermined Prevalence)

+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Availability
Integrity
Confidentiality

Technical Impact: Read Memory; Modify Memory; Execute Unauthorized Code or Commands; DoS: Crash, Exit, or Restart

When a memory buffer is accessed using the wrong type, it could read or write memory out of the bounds of the buffer, if the allocated buffer is smaller than the type that the code is attempting to access, leading to a crash and possibly code execution.
+ Demonstrative Examples

Example 1

The following code uses a union to support the representation of different types of messages. It formats messages differently, depending on their type.

(bad code)
Example Language:
#define NAME_TYPE 1
#define ID_TYPE 2

struct MessageBuffer
{
int msgType;
union {
char *name;
int nameID;
};
};


int main (int argc, char **argv) {
struct MessageBuffer buf;
char *defaultMessage = "Hello World";

buf.msgType = NAME_TYPE;
buf.name = defaultMessage;
printf("Pointer of buf.name is %p\n", buf.name);
/* This particular value for nameID is used to make the code architecture-independent. If coming from untrusted input, it could be any value. */

buf.nameID = (int)(defaultMessage + 1);
printf("Pointer of buf.name is now %p\n", buf.name);
if (buf.msgType == NAME_TYPE) {
printf("Message: %s\n", buf.name);
}
else {
printf("Message: Use ID %d\n", buf.nameID);
}
}

The code intends to process the message as a NAME_TYPE, and sets the default message to "Hello World." However, since both buf.name and buf.nameID are part of the same union, they can act as aliases for the same memory location, depending on memory layout after compilation.

As a result, modification of buf.nameID - an int - can effectively modify the pointer that is stored in buf.name - a string.

Execution of the program might generate output such as:

Pointer of name is 10830
Pointer of name is now 10831
Message: ello World

Notice how the pointer for buf.name was changed, even though buf.name was not explicitly modified.

In this case, the first "H" character of the message is omitted. However, if an attacker is able to fully control the value of buf.nameID, then buf.name could contain an arbitrary pointer, leading to out-of-bounds reads or writes.

Example 2

The following PHP code accepts a value, adds 5, and prints the sum.

(bad code)
Example Language: PHP
$value = $_GET['value'];
$sum = $value + 5;
echo "value parameter is '$value'<p>";
echo "SUM is $sum";

When called with the following query string:

value=123

the program calculates the sum and prints out:

SUM is 128

However, the attacker could supply a query string such as:

value[]=123

The "[]" array syntax causes $value to be treated as an array type, which then generates a fatal error when calculating $sum:

Fatal error: Unsupported operand types in program.php on line 2

Example 3

The following Perl code is intended to look up the privileges for user ID's between 0 and 3, by performing an access of the $UserPrivilegeArray reference. It is expected that only userID 3 is an admin (since this is listed in the third element of the array).

(bad code)
Example Language: Perl
my $UserPrivilegeArray = ["user", "user", "admin", "user"];

my $userID = get_current_user_ID();

if ($UserPrivilegeArray eq "user") {
print "Regular user!\n";
}
else {
print "Admin!\n";
}

print "\$UserPrivilegeArray = $UserPrivilegeArray\n";

In this case, the programmer intended to use "$UserPrivilegeArray->{$userID}" to access the proper position in the array. But because the subscript was omitted, the "user" string was compared to the scalar representation of the $UserPrivilegeArray reference, which might be of the form "ARRAY(0x229e8)" or similar.

Since the logic also "fails open" (CWE-636), the result of this bug is that all users are assigned administrator privileges.

While this is a forced example, it demonstrates how type confusion can have security consequences, even in memory-safe languages.

+ Observed Examples
ReferenceDescription
Type confusion in CSS sequence leads to out-of-bounds read.
Size inconsistency allows code execution, first discovered when it was actively exploited in-the-wild.
Improperly-parsed file containing records of different types leads to code execution when a memory location is interpreted as a different object than intended.
+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1157SEI CERT C Coding Standard - Guidelines 03. Expressions (EXP)
+ Notes

Applicable Platform

This weakness is possible in any type-unsafe programming language.

Research Gap

Type confusion weaknesses have received some attention by applied researchers and major software vendors for C and C++ code. Some publicly-reported vulnerabilities probably have type confusion as a root-cause weakness, but these may be described as "memory corruption" instead. This weakness seems likely to gain prominence in upcoming years.

For other languages, there are very few public reports of type confusion weaknesses. These are probably under-studied. Since many programs rely directly or indirectly on loose typing, a potential "type confusion" behavior might be intentional, possibly requiring more manual analysis.

+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CERT C Secure CodingEXP39-CExactDo not access a variable through a pointer of an incompatible type
+ References
[REF-811] Mark Dowd, Ryan Smith and David Dewey. "Attacking Interoperability". "Type Confusion Vulnerabilities," page 59. 2009. <http://www.azimuthsecurity.com/resources/bh2009_dowd_smith_dewey.pdf>.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 7, "Type Confusion", Page 319. 1st Edition. Addison Wesley. 2006.
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2011-05-15CWE Content TeamMITRE
+ Modifications
Modification DateModifierOrganization
2012-05-11CWE Content TeamMITRE
updated References
2017-11-08CWE Content TeamMITRE
updated Applicable_Platforms, Taxonomy_Mappings
2019-01-03CWE Content TeamMITRE
updated Relationships
2019-06-20CWE Content TeamMITRE
updated Relationships
2020-02-24CWE Content TeamMITRE
updated Relationships
2020-06-25CWE Content TeamMITRE
updated Common_Consequences, Relationships

CWE-824: Access of Uninitialized Pointer

Weakness ID: 824
Abstraction: Base
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
The program accesses or uses a pointer that has not been initialized.
+ Extended Description

If the pointer contains an uninitialized value, then the value might not point to a valid memory location. This could cause the program to read from or write to unexpected memory locations, leading to a denial of service. If the uninitialized pointer is used as a function call, then arbitrary functions could be invoked. If an attacker can influence the portion of uninitialized memory that is contained in the pointer, this weakness could be leveraged to execute code or perform other attacks.

Depending on memory layout, associated memory management behaviors, and program operation, the attacker might be able to influence the contents of the uninitialized pointer, thus gaining more fine-grained control of the memory location to be accessed.

+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.119Improper Restriction of Operations within the Bounds of a Memory Buffer
CanPrecedeBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.125Out-of-bounds Read
CanPrecedeBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.787Out-of-bounds Write
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Software Development" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.465Pointer Issues
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.119Improper Restriction of Operations within the Bounds of a Memory Buffer
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "CISQ Quality Measures (2020)" (CWE-1305)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.119Improper Restriction of Operations within the Bounds of a Memory Buffer
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "CISQ Data Protection Measures" (CWE-1340)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.119Improper Restriction of Operations within the Bounds of a Memory Buffer
+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Confidentiality

Technical Impact: Read Memory

If the uninitialized pointer is used in a read operation, an attacker might be able to read sensitive portions of memory.
Availability

Technical Impact: DoS: Crash, Exit, or Restart

If the uninitialized pointer references a memory location that is not accessible to the program, or points to a location that is "malformed" (such as NULL) or larger than expected by a read or write operation, then a crash may occur.
Integrity
Confidentiality
Availability

Technical Impact: Execute Unauthorized Code or Commands

If the uninitialized pointer is used in a function call, or points to unexpected data in a write operation, then code execution may be possible.
+ Observed Examples
ReferenceDescription
chain: unchecked return value (CWE-252) leads to free of invalid, uninitialized pointer (CWE-824).
Pointer in structure is not initialized, leading to NULL pointer dereference (CWE-476) and system crash.
Free of an uninitialized pointer.
Improper handling of invalid signatures leads to free of invalid pointer.
Invalid encoding triggers free of uninitialized pointer.
Crafted PNG image leads to free of uninitialized pointer.
Crafted GIF image leads to free of uninitialized pointer.
Access of uninitialized pointer might lead to code execution.
Step-based manipulation: invocation of debugging function before the primary initialization function leads to access of an uninitialized pointer and code execution.
Unchecked return values can lead to a write to an uninitialized pointer.
zero-length input leads to free of uninitialized pointer.
Crafted font leads to uninitialized function pointer.
Uninitialized function pointer in freed memory is invoked
LDAP server mishandles malformed BER queries, leading to free of uninitialized memory
Firewall can crash with certain ICMP packets that trigger access of an uninitialized pointer.
LDAP server does not initialize members of structs, which leads to free of uninitialized pointer if an LDAP request fails.
+ Notes

Maintenance

There are close relationships between incorrect pointer dereferences and other weaknesses related to buffer operations. There may not be sufficient community agreement regarding these relationships. Further study is needed to determine when these relationships are chains, composites, perspective/layering, or other types of relationships. As of September 2010, most of the relationships are being captured as chains.

Research Gap

Under-studied and probably under-reported as of September 2010. This weakness has been reported in high-visibility software, but applied vulnerability researchers have only been investigating it since approximately 2008, and there are only a few public reports. Few reports identify weaknesses at such a low level, which makes it more difficult to find and study real-world code examples.

Terminology

Many weaknesses related to pointer dereferences fall under the general term of "memory corruption" or "memory safety." As of September 2010, there is no commonly-used terminology that covers the lower-level variants.
+ References
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 7, "Variable Initialization", Page 312. 1st Edition. Addison Wesley. 2006.
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2010-09-22CWE Content TeamMITRE
+ Modifications
Modification DateModifierOrganization
2012-05-11CWE Content TeamMITRE
updated References
2015-12-07CWE Content TeamMITRE
updated Relationships
2020-02-24CWE Content TeamMITRE
updated Relationships
2020-08-20CWE Content TeamMITRE
updated Relationships
2020-12-10CWE Content TeamMITRE
updated Relationships

CWE-770: Allocation of Resources Without Limits or Throttling

Weakness ID: 770
Abstraction: Base
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
The software allocates a reusable resource or group of resources on behalf of an actor without imposing any restrictions on the size or number of resources that can be allocated, in violation of the intended security policy for that actor.
+ Extended Description

Code frequently has to work with limited resources, so programmers must be careful to ensure that resources are not consumed too quickly, or too easily. Without use of quotas, resource limits, or other protection mechanisms, it can be easy for an attacker to consume many resources by rapidly making many requests, or causing larger resources to be used than is needed. When too many resources are allocated, or if a single resource is too large, then it can prevent the code from working correctly, possibly leading to a denial of service.

+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.665Improper Initialization
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.400Uncontrolled Resource Consumption
ParentOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.774Allocation of File Descriptors or Handles Without Limits or Throttling
ParentOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.789Memory Allocation with Excessive Size Value
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.1325Improperly Controlled Sequential Memory Allocation
CanFollowClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.20Improper Input Validation
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Software Development" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.399Resource Management Errors
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.840Business Logic Errors
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.400Uncontrolled Resource Consumption
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Architectural Concepts" (CWE-1008)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1011Authorize Actors
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Architecture and DesignOMISSION: This weakness is caused by missing a security tactic during the architecture and design phase.
Implementation
Operation
System Configuration
+ Applicable Platforms
Section HelpThis listing shows possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Language-Independent (Often Prevalent)

+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Availability

Technical Impact: DoS: Resource Consumption (CPU); DoS: Resource Consumption (Memory); DoS: Resource Consumption (Other)

When allocating resources without limits, an attacker could prevent other systems, applications, or processes from accessing the same type of resource.
+ Likelihood Of Exploit
High
+ Demonstrative Examples

Example 1

This code allocates a socket and forks each time it receives a new connection.

(bad code)
Example Language:
sock=socket(AF_INET, SOCK_STREAM, 0);
while (1) {
newsock=accept(sock, ...);
printf("A connection has been accepted\n");
pid = fork();
}

The program does not track how many connections have been made, and it does not limit the number of connections. Because forking is a relatively expensive operation, an attacker would be able to cause the system to run out of CPU, processes, or memory by making a large number of connections. Alternatively, an attacker could consume all available connections, preventing others from accessing the system remotely.

Example 2

In the following example a server socket connection is used to accept a request to store data on the local file system using a specified filename. The method openSocketConnection establishes a server socket to accept requests from a client. When a client establishes a connection to this service the getNextMessage method is first used to retrieve from the socket the name of the file to store the data, the openFileToWrite method will validate the filename and open a file to write to on the local file system. The getNextMessage is then used within a while loop to continuously read data from the socket and output the data to the file until there is no longer any data from the socket.

(bad code)
Example Language:
int writeDataFromSocketToFile(char *host, int port)
{

char filename[FILENAME_SIZE];
char buffer[BUFFER_SIZE];
int socket = openSocketConnection(host, port);

if (socket < 0) {
printf("Unable to open socket connection");
return(FAIL);
}
if (getNextMessage(socket, filename, FILENAME_SIZE) > 0) {
if (openFileToWrite(filename) > 0) {
while (getNextMessage(socket, buffer, BUFFER_SIZE) > 0){
if (!(writeToFile(buffer) > 0))
break;
}
}
closeFile();
}
closeSocket(socket);
}

This example creates a situation where data can be dumped to a file on the local file system without any limits on the size of the file. This could potentially exhaust file or disk resources and/or limit other clients' ability to access the service.

Example 3

In the following example, the processMessage method receives a two dimensional character array containing the message to be processed. The two-dimensional character array contains the length of the message in the first character array and the message body in the second character array. The getMessageLength method retrieves the integer value of the length from the first character array. After validating that the message length is greater than zero, the body character array pointer points to the start of the second character array of the two-dimensional character array and memory is allocated for the new body character array.

(bad code)
Example Language:

/* process message accepts a two-dimensional character array of the form [length][body] containing the message to be processed */
int processMessage(char **message)
{
char *body;

int length = getMessageLength(message[0]);

if (length > 0) {
body = &message[1][0];
processMessageBody(body);
return(SUCCESS);
}
else {
printf("Unable to process message; invalid message length");
return(FAIL);
}
}

This example creates a situation where the length of the body character array can be very large and will consume excessive memory, exhausting system resources. This can be avoided by restricting the length of the second character array with a maximum length check

Also, consider changing the type from 'int' to 'unsigned int', so that you are always guaranteed that the number is positive. This might not be possible if the protocol specifically requires allowing negative values, or if you cannot control the return value from getMessageLength(), but it could simplify the check to ensure the input is positive, and eliminate other errors such as signed-to-unsigned conversion errors (CWE-195) that may occur elsewhere in the code.

(good code)
Example Language:
unsigned int length = getMessageLength(message[0]);
if ((length > 0) && (length < MAX_LENGTH)) {...}

Example 4

In the following example, a server object creates a server socket and accepts client connections to the socket. For every client connection to the socket a separate thread object is generated using the ClientSocketThread class that handles request made by the client through the socket.

(bad code)
Example Language: Java
public void acceptConnections() {
try {
ServerSocket serverSocket = new ServerSocket(SERVER_PORT);
int counter = 0;
boolean hasConnections = true;
while (hasConnections) {
Socket client = serverSocket.accept();
Thread t = new Thread(new ClientSocketThread(client));
t.setName(client.getInetAddress().getHostName() + ":" + counter++);
t.start();
}
serverSocket.close();


} catch (IOException ex) {...}
}

In this example there is no limit to the number of client connections and client threads that are created. Allowing an unlimited number of client connections and threads could potentially overwhelm the system and system resources.

The server should limit the number of client connections and the client threads that are created. This can be easily done by creating a thread pool object that limits the number of threads that are generated.

(good code)
Example Language: Java
public static final int SERVER_PORT = 4444;
public static final int MAX_CONNECTIONS = 10;
...

public void acceptConnections() {
try {
ServerSocket serverSocket = new ServerSocket(SERVER_PORT);
int counter = 0;
boolean hasConnections = true;
while (hasConnections) {
hasConnections = checkForMoreConnections();
Socket client = serverSocket.accept();
Thread t = new Thread(new ClientSocketThread(client));
t.setName(client.getInetAddress().getHostName() + ":" + counter++);
ExecutorService pool = Executors.newFixedThreadPool(MAX_CONNECTIONS);
pool.execute(t);
}
serverSocket.close();


} catch (IOException ex) {...}
}

Example 5

An unnamed web site allowed a user to purchase tickets for an event. A menu option allowed the user to purchase up to 10 tickets, but the back end did not restrict the actual number of tickets that could be purchased.

Example 5 References:
[REF-667] Rafal Los. "Real-Life Example of a 'Business Logic Defect' (Screen Shots!)". 2011. <http://h30501.www3.hp.com/t5/Following-the-White-Rabbit-A/Real-Life-Example-of-a-Business-Logic-Defect-Screen-Shots/ba-p/22581>.

Example 6

Here the problem is that every time a connection is made, more memory is allocated. So if one just opened up more and more connections, eventually the machine would run out of memory.

(bad code)
Example Language:
bar connection() {
foo = malloc(1024);
return foo;
}

endConnection(bar foo) {
free(foo);
}

int main() {
while(1) {
foo=connection();
}

endConnection(foo)
}
+ Observed Examples
ReferenceDescription
Language interpreter does not restrict the number of temporary files being created when handling a MIME request with a large number of parts..
Driver does not use a maximum width when invoking sscanf style functions, causing stack consumption.
Large integer value for a length property in an object causes a large amount of memory allocation.
Product allows exhaustion of file descriptors when processing a large number of TCP packets.
Communication product allows memory consumption with a large number of SIP requests, which cause many sessions to be created.
Product allows attackers to cause a denial of service via a large number of directives, each of which opens a separate window.
CMS does not restrict the number of searches that can occur simultaneously, leading to resource exhaustion.
web application scanner attempts to read an excessively large file created by a user, causing process termination
+ Potential Mitigations

Phase: Requirements

Clearly specify the minimum and maximum expectations for capabilities, and dictate which behaviors are acceptable when resource allocation reaches limits.

Phase: Architecture and Design

Limit the amount of resources that are accessible to unprivileged users. Set per-user limits for resources. Allow the system administrator to define these limits. Be careful to avoid CWE-410.

Phase: Architecture and Design

Design throttling mechanisms into the system architecture. The best protection is to limit the amount of resources that an unauthorized user can cause to be expended. A strong authentication and access control model will help prevent such attacks from occurring in the first place, and it will help the administrator to identify who is committing the abuse. The login application should be protected against DoS attacks as much as possible. Limiting the database access, perhaps by caching result sets, can help minimize the resources expended. To further limit the potential for a DoS attack, consider tracking the rate of requests received from users and blocking requests that exceed a defined rate threshold.

Phase: Implementation

Strategy: Input Validation

Assume all input is malicious. Use an "accept known good" input validation strategy, i.e., use a list of acceptable inputs that strictly conform to specifications. Reject any input that does not strictly conform to specifications, or transform it into something that does.

When performing input validation, consider all potentially relevant properties, including length, type of input, the full range of acceptable values, missing or extra inputs, syntax, consistency across related fields, and conformance to business rules. As an example of business rule logic, "boat" may be syntactically valid because it only contains alphanumeric characters, but it is not valid if the input is only expected to contain colors such as "red" or "blue."

Do not rely exclusively on looking for malicious or malformed inputs. This is likely to miss at least one undesirable input, especially if the code's environment changes. This can give attackers enough room to bypass the intended validation. However, denylists can be useful for detecting potential attacks or determining which inputs are so malformed that they should be rejected outright.

Note: This will only be applicable to cases where user input can influence the size or frequency of resource allocations.

Phase: Architecture and Design

For any security checks that are performed on the client side, ensure that these checks are duplicated on the server side, in order to avoid CWE-602. Attackers can bypass the client-side checks by modifying values after the checks have been performed, or by changing the client to remove the client-side checks entirely. Then, these modified values would be submitted to the server.

Phase: Architecture and Design

Mitigation of resource exhaustion attacks requires that the target system either:

  • recognizes the attack and denies that user further access for a given amount of time, typically by using increasing time delays
  • uniformly throttles all requests in order to make it more difficult to consume resources more quickly than they can again be freed.

The first of these solutions is an issue in itself though, since it may allow attackers to prevent the use of the system by a particular valid user. If the attacker impersonates the valid user, they may be able to prevent the user from accessing the server in question.

The second solution can be difficult to effectively institute -- and even when properly done, it does not provide a full solution. It simply requires more resources on the part of the attacker.

Phase: Architecture and Design

Ensure that protocols have specific limits of scale placed on them.

Phases: Architecture and Design; Implementation

If the program must fail, ensure that it fails gracefully (fails closed). There may be a temptation to simply let the program fail poorly in cases such as low memory conditions, but an attacker may be able to assert control before the software has fully exited. Alternately, an uncontrolled failure could cause cascading problems with other downstream components; for example, the program could send a signal to a downstream process so the process immediately knows that a problem has occurred and has a better chance of recovery.

Ensure that all failures in resource allocation place the system into a safe posture.

Phases: Operation; Architecture and Design

Strategy: Resource Limitation

Use resource-limiting settings provided by the operating system or environment. For example, when managing system resources in POSIX, setrlimit() can be used to set limits for certain types of resources, and getrlimit() can determine how many resources are available. However, these functions are not available on all operating systems.

When the current levels get close to the maximum that is defined for the application (see CWE-770), then limit the allocation of further resources to privileged users; alternately, begin releasing resources for less-privileged users. While this mitigation may protect the system from attack, it will not necessarily stop attackers from adversely impacting other users.

Ensure that the application performs the appropriate error checks and error handling in case resources become unavailable (CWE-703).

+ Detection Methods

Manual Static Analysis

Manual static analysis can be useful for finding this weakness, but it might not achieve desired code coverage within limited time constraints. If denial-of-service is not considered a significant risk, or if there is strong emphasis on consequences such as code execution, then manual analysis may not focus on this weakness at all.

Fuzzing

While fuzzing is typically geared toward finding low-level implementation bugs, it can inadvertently find uncontrolled resource allocation problems. This can occur when the fuzzer generates a large number of test cases but does not restart the targeted software in between test cases. If an individual test case produces a crash, but it does not do so reliably, then an inability to limit resource allocation may be the cause.

When the allocation is directly affected by numeric inputs, then fuzzing may produce indications of this weakness.

Effectiveness: Opportunistic

Automated Dynamic Analysis

Certain automated dynamic analysis techniques may be effective in producing side effects of uncontrolled resource allocation problems, especially with resources such as processes, memory, and connections. The technique may involve generating a large number of requests to the software within a short time frame. Manual analysis is likely required to interpret the results.

Automated Static Analysis

Specialized configuration or tuning may be required to train automated tools to recognize this weakness.

Automated static analysis typically has limited utility in recognizing unlimited allocation problems, except for the missing release of program-independent system resources such as files, sockets, and processes, or unchecked arguments to memory. For system resources, automated static analysis may be able to detect circumstances in which resources are not released after they have expired, or if too much of a resource is requested at once, as can occur with memory. Automated analysis of configuration files may be able to detect settings that do not specify a maximum value.

Automated static analysis tools will not be appropriate for detecting exhaustion of custom resources, such as an intended security policy in which a bulletin board user is only allowed to make a limited number of posts per day.

+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.8022010 Top 25 - Risky Resource Management
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.857The CERT Oracle Secure Coding Standard for Java (2011) Chapter 14 - Input Output (FIO)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.858The CERT Oracle Secure Coding Standard for Java (2011) Chapter 15 - Serialization (SER)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.861The CERT Oracle Secure Coding Standard for Java (2011) Chapter 18 - Miscellaneous (MSC)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.8672011 Top 25 - Weaknesses On the Cusp
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.876CERT C++ Secure Coding Section 08 - Memory Management (MEM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.877CERT C++ Secure Coding Section 09 - Input Output (FIO)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.985SFP Secondary Cluster: Unrestricted Consumption
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1147SEI CERT Oracle Secure Coding Standard for Java - Guidelines 13. Input Output (FIO)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1148SEI CERT Oracle Secure Coding Standard for Java - Guidelines 14. Serialization (SER)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1152SEI CERT Oracle Secure Coding Standard for Java - Guidelines 49. Miscellaneous (MSC)
+ Notes

Relationship

This entry is different from uncontrolled resource consumption (CWE-400) in that there are other weaknesses that are related to inability to control resource consumption, such as holding on to a resource too long after use, or not correctly keeping track of active resources so that they can be managed and released when they are finished (CWE-771).

Theoretical

Vulnerability theory is largely about how behaviors and resources interact. "Resource exhaustion" can be regarded as either a consequence or an attack, depending on the perspective. This entry is an attempt to reflect one of the underlying weaknesses that enable these attacks (or consequences) to take place.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
The CERT Oracle Secure Coding Standard for Java (2011)FIO04-JClose resources when they are no longer needed
The CERT Oracle Secure Coding Standard for Java (2011)SER12-JAvoid memory and resource leaks during serialization
The CERT Oracle Secure Coding Standard for Java (2011)MSC05-JDo not exhaust heap space
+ References
[REF-386] Joao Antunes, Nuno Ferreira Neves and Paulo Verissimo. "Detection and Prediction of Resource-Exhaustion Vulnerabilities". Proceedings of the IEEE International Symposium on Software Reliability Engineering (ISSRE). 2008-11. <http://homepages.di.fc.ul.pt/~nuno/PAPERS/ISSRE08.pdf>.
[REF-387] D.J. Bernstein. "Resource exhaustion". <http://cr.yp.to/docs/resources.html>.
[REF-388] Pascal Meunier. "Resource exhaustion". Secure Programming Educational Material. 2004. <http://homes.cerias.purdue.edu/~pmeunier/secprog/sanitized/class1/6.resource%20exhaustion.ppt>.
[REF-7] Michael Howard and David LeBlanc. "Writing Secure Code". Chapter 17, "Protecting Against Denial of Service Attacks" Page 517. 2nd Edition. Microsoft Press. 2002-12-04. <https://www.microsoftpressstore.com/store/writing-secure-code-9780735617223>.
[REF-672] Frank Kim. "Top 25 Series - Rank 22 - Allocation of Resources Without Limits or Throttling". SANS Software Security Institute. 2010-03-23. <http://blogs.sans.org/appsecstreetfighter/2010/03/23/top-25-series-rank-22-allocation-of-resources-without-limits-or-throttling/>.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 10, "Resource Limits", Page 574. 1st Edition. Addison Wesley. 2006.
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2009-05-13CWE Content TeamMITRE
+ Modifications
Modification DateModifierOrganization
2009-07-27CWE Content TeamMITRE
updated Related_Attack_Patterns
2009-10-29CWE Content TeamMITRE
updated Relationships
2009-12-28CWE Content TeamMITRE
updated Applicable_Platforms, Demonstrative_Examples, Detection_Factors, Observed_Examples, References, Time_of_Introduction
2010-02-16CWE Content TeamMITRE
updated Common_Consequences, Detection_Factors, Potential_Mitigations, References, Related_Attack_Patterns, Relationships
2010-04-05CWE Content TeamMITRE
updated Common_Consequences, Demonstrative_Examples, Related_Attack_Patterns
2010-06-21CWE Content TeamMITRE
updated Common_Consequences, Potential_Mitigations, References
2010-09-27CWE Content TeamMITRE
updated Demonstrative_Examples, Potential_Mitigations
2011-03-29CWE Content TeamMITRE
updated Demonstrative_Examples, Detection_Factors, Relationships
2011-06-01CWE Content TeamMITRE
updated Common_Consequences, Relationships, Taxonomy_Mappings
2011-06-27CWE Content TeamMITRE
updated Relationships
2011-09-13CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Demonstrative_Examples, References, Related_Attack_Patterns, Relationships, Taxonomy_Mappings
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2014-02-18CWE Content TeamMITRE
updated Related_Attack_Patterns
2014-06-23CWE Content TeamMITRE
updated Related_Attack_Patterns
2014-07-30CWE Content TeamMITRE
updated Relationships
2015-12-07CWE Content TeamMITRE
updated Related_Attack_Patterns
2017-05-03CWE Content TeamMITRE
updated Related_Attack_Patterns
2017-11-08CWE Content TeamMITRE
updated Demonstrative_Examples, Likelihood_of_Exploit, Modes_of_Introduction, Potential_Mitigations, References, Relationships, Taxonomy_Mappings
2018-03-27CWE Content TeamMITRE
updated References
2019-01-03CWE Content TeamMITRE
updated Demonstrative_Examples, Description, Relationships, Taxonomy_Mappings
2019-06-20CWE Content TeamMITRE
updated Related_Attack_Patterns, Relationships
2020-02-24CWE Content TeamMITRE
updated Potential_Mitigations, Related_Attack_Patterns, Relationships
2020-06-25CWE Content TeamMITRE
updated Applicable_Platforms, Description, Maintenance_Notes, Potential_Mitigations, Relationship_Notes, Relationships
2020-12-10CWE Content TeamMITRE
updated Relationships
2021-07-20CWE Content TeamMITRE
updated Observed_Examples

CWE-670: Always-Incorrect Control Flow Implementation

Weakness ID: 670
Abstraction: Class
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The code contains a control flow path that does not reflect the algorithm that the path is intended to implement, leading to incorrect behavior any time this path is navigated.
+ Extended Description
This weakness captures cases in which a particular code segment is always incorrect with respect to the algorithm that it is implementing. For example, if a C programmer intends to include multiple statements in a single block but does not include the enclosing braces (CWE-483), then the logic is always incorrect. This issue is in contrast to most weaknesses in which the code usually behaves correctly, except when it is externally manipulated in malicious ways.
+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfPillarPillar - a weakness that is the most abstract type of weakness and represents a theme for all class/base/variant weaknesses related to it. A Pillar is different from a Category as a Pillar is still technically a type of weakness that describes a mistake, while a Category represents a common characteristic used to group related things.691Insufficient Control Flow Management
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.480Use of Incorrect Operator
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.483Incorrect Block Delimitation
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.484Omitted Break Statement in Switch
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.617Reachable Assertion
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.698Execution After Redirect (EAR)
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.783Operator Precedence Logic Error
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.617Reachable Assertion
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Architecture and Design
ImplementationThis issue typically appears in rarely-tested code, since the "always-incorrect" nature will be detected as a bug during normal usage.
+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Other

Technical Impact: Other; Alter Execution Logic

+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.977SFP Secondary Cluster: Design
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).1003Weaknesses for Simplified Mapping of Published Vulnerabilities
+ Notes

Maintenance

This node could possibly be split into lower-level nodes. "Early Return" is for returning control to the caller too soon (e.g., CWE-584). "Excess Return" is when control is returned too far up the call stack (CWE-600, CWE-395). "Improper control limitation" occurs when the product maintains control at a lower level of execution, when control should be returned "further" up the call stack (CWE-455). "Incorrect syntax" covers code that's "just plain wrong" such as CWE-484 and CWE-483.
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2008-04-11CWE Content TeamMITRE
+ Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Description, Relationships, Other_Notes
2009-07-27CWE Content TeamMITRE
updated Maintenance_Notes, Modes_of_Introduction, Other_Notes, Relationships
2011-06-01CWE Content TeamMITRE
updated Common_Consequences, Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2014-07-30CWE Content TeamMITRE
updated Relationships
2017-01-19CWE Content TeamMITRE
updated Relationships
2017-11-08CWE Content TeamMITRE
updated Relationships
2019-06-20CWE Content TeamMITRE
updated Relationships
2020-02-24CWE Content TeamMITRE
updated Relationships, Time_of_Introduction

CWE-294: Authentication Bypass by Capture-replay

Weakness ID: 294
Abstraction: Base
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
A capture-replay flaw exists when the design of the software makes it possible for a malicious user to sniff network traffic and bypass authentication by replaying it to the server in question to the same effect as the original message (or with minor changes).
+ Extended Description
Capture-replay attacks are common and can be difficult to defeat without cryptography. They are a subset of network injection attacks that rely on observing previously-sent valid commands, then changing them slightly if necessary and resending the same commands to the server.
+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.287Improper Authentication
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Software Development" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1211Authentication Errors
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.287Improper Authentication
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Architectural Concepts" (CWE-1008)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1010Authenticate Actors
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Architecture and DesignCOMMISSION: This weakness refers to an incorrect design related to an architectural security tactic.
+ Applicable Platforms
Section HelpThis listing shows possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Language-Independent (Undetermined Prevalence)

+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Access Control

Technical Impact: Gain Privileges or Assume Identity

Messages sent with a capture-relay attack allow access to resources which are not otherwise accessible without proper authentication.
+ Likelihood Of Exploit
High
+ Observed Examples
ReferenceDescription
product authentication succeeds if user-provided MD5 hash matches the hash in its database; this can be subjected to replay attacks.
Chain: cleartext transmission of the MD5 hash of password (CWE-319) enables attacks against a server that is susceptible to replay (CWE-294).
+ Potential Mitigations

Phase: Architecture and Design

Utilize some sequence or time stamping functionality along with a checksum which takes this into account in order to ensure that messages can be parsed only once.

Phase: Architecture and Design

Since any attacker who can listen to traffic can see sequence numbers, it is necessary to sign messages with some kind of cryptography to ensure that sequence numbers are not simply doctored along with content.
+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.956SFP Secondary Cluster: Channel Attack
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
PLOVERAuthentication bypass by replay
CLASPCapture-replay
+ References
[REF-18] Secure Software, Inc.. "The CLASP Application Security Process". 2005. <https://cwe.mitre.org/documents/sources/TheCLASPApplicationSecurityProcess.pdf>.
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2006-07-19PLOVER
+ Modifications
Modification DateModifierOrganization
2008-09-08CWE Content TeamMITRE
updated Common_Consequences, Relationships, Other_Notes, Taxonomy_Mappings
2009-05-27CWE Content TeamMITRE
updated Related_Attack_Patterns
2009-07-27CWE Content TeamMITRE
updated Description, Other_Notes, Potential_Mitigations
2009-10-29CWE Content TeamMITRE
updated Observed_Examples
2011-06-01CWE Content TeamMITRE
updated Common_Consequences, Demonstrative_Examples
2012-05-11CWE Content TeamMITRE
updated Observed_Examples, Relationships
2014-07-30CWE Content TeamMITRE
updated Relationships
2017-05-03CWE Content TeamMITRE
updated Relationships
2017-11-08CWE Content TeamMITRE
updated Applicable_Platforms, Modes_of_Introduction, Relationships
2019-06-20CWE Content TeamMITRE
updated Relationships
2020-02-24CWE Content TeamMITRE
updated References, Relationships
2020-08-20CWE Content TeamMITRE
updated Related_Attack_Patterns

CWE-290: Authentication Bypass by Spoofing

Weakness ID: 290
Abstraction: Base
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
This attack-focused weakness is caused by improperly implemented authentication schemes that are subject to spoofing attacks.
+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.287Improper Authentication
ParentOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.291Reliance on IP Address for Authentication
ParentOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.293Using Referer Field for Authentication
ParentOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.350Reliance on Reverse DNS Resolution for a Security-Critical Action
PeerOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.602Client-Side Enforcement of Server-Side Security
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Software Development" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1211Authentication Errors
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.287Improper Authentication
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Architectural Concepts" (CWE-1008)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1010Authenticate Actors
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Architecture and DesignCOMMISSION: This weakness refers to an incorrect design related to an architectural security tactic.
Implementation
+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Access Control

Technical Impact: Bypass Protection Mechanism; Gain Privileges or Assume Identity

This weakness can allow an attacker to access resources which are not otherwise accessible without proper authentication.
+ Demonstrative Examples

Example 1

The following code authenticates users.

(bad code)
Example Language: Java
String sourceIP = request.getRemoteAddr();
if (sourceIP != null && sourceIP.equals(APPROVED_IP)) {
authenticated = true;
}

The authentication mechanism implemented relies on an IP address for source validation. If an attacker is able to spoof the IP, they may be able to bypass the authentication mechanism.

Example 2

Both of these examples check if a request is from a trusted address before responding to the request.

(bad code)
Example Language:
sd = socket(AF_INET, SOCK_DGRAM, 0);
serv.sin_family = AF_INET;
serv.sin_addr.s_addr = htonl(INADDR_ANY);
servr.sin_port = htons(1008);
bind(sd, (struct sockaddr *) & serv, sizeof(serv));

while (1) {
memset(msg, 0x0, MAX_MSG);
clilen = sizeof(cli);
if (inet_ntoa(cli.sin_addr)==getTrustedAddress()) {
n = recvfrom(sd, msg, MAX_MSG, 0, (struct sockaddr *) & cli, &clilen);
}
}
(bad code)
Example Language: Java
while(true) {
DatagramPacket rp=new DatagramPacket(rData,rData.length);
outSock.receive(rp);
String in = new String(p.getData(),0, rp.getLength());
InetAddress clientIPAddress = rp.getAddress();
int port = rp.getPort();

if (isTrustedAddress(clientIPAddress) & secretKey.equals(in)) {
out = secret.getBytes();
DatagramPacket sp =new DatagramPacket(out,out.length, IPAddress, port); outSock.send(sp);
}
}

The code only verifies the address as stored in the request packet. An attacker can spoof this address, thus impersonating a trusted client.

Example 3

The following code samples use a DNS lookup in order to decide whether or not an inbound request is from a trusted host. If an attacker can poison the DNS cache, they can gain trusted status.

(bad code)
Example Language:
struct hostent *hp;struct in_addr myaddr;
char* tHost = "trustme.example.com";
myaddr.s_addr=inet_addr(ip_addr_string);

hp = gethostbyaddr((char *) &myaddr, sizeof(struct in_addr), AF_INET);
if (hp && !strncmp(hp->h_name, tHost, sizeof(tHost))) {
trusted = true;
} else {
trusted = false;
}
(bad code)
Example Language: Java
String ip = request.getRemoteAddr();
InetAddress addr = InetAddress.getByName(ip);
if (addr.getCanonicalHostName().endsWith("trustme.com")) {
trusted = true;
}
(bad code)
Example Language: C#
IPAddress hostIPAddress = IPAddress.Parse(RemoteIpAddress);
IPHostEntry hostInfo = Dns.GetHostByAddress(hostIPAddress);
if (hostInfo.HostName.EndsWith("trustme.com")) {
trusted = true;
}

IP addresses are more reliable than DNS names, but they can also be spoofed. Attackers can easily forge the source IP address of the packets they send, but response packets will return to the forged IP address. To see the response packets, the attacker has to sniff the traffic between the victim machine and the forged IP address. In order to accomplish the required sniffing, attackers typically attempt to locate themselves on the same subnet as the victim machine. Attackers may be able to circumvent this requirement by using source routing, but source routing is disabled across much of the Internet today. In summary, IP address verification can be a useful part of an authentication scheme, but it should not be the single factor required for authentication.

+ Observed Examples
ReferenceDescription
VOIP product allows authentication bypass using 127.0.0.1 in the Host header.
+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.956SFP Secondary Cluster: Channel Attack
+ Notes

Relationship

This can be resultant from insufficient verification.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
PLOVERAuthentication bypass by spoofing
+ References
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 3, "Spoofing and Identification", Page 72. 1st Edition. Addison Wesley. 2006.
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2006-07-19PLOVER
+ Modifications
Modification DateModifierOrganization
2008-07-01Sean EidemillerCigital
added/updated demonstrative examples
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Description, Relationships, Relationship_Notes, Taxonomy_Mappings
2009-07-27CWE Content TeamMITRE
updated Relationship_Notes
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2012-05-11CWE Content TeamMITRE
updated Common_Consequences, Demonstrative_Examples, Observed_Examples, References, Related_Attack_Patterns, Relationships
2013-07-17CWE Content TeamMITRE
updated Relationships
2014-02-18CWE Content TeamMITRE
updated Related_Attack_Patterns
2014-07-30CWE Content TeamMITRE
updated Demonstrative_Examples, Relationships
2017-05-03CWE Content TeamMITRE
updated Relationships
2017-11-08CWE Content TeamMITRE
updated Demonstrative_Examples, Modes_of_Introduction, Relationships
2019-06-20CWE Content TeamMITRE
updated Related_Attack_Patterns, Relationships
2020-02-24CWE Content TeamMITRE
updated Relationships
2021-07-20CWE Content TeamMITRE
updated Related_Attack_Patterns

CWE-639: Authorization Bypass Through User-Controlled Key

Weakness ID: 639
Abstraction: Base
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
The system's authorization functionality does not prevent one user from gaining access to another user's data or record by modifying the key value identifying the data.
+ Extended Description

Retrieval of a user record occurs in the system based on some key value that is under user control. The key would typically identify a user-related record stored in the system and would be used to lookup that record for presentation to the user. It is likely that an attacker would have to be an authenticated user in the system. However, the authorization process would not properly check the data access operation to ensure that the authenticated user performing the operation has sufficient entitlements to perform the requested data access, hence bypassing any other authorization checks present in the system.

For example, attackers can look at places where user specific data is retrieved (e.g. search screens) and determine whether the key for the item being looked up is controllable externally. The key may be a hidden field in the HTML form field, might be passed as a URL parameter or as an unencrypted cookie variable, then in each of these cases it will be possible to tamper with the key value.

One manifestation of this weakness is when a system uses sequential or otherwise easily-guessable session IDs that would allow one user to easily switch to another user's session and read/modify their data.

+ Alternate Terms
Insecure Direct Object Reference / IDOR:
The "Insecure Direct Object Reference" term, as described in the OWASP Top Ten, is broader than this CWE because it also covers path traversal (CWE-22). Within the context of vulnerability theory, there is a similarity between the OWASP concept and CWE-706: Use of Incorrectly-Resolved Name or Reference.
Broken Object Level Authorization / BOLA:
BOLA is used in the 2019 OWASP API Security Top 10 and is said to be the same as IDOR.
Horizontal Authorization:
"Horizontal Authorization" is used to describe situations in which two users have the same privilege level, but must be prevented from accessing each other's resources. This is fairly common when using key-based access to resources in a multi-user context.
+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.863Incorrect Authorization
ParentOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.566Authorization Bypass Through User-Controlled SQL Primary Key
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Software Development" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1212Authorization Errors
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.840Business Logic Errors
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.863Incorrect Authorization
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Architectural Concepts" (CWE-1008)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1011Authorize Actors
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "CISQ Data Protection Measures" (CWE-1340)
NatureTypeIDName
ChildOfPillarPillar - a weakness that is the most abstract type of weakness and represents a theme for all class/base/variant weaknesses related to it. A Pillar is different from a Category as a Pillar is still technically a type of weakness that describes a mistake, while a Category represents a common characteristic used to group related things.284Improper Access Control
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Architecture and DesignREALIZATION: This weakness is caused during implementation of an architectural security tactic.
+ Applicable Platforms
Section HelpThis listing shows possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Language-Independent (Undetermined Prevalence)

+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Access Control

Technical Impact: Bypass Protection Mechanism

Access control checks for specific user data or functionality can be bypassed.
Access Control

Technical Impact: Gain Privileges or Assume Identity

Horizontal escalation of privilege is possible (one user can view/modify information of another user).
Access Control

Technical Impact: Gain Privileges or Assume Identity

Vertical escalation of privilege is possible if the user-controlled key is actually a flag that indicates administrator status, allowing the attacker to gain administrative access.
+ Likelihood Of Exploit
High
+ Potential Mitigations

Phase: Architecture and Design

For each and every data access, ensure that the user has sufficient privilege to access the record that is being requested.

Phases: Architecture and Design; Implementation

Make sure that the key that is used in the lookup of a specific user's record is not controllable externally by the user or that any tampering can be detected.

Phase: Architecture and Design

Use encryption in order to make it more difficult to guess other legitimate values of the key or associate a digital signature with the key so that the server can verify that there has been no tampering.
+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.715OWASP Top Ten 2007 Category A4 - Insecure Direct Object Reference
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.723OWASP Top Ten 2004 Category A2 - Broken Access Control
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.813OWASP Top Ten 2010 Category A4 - Insecure Direct Object References
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.932OWASP Top Ten 2013 Category A4 - Insecure Direct Object References
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.945SFP Secondary Cluster: Insecure Resource Access
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1031OWASP Top Ten 2017 Category A5 - Broken Access Control
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2008-01-30Evgeny LebanidzeCigital
+ Modifications
Modification DateModifierOrganization
2008-09-08CWE Content TeamMITRE
updated Common_Consequences, Relationships, Type
2008-10-14CWE Content TeamMITRE
updated Description
2009-03-10CWE Content TeamMITRE
updated Relationships
2009-05-27CWE Content TeamMITRE
updated Relationships
2009-10-29CWE Content TeamMITRE
updated Common_Consequences
2010-06-21CWE Content TeamMITRE
updated Relationships
2011-03-29CWE Content TeamMITRE
updated Alternate_Terms, Applicable_Platforms, Description, Name, Potential_Mitigations, Relationships
2011-06-01CWE Content TeamMITRE
updated Common_Consequences, Relationships
2012-05-11CWE Content TeamMITRE
updated Relationships
2013-02-21CWE Content TeamMITRE
updated Alternate_Terms, Common_Consequences
2013-07-17CWE Content TeamMITRE
updated Relationships
2014-07-30CWE Content TeamMITRE
updated Relationships
2017-11-08CWE Content TeamMITRE
updated Description, Enabling_Factors_for_Exploitation, Modes_of_Introduction, Relationships
2018-03-27CWE Content TeamMITRE
updated Relationships
2019-06-20CWE Content TeamMITRE
updated Relationships
2020-02-24CWE Content TeamMITRE
updated Relationships
2020-06-25CWE Content TeamMITRE
updated Alternate_Terms
2020-12-10CWE Content TeamMITRE
updated Relationships
2021-03-15CWE Content TeamMITRE
updated Alternate_Terms
+ Previous Entry Names
Change DatePrevious Entry Name
2011-03-29Access Control Bypass Through User-Controlled Key

CWE-120: Buffer Copy without Checking Size of Input ('Classic Buffer Overflow')

Weakness ID: 120
Abstraction: Base
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
The program copies an input buffer to an output buffer without verifying that the size of the input buffer is less than the size of the output buffer, leading to a buffer overflow.
+ Extended Description
A buffer overflow condition exists when a program attempts to put more data in a buffer than it can hold, or when a program attempts to put data in a memory area outside of the boundaries of a buffer. The simplest type of error, and the most common cause of buffer overflows, is the "classic" case in which the program copies the buffer without restricting how much is copied. Other variants exist, but the existence of a classic overflow strongly suggests that the programmer is not considering even the most basic of security protections.
+ Alternate Terms
Classic Buffer Overflow:
This term was frequently used by vulnerability researchers during approximately 1995 to 2005 to differentiate buffer copies without length checks (which had been known about for decades) from other emerging weaknesses that still involved invalid accesses of buffers, as vulnerability researchers began to develop advanced exploitation techniques.
Unbounded Transfer
+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.119Improper Restriction of Operations within the Bounds of a Memory Buffer
ParentOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.785Use of Path Manipulation Function without Maximum-sized Buffer
CanFollowBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.170Improper Null Termination
CanFollowVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.231Improper Handling of Extra Values
CanFollowVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.416Use After Free
CanFollowVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.456Missing Initialization of a Variable
CanPrecedeBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.123Write-what-where Condition
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Software Development" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1218Memory Buffer Errors
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.119Improper Restriction of Operations within the Bounds of a Memory Buffer
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "CISQ Quality Measures (2020)" (CWE-1305)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.119Improper Restriction of Operations within the Bounds of a Memory Buffer
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "CISQ Data Protection Measures" (CWE-1340)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.119Improper Restriction of Operations within the Bounds of a Memory Buffer
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Seven Pernicious Kingdoms" (CWE-700)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.20Improper Input Validation
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Implementation
+ Applicable Platforms
Section HelpThis listing shows possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

C (Undetermined Prevalence)

C++ (Undetermined Prevalence)

Class: Assembly (Undetermined Prevalence)

+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Integrity
Confidentiality
Availability

Technical Impact: Modify Memory; Execute Unauthorized Code or Commands

Buffer overflows often can be used to execute arbitrary code, which is usually outside the scope of a program's implicit security policy. This can often be used to subvert any other security service.
Availability

Technical Impact: Modify Memory; DoS: Crash, Exit, or Restart; DoS: Resource Consumption (CPU)

Buffer overflows generally lead to crashes. Other attacks leading to lack of availability are possible, including putting the program into an infinite loop.
+ Likelihood Of Exploit
High
+ Demonstrative Examples

Example 1

The following code asks the user to enter their last name and then attempts to store the value entered in the last_name array.

(bad code)
Example Language:
char last_name[20];
printf ("Enter your last name: ");
scanf ("%s", last_name);

The problem with the code above is that it does not restrict or limit the size of the name entered by the user. If the user enters "Very_very_long_last_name" which is 24 characters long, then a buffer overflow will occur since the array can only hold 20 characters total.

Example 2

The following code attempts to create a local copy of a buffer to perform some manipulations to the data.

(bad code)
Example Language:
void manipulate_string(char * string){
char buf[24];
strcpy(buf, string);
...
}

However, the programmer does not ensure that the size of the data pointed to by string will fit in the local buffer and copies the data with the potentially dangerous strcpy() function. This may result in a buffer overflow condition if an attacker can influence the contents of the string parameter.

Example 3

The code below calls the gets() function to read in data from the command line.

(bad code)
Example Language:
char buf[24];
printf("Please enter your name and press <Enter>\n");
gets(buf);
...
}

However, gets() is inherently unsafe, because it copies all input from STDIN to the buffer without checking size. This allows the user to provide a string that is larger than the buffer size, resulting in an overflow condition.

Example 4

In the following example, a server accepts connections from a client and processes the client request. After accepting a client connection, the program will obtain client information using the gethostbyaddr method, copy the hostname of the client that connected to a local variable and output the hostname of the client to a log file.

(bad code)
Example Language:
...
struct hostent *clienthp;
char hostname[MAX_LEN];

// create server socket, bind to server address and listen on socket
...

// accept client connections and process requests
int count = 0;
for (count = 0; count < MAX_CONNECTIONS; count++) {

int clientlen = sizeof(struct sockaddr_in);
int clientsocket = accept(serversocket, (struct sockaddr *)&clientaddr, &clientlen);

if (clientsocket >= 0) {
clienthp = gethostbyaddr((char*) &clientaddr.sin_addr.s_addr, sizeof(clientaddr.sin_addr.s_addr), AF_INET);
strcpy(hostname, clienthp->h_name);
logOutput("Accepted client connection from host ", hostname);

// process client request
...
close(clientsocket);
}
}
close(serversocket);

...

However, the hostname of the client that connected may be longer than the allocated size for the local hostname variable. This will result in a buffer overflow when copying the client hostname to the local variable using the strcpy method.

+ Observed Examples
ReferenceDescription
buffer overflow using command with long argument
buffer overflow in local program using long environment variable
buffer overflow in comment characters, when product increments a counter for a ">" but does not decrement for "<"
By replacing a valid cookie value with an extremely long string of characters, an attacker may overflow the application's buffers.
By replacing a valid cookie value with an extremely long string of characters, an attacker may overflow the application's buffers.
+ Potential Mitigations

Phase: Requirements

Strategy: Language Selection

Use a language that does not allow this weakness to occur or provides constructs that make this weakness easier to avoid.

For example, many languages that perform their own memory management, such as Java and Perl, are not subject to buffer overflows. Other languages, such as Ada and C#, typically provide overflow protection, but the protection can be disabled by the programmer.

Be wary that a language's interface to native code may still be subject to overflows, even if the language itself is theoretically safe.

Phase: Architecture and Design

Strategy: Libraries or Frameworks

Use a vetted library or framework that does not allow this weakness to occur or provides constructs that make this weakness easier to avoid.

Examples include the Safe C String Library (SafeStr) by Messier and Viega [REF-57], and the Strsafe.h library from Microsoft [REF-56]. These libraries provide safer versions of overflow-prone string-handling functions.

Note: This is not a complete solution, since many buffer overflows are not related to strings.

Phase: Build and Compilation

Strategy: Compilation or Build Hardening

Run or compile the software using features or extensions that automatically provide a protection mechanism that mitigates or eliminates buffer overflows.

For example, certain compilers and extensions provide automatic buffer overflow detection mechanisms that are built into the compiled code. Examples include the Microsoft Visual Studio /GS flag, Fedora/Red Hat FORTIFY_SOURCE GCC flag, StackGuard, and ProPolice.

Effectiveness: Defense in Depth

Note: This is not necessarily a complete solution, since these mechanisms can only detect certain types of overflows. In addition, an attack could still cause a denial of service, since the typical response is to exit the application.

Phase: Implementation

Consider adhering to the following rules when allocating and managing an application's memory:

  • Double check that your buffer is as large as you specify.
  • When using functions that accept a number of bytes to copy, such as strncpy(), be aware that if the destination buffer size is equal to the source buffer size, it may not NULL-terminate the string.
  • Check buffer boundaries if accessing the buffer in a loop and make sure there is no danger of writing past the allocated space.
  • If necessary, truncate all input strings to a reasonable length before passing them to the copy and concatenation functions.

Phase: Implementation

Strategy: Input Validation

Assume all input is malicious. Use an "accept known good" input validation strategy, i.e., use a list of acceptable inputs that strictly conform to specifications. Reject any input that does not strictly conform to specifications, or transform it into something that does.

When performing input validation, consider all potentially relevant properties, including length, type of input, the full range of acceptable values, missing or extra inputs, syntax, consistency across related fields, and conformance to business rules. As an example of business rule logic, "boat" may be syntactically valid because it only contains alphanumeric characters, but it is not valid if the input is only expected to contain colors such as "red" or "blue."

Do not rely exclusively on looking for malicious or malformed inputs. This is likely to miss at least one undesirable input, especially if the code's environment changes. This can give attackers enough room to bypass the intended validation. However, denylists can be useful for detecting potential attacks or determining which inputs are so malformed that they should be rejected outright.

Phase: Architecture and Design

For any security checks that are performed on the client side, ensure that these checks are duplicated on the server side, in order to avoid CWE-602. Attackers can bypass the client-side checks by modifying values after the checks have been performed, or by changing the client to remove the client-side checks entirely. Then, these modified values would be submitted to the server.

Phase: Operation

Strategy: Environment Hardening

Run or compile the software using features or extensions that randomly arrange the positions of a program's executable and libraries in memory. Because this makes the addresses unpredictable, it can prevent an attacker from reliably jumping to exploitable code.

Examples include Address Space Layout Randomization (ASLR) [REF-58] [REF-60] and Position-Independent Executables (PIE) [REF-64].

Effectiveness: Defense in Depth

Note: This is not a complete solution. However, it forces the attacker to guess an unknown value that changes every program execution. In addition, an attack could still cause a denial of service, since the typical response is to exit the application.

Phase: Operation

Strategy: Environment Hardening

Use a CPU and operating system that offers Data Execution Protection (NX) or its equivalent [REF-60] [REF-61].

Effectiveness: Defense in Depth

Note: This is not a complete solution, since buffer overflows could be used to overwrite nearby variables to modify the software's state in dangerous ways. In addition, it cannot be used in cases in which self-modifying code is required. Finally, an attack could still cause a denial of service, since the typical response is to exit the application.

Phases: Build and Compilation; Operation

Most mitigating technologies at the compiler or OS level to date address only a subset of buffer overflow problems and rarely provide complete protection against even that subset. It is good practice to implement strategies to increase the workload of an attacker, such as leaving the attacker to guess an unknown value that changes every program execution.

Phase: Implementation

Replace unbounded copy functions with analogous functions that support length arguments, such as strcpy with strncpy. Create these if they are not available.

Effectiveness: Moderate

Note: This approach is still susceptible to calculation errors, including issues such as off-by-one errors (CWE-193) and incorrectly calculating buffer lengths (CWE-131).

Phase: Architecture and Design

Strategy: Enforcement by Conversion

When the set of acceptable objects, such as filenames or URLs, is limited or known, create a mapping from a set of fixed input values (such as numeric IDs) to the actual filenames or URLs, and reject all other inputs.

Phases: Architecture and Design; Operation

Strategy: Environment Hardening

Run your code using the lowest privileges that are required to accomplish the necessary tasks [REF-76]. If possible, create isolated accounts with limited privileges that are only used for a single task. That way, a successful attack will not immediately give the attacker access to the rest of the software or its environment. For example, database applications rarely need to run as the database administrator, especially in day-to-day operations.

Phases: Architecture and Design; Operation

Strategy: Sandbox or Jail

Run the code in a "jail" or similar sandbox environment that enforces strict boundaries between the process and the operating system. This may effectively restrict which files can be accessed in a particular directory or which commands can be executed by the software.

OS-level examples include the Unix chroot jail, AppArmor, and SELinux. In general, managed code may provide some protection. For example, java.io.FilePermission in the Java SecurityManager allows the software to specify restrictions on file operations.

This may not be a feasible solution, and it only limits the impact to the operating system; the rest of the application may still be subject to compromise.

Be careful to avoid CWE-243 and other weaknesses related to jails.

Effectiveness: Limited

Note: The effectiveness of this mitigation depends on the prevention capabilities of the specific sandbox or jail being used and might only help to reduce the scope of an attack, such as restricting the attacker to certain system calls or limiting the portion of the file system that can be accessed.
+ Weakness Ordinalities
OrdinalityDescription
Resultant
(where the weakness is typically related to the presence of some other weaknesses)
Primary
(where the weakness exists independent of other weaknesses)
+ Detection Methods

Automated Static Analysis

This weakness can often be detected using automated static analysis tools. Many modern tools use data flow analysis or constraint-based techniques to minimize the number of false positives.

Automated static analysis generally does not account for environmental considerations when reporting out-of-bounds memory operations. This can make it difficult for users to determine which warnings should be investigated first. For example, an analysis tool might report buffer overflows that originate from command line arguments in a program that is not expected to run with setuid or other special privileges.

Effectiveness: High

Note: Detection techniques for buffer-related errors are more mature than for most other weakness types.

Automated Dynamic Analysis

This weakness can be detected using dynamic tools and techniques that interact with the software using large test suites with many diverse inputs, such as fuzz testing (fuzzing), robustness testing, and fault injection. The software's operation may slow down, but it should not become unstable, crash, or generate incorrect results.

Manual Analysis

Manual analysis can be useful for finding this weakness, but it might not achieve desired code coverage within limited time constraints. This becomes difficult for weaknesses that must be considered for all inputs, since the attack surface can be too large.

Automated Static Analysis - Binary or Bytecode

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Bytecode Weakness Analysis - including disassembler + source code weakness analysis
  • Binary Weakness Analysis - including disassembler + source code weakness analysis

Effectiveness: High

Manual Static Analysis - Binary or Bytecode

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Binary / Bytecode disassembler - then use manual analysis for vulnerabilities & anomalies

Effectiveness: SOAR Partial

Dynamic Analysis with Automated Results Interpretation

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Web Application Scanner
  • Web Services Scanner
  • Database Scanners

Effectiveness: SOAR Partial

Dynamic Analysis with Manual Results Interpretation

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Fuzz Tester
  • Framework-based Fuzzer

Effectiveness: SOAR Partial

Manual Static Analysis - Source Code

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Focused Manual Spotcheck - Focused manual analysis of source
  • Manual Source Code Review (not inspections)

Effectiveness: SOAR Partial

Automated Static Analysis - Source Code

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Source code Weakness Analyzer
  • Context-configured Source Code Weakness Analyzer

Effectiveness: High

Architecture or Design Review

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Formal Methods / Correct-By-Construction
Cost effective for partial coverage:
  • Inspection (IEEE 1028 standard) (can apply to requirements, design, source code, etc.)

Effectiveness: High

+ Functional Areas
  • Memory Management
+ Affected Resources
  • Memory
+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.722OWASP Top Ten 2004 Category A1 - Unvalidated Input
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.726OWASP Top Ten 2004 Category A5 - Buffer Overflows
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.741CERT C Secure Coding Standard (2008) Chapter 8 - Characters and Strings (STR)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.8022010 Top 25 - Risky Resource Management
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.8652011 Top 25 - Risky Resource Management
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.875CERT C++ Secure Coding Section 07 - Characters and Strings (STR)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.970SFP Secondary Cluster: Faulty Buffer Access
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1129CISQ Quality Measures (2016) - Reliability
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1131CISQ Quality Measures (2016) - Security
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1161SEI CERT C Coding Standard - Guidelines 07. Characters and Strings (STR)
+ Notes

Relationship

At the code level, stack-based and heap-based overflows do not differ significantly, so there usually is not a need to distinguish them. From the attacker perspective, they can be quite different, since different techniques are required to exploit them.

Terminology

Many issues that are now called "buffer overflows" are substantively different than the "classic" overflow, including entirely different bug types that rely on overflow exploit techniques, such as integer signedness errors, integer overflows, and format string bugs. This imprecise terminology can make it difficult to determine which variant is being reported.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
PLOVERUnbounded Transfer ('classic overflow')
7 Pernicious KingdomsBuffer Overflow
CLASPBuffer overflow
OWASP Top Ten 2004A1CWE More SpecificUnvalidated Input
OWASP Top Ten 2004A5CWE More SpecificBuffer Overflows
CERT C Secure CodingSTR31-CExactGuarantee that storage for strings has sufficient space for character data and the null terminator
WASC7Buffer Overflow
Software Fault PatternsSFP8Faulty Buffer Access
OMG ASCSMASCSM-CWE-120
OMG ASCRMASCRM-CWE-120
+ References
[REF-7] Michael Howard and David LeBlanc. "Writing Secure Code". Chapter 5, "Public Enemy #1: The Buffer Overrun" Page 127. 2nd Edition. Microsoft Press. 2002-12-04. <https://www.microsoftpressstore.com/store/writing-secure-code-9780735617223>.
[REF-44] Michael Howard, David LeBlanc and John Viega. "24 Deadly Sins of Software Security". "Sin 5: Buffer Overruns." Page 89. McGraw-Hill. 2010.
[REF-56] Microsoft. "Using the Strsafe.h Functions". <http://msdn.microsoft.com/en-us/library/ms647466.aspx>.
[REF-57] Matt Messier and John Viega. "Safe C String Library v1.0.3". <http://www.zork.org/safestr/>.
[REF-58] Michael Howard. "Address Space Layout Randomization in Windows Vista". <http://blogs.msdn.com/michael_howard/archive/2006/05/26/address-space-layout-randomization-in-windows-vista.aspx>.
[REF-59] Arjan van de Ven. "Limiting buffer overflows with ExecShield". <http://www.redhat.com/magazine/009jul05/features/execshield/>.
[REF-74] Jason Lam. "Top 25 Series - Rank 3 - Classic Buffer Overflow". SANS Software Security Institute. 2010-03-02. <http://software-security.sans.org/blog/2010/03/02/top-25-series-rank-3-classic-buffer-overflow/>.
[REF-61] Microsoft. "Understanding DEP as a mitigation technology part 1". <http://blogs.technet.com/b/srd/archive/2009/06/12/understanding-dep-as-a-mitigation-technology-part-1.aspx>.
[REF-76] Sean Barnum and Michael Gegick. "Least Privilege". 2005-09-14. <https://buildsecurityin.us-cert.gov/daisy/bsi/articles/knowledge/principles/351.html>.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 3, "Nonexecutable Stack", Page 76. 1st Edition. Addison Wesley. 2006.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 5, "Protection Mechanisms", Page 189. 1st Edition. Addison Wesley. 2006.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 8, "C String Handling", Page 388. 1st Edition. Addison Wesley. 2006.
[REF-64] Grant Murphy. "Position Independent Executables (PIE)". Red Hat. 2012-11-28. <https://securityblog.redhat.com/2012/11/28/position-independent-executables-pie/>.
[REF-961] Object Management Group (OMG). "Automated Source Code Reliability Measure (ASCRM)". ASCRM-CWE-120. 2016-01. <http://www.omg.org/spec/ASCRM/1.0/>.
[REF-962] Object Management Group (OMG). "Automated Source Code Security Measure (ASCSM)". ASCSM-CWE-120. 2016-01. <http://www.omg.org/spec/ASCSM/1.0/>.
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2006-07-19PLOVER
+ Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-08-01KDM Analytics
added/updated white box definitions
2008-08-15Veracode
Suggested OWASP Top Ten 2004 mapping
2008-09-08CWE Content TeamMITRE
updated Alternate_Terms, Applicable_Platforms, Common_Consequences, Relationships, Observed_Example, Other_Notes, Taxonomy_Mappings, Weakness_Ordinalities
2008-10-10CWE Content TeamMITRE
Changed name and description to more clearly emphasize the "classic" nature of the overflow.
2008-10-14CWE Content TeamMITRE
updated Alternate_Terms, Description, Name, Other_Notes, Terminology_Notes
2008-11-24CWE Content TeamMITRE
updated Other_Notes, Relationships, Taxonomy_Mappings
2009-01-12CWE Content TeamMITRE
updated Common_Consequences, Other_Notes, Potential_Mitigations, References, Relationship_Notes, Relationships
2009-07-27CWE Content TeamMITRE
updated Other_Notes, Potential_Mitigations, Relationships
2009-10-29CWE Content TeamMITRE
updated Common_Consequences, Relationships
2010-02-16CWE Content TeamMITRE
updated Applicable_Platforms, Common_Consequences, Demonstrative_Examples, Detection_Factors, Potential_Mitigations, References, Related_Attack_Patterns, Relationships, Taxonomy_Mappings, Time_of_Introduction, Type
2010-04-05CWE Content TeamMITRE
updated Demonstrative_Examples, Related_Attack_Patterns
2010-06-21CWE Content TeamMITRE
updated Common_Consequences, Potential_Mitigations, References
2010-09-27CWE Content TeamMITRE
updated Potential_Mitigations
2010-12-13CWE Content TeamMITRE
updated Potential_Mitigations
2011-03-29CWE Content TeamMITRE
updated Demonstrative_Examples, Description
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2011-06-27CWE Content TeamMITRE
updated Relationships
2011-09-13CWE Content TeamMITRE
updated Potential_Mitigations, References, Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated References, Relationships
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2014-02-18CWE Content TeamMITRE
updated Potential_Mitigations, References
2014-07-30CWE Content TeamMITRE
updated Detection_Factors, Relationships, Taxonomy_Mappings
2017-11-08CWE Content TeamMITRE
updated Applicable_Platforms, Causal_Nature, Demonstrative_Examples, Likelihood_of_Exploit, References, Relationships, Taxonomy_Mappings, White_Box_Definitions
2018-03-27CWE Content TeamMITRE
updated References
2019-01-03CWE Content TeamMITRE
updated References, Relationships, Taxonomy_Mappings
2019-06-20CWE Content TeamMITRE
updated Relationships
2020-02-24CWE Content TeamMITRE
updated Potential_Mitigations, Relationships
2020-06-25CWE Content TeamMITRE
updated Common_Consequences, Potential_Mitigations
2020-08-20CWE Content TeamMITRE
updated Alternate_Terms, Relationships
2020-12-10CWE Content TeamMITRE
updated Demonstrative_Examples, Relationships
2021-03-15CWE Content TeamMITRE
updated Demonstrative_Examples
2021-07-20CWE Content TeamMITRE
updated Potential_Mitigations
+ Previous Entry Names
Change DatePrevious Entry Name
2008-10-14Unbounded Transfer ('Classic Buffer Overflow')

CWE-312: Cleartext Storage of Sensitive Information

Weakness ID: 312
Abstraction: Base
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The application stores sensitive information in cleartext within a resource that might be accessible to another control sphere.
+ Extended Description
Because the information is stored in cleartext, attackers could potentially read it. Even if the information is encoded in a way that is not human-readable, certain techniques could determine which encoding is being used, then decode the information.
+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.922Insecure Storage of Sensitive Information
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.311Missing Encryption of Sensitive Data
ParentOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.313Cleartext Storage in a File or on Disk
ParentOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.314Cleartext Storage in the Registry
ParentOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.315Cleartext Storage of Sensitive Information in a Cookie
ParentOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.316Cleartext Storage of Sensitive Information in Memory
ParentOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.317Cleartext Storage of Sensitive Information in GUI
ParentOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.318Cleartext Storage of Sensitive Information in Executable
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Software Development" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.199Information Management Errors
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.311Missing Encryption of Sensitive Data
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Architectural Concepts" (CWE-1008)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1013Encrypt Data
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Architecture and DesignOMISSION: This weakness is caused by missing a security tactic during the architecture and design phase.
+ Applicable Platforms
Section HelpThis listing shows possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Language-Independent (Undetermined Prevalence)

Technologies

Class: Mobile (Undetermined Prevalence)

+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Confidentiality

Technical Impact: Read Application Data

An attacker with access to the system could read sensitive information stored in cleartext.
+ Demonstrative Examples

Example 1

The following code excerpt stores a plaintext user account ID in a browser cookie.

(bad code)
Example Language: Java
response.addCookie( new Cookie("userAccountID", acctID);

Because the account ID is in plaintext, the user's account information is exposed if their computer is compromised by an attacker.

Example 2

This code writes a user's login information to a cookie so the user does not have to login again later.

(bad code)
Example Language: PHP
function persistLogin($username, $password){
$data = array("username" => $username, "password"=> $password);
setcookie ("userdata", $data);
}

The code stores the user's username and password in plaintext in a cookie on the user's machine. This exposes the user's login information if their computer is compromised by an attacker. Even if the user's machine is not compromised, this weakness combined with cross-site scripting (CWE-79) could allow an attacker to remotely copy the cookie.

Also note this example code also exhibits Plaintext Storage in a Cookie (CWE-315).

Example 3

The following code attempts to establish a connection, read in a password, then store it to a buffer.

(bad code)
Example Language:
server.sin_family = AF_INET; hp = gethostbyname(argv[1]);
if (hp==NULL) error("Unknown host");
memcpy( (char *)&server.sin_addr,(char *)hp->h_addr,hp->h_length);
if (argc < 3) port = 80;
else port = (unsigned short)atoi(argv[3]);
server.sin_port = htons(port);
if (connect(sock, (struct sockaddr *)&server, sizeof server) < 0) error("Connecting");
...
while ((n=read(sock,buffer,BUFSIZE-1))!=-1) {

write(dfd,password_buffer,n);
...

While successful, the program does not encrypt the data before writing it to a buffer, possibly exposing it to unauthorized actors.

Example 4

The following examples show a portion of properties and configuration files for Java and ASP.NET applications. The files include username and password information but they are stored in cleartext.

This Java example shows a properties file with a cleartext username / password pair.

(bad code)
Example Language: Java

# Java Web App ResourceBundle properties file
...
webapp.ldap.username=secretUsername
webapp.ldap.password=secretPassword
...

The following example shows a portion of a configuration file for an ASP.Net application. This configuration file includes username and password information for a connection to a database but the pair is stored in cleartext.

(bad code)
Example Language: ASP.NET
...
<connectionStrings>
<add name="ud_DEV" connectionString="connectDB=uDB; uid=db2admin; pwd=password; dbalias=uDB;" providerName="System.Data.Odbc" />
</connectionStrings>
...

Username and password information should not be included in a configuration file or a properties file in cleartext as this will allow anyone who can read the file access to the resource. If possible, encrypt this information.

+ Observed Examples
ReferenceDescription
password and username stored in cleartext in a cookie
password stored in cleartext in a file with insecure permissions
chat program disables SSL in some circumstances even when the user says to use SSL.
Chain: product uses an incorrect public exponent when generating an RSA key, which effectively disables the encryption
storage of unencrypted passwords in a database
storage of unencrypted passwords in a database
product stores a password in cleartext in memory
storage of a secret key in cleartext in a temporary file
SCADA product uses HTTP Basic Authentication, which is not encrypted
login credentials stored unencrypted in a registry key
Plaintext credentials in world-readable file.
Password in cleartext in config file.
Password in cleartext in config file.
Decrypted copy of a message written to disk given a combination of options and when user replies to an encrypted message.
Plaintext storage of private key and passphrase in log file when user imports the key.
Admin password in plaintext in a cookie.
Default configuration has cleartext usernames/passwords in cookie.
Usernames/passwords in cleartext in cookies.
Authentication information stored in cleartext in a cookie.
+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.816OWASP Top Ten 2010 Category A7 - Insecure Cryptographic Storage
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.934OWASP Top Ten 2013 Category A6 - Sensitive Data Exposure
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.963SFP Secondary Cluster: Exposed Data
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1029OWASP Top Ten 2017 Category A3 - Sensitive Data Exposure
+ Notes

Terminology

Different people use "cleartext" and "plaintext" to mean the same thing: the lack of encryption. However, within cryptography, these have more precise meanings. Plaintext is the information just before it is fed into a cryptographic algorithm, including already-encrypted text. Cleartext is any information that is unencrypted, although it might be in an encoded form that is not easily human-readable (such as base64 encoding).
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
PLOVERPlaintext Storage of Sensitive Information
Software Fault PatternsSFP23Exposed Data
+ References
[REF-7] Michael Howard and David LeBlanc. "Writing Secure Code". Chapter 9, "Protecting Secret Data" Page 299. 2nd Edition. Microsoft Press. 2002-12-04. <https://www.microsoftpressstore.com/store/writing-secure-code-9780735617223>.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 2, "Common Vulnerabilities of Encryption", Page 43. 1st Edition. Addison Wesley. 2006.
[REF-172] Chris Wysopal. "Mobile App Top 10 List". 2010-12-13. <http://www.veracode.com/blog/2010/12/mobile-app-top-10-list/>.
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2006-07-19PLOVER
+ Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-01-12CWE Content TeamMITRE
updated Description, Name
2010-02-16CWE Content TeamMITRE
updated References
2010-06-21CWE Content TeamMITRE
updated Relationships
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2012-05-11CWE Content TeamMITRE
updated Common_Consequences, Demonstrative_Examples, Observed_Examples, References, Related_Attack_Patterns, Relationships
2013-02-21CWE Content TeamMITRE
updated Applicable_Platforms, References
2013-07-17CWE Content TeamMITRE
updated Description, Relationships, Terminology_Notes
2014-07-30CWE Content TeamMITRE
updated Demonstrative_Examples, Relationships, Taxonomy_Mappings
2017-05-03CWE Content TeamMITRE
updated Related_Attack_Patterns
2017-11-08CWE Content TeamMITRE
updated Modes_of_Introduction, References, Relationships
2018-01-23CWE Content TeamMITRE
updated Abstraction, Relationships
2018-03-27CWE Content TeamMITRE
updated References, Relationships, Type
2019-06-20CWE Content TeamMITRE
updated Relationships, Type
2020-02-24CWE Content TeamMITRE
updated Applicable_Platforms, Relationships
2021-03-15CWE Content TeamMITRE
updated Demonstrative_Examples
+ Previous Entry Names
Change DatePrevious Entry Name
2009-01-12Plaintext Storage of Sensitive Information

CWE-319: Cleartext Transmission of Sensitive Information

Weakness ID: 319
Abstraction: Base
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The software transmits sensitive or security-critical data in cleartext in a communication channel that can be sniffed by unauthorized actors.
+ Extended Description
Many communication channels can be "sniffed" by attackers during data transmission. For example, network traffic can often be sniffed by any attacker who has access to a network interface. This significantly lowers the difficulty of exploitation by attackers.
+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.311Missing Encryption of Sensitive Data
ParentOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.5J2EE Misconfiguration: Data Transmission Without Encryption
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Software Development" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.199Information Management Errors
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.311Missing Encryption of Sensitive Data
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Architectural Concepts" (CWE-1008)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1013Encrypt Data
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Architecture and DesignOMISSION: This weakness is caused by missing a security tactic during the architecture and design phase.
Operation
System Configuration
+ Applicable Platforms
Section HelpThis listing shows possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Language-Independent (Undetermined Prevalence)

Technologies

Class: Mobile (Undetermined Prevalence)

+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Integrity
Confidentiality

Technical Impact: Read Application Data; Modify Files or Directories

Anyone can read the information by gaining access to the channel being used for communication.
+ Likelihood Of Exploit
High
+ Demonstrative Examples

Example 1

The following code attempts to establish a connection to a site to communicate sensitive information.

(bad code)
Example Language: Java
try {
URL u = new URL("http://www.secret.example.org/");
HttpURLConnection hu = (HttpURLConnection) u.openConnection();
hu.setRequestMethod("PUT");
hu.connect();
OutputStream os = hu.getOutputStream();
hu.disconnect();
}
catch (IOException e) {

//...
}

Though a connection is successfully made, the connection is unencrypted and it is possible that all sensitive data sent to or received from the server will be read by unintended actors.

+ Observed Examples
ReferenceDescription
Passwords transmitted in cleartext.
Chain: Use of HTTPS cookie without "secure" flag causes it to be transmitted across unencrypted HTTP.
Product sends password hash in cleartext in violation of intended policy.
Remote management feature sends sensitive information including passwords in cleartext.
Backup routine sends password in cleartext in email.
Product transmits Blowfish encryption key in cleartext.
Printer sends configuration information, including administrative password, in cleartext.
Chain: cleartext transmission of the MD5 hash of password enables attacks against a server that is susceptible to replay (CWE-294).
Product sends passwords in cleartext to a log server.
Product sends file with cleartext passwords in e-mail message intended for diagnostic purposes.
+ Potential Mitigations

Phase: Architecture and Design

Encrypt the data with a reliable encryption scheme before transmitting.

Phase: Implementation

When using web applications with SSL, use SSL for the entire session from login to logout, not just for the initial login page.

Phase: Testing

Use tools and techniques that require manual (human) analysis, such as penetration testing, threat modeling, and interactive tools that allow the tester to record and modify an active session. These may be more effective than strictly automated techniques. This is especially the case with weaknesses that are related to design and business rules.

Phase: Operation

Configure servers to use encrypted channels for communication, which may include SSL or other secure protocols.
+ Detection Methods

Black Box

Use monitoring tools that examine the software's process as it interacts with the operating system and the network. This technique is useful in cases when source code is unavailable, if the software was not developed by you, or if you want to verify that the build phase did not introduce any new weaknesses. Examples include debuggers that directly attach to the running process; system-call tracing utilities such as truss (Solaris) and strace (Linux); system activity monitors such as FileMon, RegMon, Process Monitor, and other Sysinternals utilities (Windows); and sniffers and protocol analyzers that monitor network traffic.

Attach the monitor to the process, trigger the feature that sends the data, and look for the presence or absence of common cryptographic functions in the call tree. Monitor the network and determine if the data packets contain readable commands. Tools exist for detecting if certain encodings are in use. If the traffic contains high entropy, this might indicate the usage of encryption.

+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.7512009 Top 25 - Insecure Interaction Between Components
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.818OWASP Top Ten 2010 Category A9 - Insufficient Transport Layer Protection
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.858The CERT Oracle Secure Coding Standard for Java (2011) Chapter 15 - Serialization (SER)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.859The CERT Oracle Secure Coding Standard for Java (2011) Chapter 16 - Platform Security (SEC)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.934OWASP Top Ten 2013 Category A6 - Sensitive Data Exposure
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.963SFP Secondary Cluster: Exposed Data
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1029OWASP Top Ten 2017 Category A3 - Sensitive Data Exposure
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1148SEI CERT Oracle Secure Coding Standard for Java - Guidelines 14. Serialization (SER)
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
PLOVERPlaintext Transmission of Sensitive Information
The CERT Oracle Secure Coding Standard for Java (2011)SEC06-JDo not rely on the default automatic signature verification provided by URLClassLoader and java.util.jar
The CERT Oracle Secure Coding Standard for Java (2011)SER02-JSign then seal sensitive objects before sending them outside a trust boundary
Software Fault PatternsSFP23Exposed Data
+ References
[REF-271] OWASP. "Top 10 2007-Insecure Communications". 2007. <http://www.owasp.org/index.php/Top_10_2007-A9>.
[REF-7] Michael Howard and David LeBlanc. "Writing Secure Code". Chapter 9, "Protecting Secret Data" Page 299. 2nd Edition. Microsoft Press. 2002-12-04. <https://www.microsoftpressstore.com/store/writing-secure-code-9780735617223>.
[REF-44] Michael Howard, David LeBlanc and John Viega. "24 Deadly Sins of Software Security". "Sin 22: Failing to Protect Network Traffic." Page 337. McGraw-Hill. 2010.
[REF-172] Chris Wysopal. "Mobile App Top 10 List". 2010-12-13. <http://www.veracode.com/blog/2010/12/mobile-app-top-10-list/>.
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2006-07-19PLOVER
+ Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-01-12CWE Content TeamMITRE
updated Common_Consequences, Description, Likelihood_of_Exploit, Name, Observed_Examples, Potential_Mitigations, References, Relationships
2009-03-10CWE Content TeamMITRE
updated Potential_Mitigations
2009-05-27CWE Content TeamMITRE
updated Related_Attack_Patterns
2010-02-16CWE Content TeamMITRE
updated References
2010-04-05CWE Content TeamMITRE
updated Applicable_Platforms, Common_Consequences, Time_of_Introduction
2010-06-21CWE Content TeamMITRE
updated Detection_Factors, Relationships
2010-12-13CWE Content TeamMITRE
updated Observed_Examples, Related_Attack_Patterns
2011-03-29CWE Content TeamMITRE
updated Potential_Mitigations
2011-06-01CWE Content TeamMITRE
updated Common_Consequences, Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Demonstrative_Examples, References, Related_Attack_Patterns, Relationships, Taxonomy_Mappings
2013-02-21CWE Content TeamMITRE
updated Applicable_Platforms, References
2013-07-17CWE Content TeamMITRE
updated Relationships
2014-02-18CWE Content TeamMITRE
updated Related_Attack_Patterns
2014-06-23CWE Content TeamMITRE
updated Relationships
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2017-05-03CWE Content TeamMITRE
updated Related_Attack_Patterns
2017-11-08CWE Content TeamMITRE
updated Likelihood_of_Exploit, Modes_of_Introduction, References, Relationships
2018-01-23CWE Content TeamMITRE
updated Abstraction
2018-03-27CWE Content TeamMITRE
updated References, Relationships, Type
2019-01-03CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2019-06-20CWE Content TeamMITRE
updated Relationships, Type
2020-02-24CWE Content TeamMITRE
updated Applicable_Platforms, Related_Attack_Patterns, Relationships
+ Previous Entry Names
Change DatePrevious Entry Name
2009-01-12Plaintext Transmission of Sensitive Information

CWE-362: Concurrent Execution using Shared Resource with Improper Synchronization ('Race Condition')

Weakness ID: 362
Abstraction: Class
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The program contains a code sequence that can run concurrently with other code, and the code sequence requires temporary, exclusive access to a shared resource, but a timing window exists in which the shared resource can be modified by another code sequence that is operating concurrently.
+ Extended Description

This can have security implications when the expected synchronization is in security-critical code, such as recording whether a user is authenticated or modifying important state information that should not be influenced by an outsider.

A race condition occurs within concurrent environments, and is effectively a property of a code sequence. Depending on the context, a code sequence may be in the form of a function call, a small number of instructions, a series of program invocations, etc.

A race condition violates these properties, which are closely related:

  • Exclusivity - the code sequence is given exclusive access to the shared resource, i.e., no other code sequence can modify properties of the shared resource before the original sequence has completed execution.
  • Atomicity - the code sequence is behaviorally atomic, i.e., no other thread or process can concurrently execute the same sequence of instructions (or a subset) against the same resource.

A race condition exists when an "interfering code sequence" can still access the shared resource, violating exclusivity. Programmers may assume that certain code sequences execute too quickly to be affected by an interfering code sequence; when they are not, this violates atomicity. For example, the single "x++" statement may appear atomic at the code layer, but it is actually non-atomic at the instruction layer, since it involves a read (the original value of x), followed by a computation (x+1), followed by a write (save the result to x).

The interfering code sequence could be "trusted" or "untrusted." A trusted interfering code sequence occurs within the program; it cannot be modified by the attacker, and it can only be invoked indirectly. An untrusted interfering code sequence can be authored directly by the attacker, and typically it is external to the vulnerable program.

+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfPillarPillar - a weakness that is the most abstract type of weakness and represents a theme for all class/base/variant weaknesses related to it. A Pillar is different from a Category as a Pillar is still technically a type of weakness that describes a mistake, while a Category represents a common characteristic used to group related things.691Insufficient Control Flow Management
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.364Signal Handler Race Condition
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.366Race Condition within a Thread
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.367Time-of-check Time-of-use (TOCTOU) Race Condition
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.368Context Switching Race Condition
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.421Race Condition During Access to Alternate Channel
ParentOfCompositeComposite - a Compound Element that consists of two or more distinct weaknesses, in which all weaknesses must be present at the same time in order for a potential vulnerability to arise. Removing any of the weaknesses eliminates or sharply reduces the risk. One weakness, X, can be "broken down" into component weaknesses Y and Z. There can be cases in which one weakness might not be essential to a composite, but changes the nature of the composite when it becomes a vulnerability.689Permission Race Condition During Resource Copy
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.1223Race Condition for Write-Once Attributes
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.1298Hardware Logic Contains Race Conditions
CanFollowClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.662Improper Synchronization
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ParentOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.367Time-of-check Time-of-use (TOCTOU) Race Condition
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Architecture and Design
Implementation
+ Applicable Platforms
Section HelpThis listing shows possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

C (Sometimes Prevalent)

C++ (Sometimes Prevalent)

Java (Sometimes Prevalent)

Technologies

Class: Mobile (Undetermined Prevalence)

+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Availability

Technical Impact: DoS: Resource Consumption (CPU); DoS: Resource Consumption (Memory); DoS: Resource Consumption (Other)

When a race condition makes it possible to bypass a resource cleanup routine or trigger multiple initialization routines, it may lead to resource exhaustion (CWE-400).
Availability

Technical Impact: DoS: Crash, Exit, or Restart; DoS: Instability

When a race condition allows multiple control flows to access a resource simultaneously, it might lead the program(s) into unexpected states, possibly resulting in a crash.
Confidentiality
Integrity

Technical Impact: Read Files or Directories; Read Application Data

When a race condition is combined with predictable resource names and loose permissions, it may be possible for an attacker to overwrite or access confidential data (CWE-59).
+ Likelihood Of Exploit
Medium
+ Demonstrative Examples

Example 1

This code could be used in an e-commerce application that supports transfers between accounts. It takes the total amount of the transfer, sends it to the new account, and deducts the amount from the original account.

(bad code)
Example Language: Perl
$transfer_amount = GetTransferAmount();
$balance = GetBalanceFromDatabase();

if ($transfer_amount < 0) {
FatalError("Bad Transfer Amount");
}
$newbalance = $balance - $transfer_amount;
if (($balance - $transfer_amount) < 0) {
FatalError("Insufficient Funds");
}
SendNewBalanceToDatabase($newbalance);
NotifyUser("Transfer of $transfer_amount succeeded.");
NotifyUser("New balance: $newbalance");

A race condition could occur between the calls to GetBalanceFromDatabase() and SendNewBalanceToDatabase().

Suppose the balance is initially 100.00. An attack could be constructed as follows:

(attack code)
Example Language: Other
In the following pseudocode, the attacker makes two simultaneous calls of the program, CALLER-1 and CALLER-2. Both callers are for the same user account.
CALLER-1 (the attacker) is associated with PROGRAM-1 (the instance that handles CALLER-1). CALLER-2 is associated with PROGRAM-2.
CALLER-1 makes a transfer request of 80.00.
PROGRAM-1 calls GetBalanceFromDatabase and sets $balance to 100.00
PROGRAM-1 calculates $newbalance as 20.00, then calls SendNewBalanceToDatabase().
Due to high server load, the PROGRAM-1 call to SendNewBalanceToDatabase() encounters a delay.
CALLER-2 makes a transfer request of 1.00.
PROGRAM-2 calls GetBalanceFromDatabase() and sets $balance to 100.00. This happens because the previous PROGRAM-1 request was not processed yet.
PROGRAM-2 determines the new balance as 99.00.
After the initial delay, PROGRAM-1 commits its balance to the database, setting it to 20.00.
PROGRAM-2 sends a request to update the database, setting the balance to 99.00

At this stage, the attacker should have a balance of 19.00 (due to 81.00 worth of transfers), but the balance is 99.00, as recorded in the database.

To prevent this weakness, the programmer has several options, including using a lock to prevent multiple simultaneous requests to the web application, or using a synchronization mechanism that includes all the code between GetBalanceFromDatabase() and SendNewBalanceToDatabase().

Example 2

The following function attempts to acquire a lock in order to perform operations on a shared resource.

(bad code)
Example Language:
void f(pthread_mutex_t *mutex) {
pthread_mutex_lock(mutex);

/* access shared resource */


pthread_mutex_unlock(mutex);
}

However, the code does not check the value returned by pthread_mutex_lock() for errors. If pthread_mutex_lock() cannot acquire the mutex for any reason, the function may introduce a race condition into the program and result in undefined behavior.

In order to avoid data races, correctly written programs must check the result of thread synchronization functions and appropriately handle all errors, either by attempting to recover from them or reporting them to higher levels.

(good code)
Example Language:
int f(pthread_mutex_t *mutex) {
int result;

result = pthread_mutex_lock(mutex);
if (0 != result)
return result;


/* access shared resource */


return pthread_mutex_unlock(mutex);
}

Example 3

Suppose a processor's Memory Management Unit (MMU) has 5 other shadow MMUs to distribute its workload for its various cores. Each MMU has the start address and end address of "accessible" memory. Any time this accessible range changes (as per the processor's boot status), the main MMU sends an update message to all the shadow MMUs.

Suppose the interconnect fabric does not prioritize such "update" packets over other general traffic packets. This introduces a race condition. If an attacker can flood the target with enough messages so that some of those attack packets reach the target before the new access ranges gets updated, then the attacker can leverage this scenario.

+ Observed Examples
ReferenceDescription
chain: JTAG interface is not disabled (CWE-1191) during ROM code execution, introducing a race condition (CWE-362) to extract encryption keys
Race condition leading to a crash by calling a hook removal procedure while other activities are occurring at the same time.
chain: time-of-check time-of-use (TOCTOU) race condition in program allows bypass of protection mechanism that was designed to prevent symlink attacks.
chain: time-of-check time-of-use (TOCTOU) race condition in program allows bypass of protection mechanism that was designed to prevent symlink attacks.
Unsynchronized caching operation enables a race condition that causes messages to be sent to a deallocated object.
Race condition during initialization triggers a buffer overflow.
Daemon crash by quickly performing operations and undoing them, which eventually leads to an operation that does not acquire a lock.
chain: race condition triggers NULL pointer dereference
Race condition in library function could cause data to be sent to the wrong process.
Race condition in file parser leads to heap corruption.
chain: race condition allows attacker to access an object while it is still being initialized, causing software to access uninitialized memory.
chain: race condition for an argument value, possibly resulting in NULL dereference
chain: race condition might allow resource to be released before operating on it, leading to NULL dereference
+ Potential Mitigations

Phase: Architecture and Design

In languages that support it, use synchronization primitives. Only wrap these around critical code to minimize the impact on performance.

Phase: Architecture and Design

Use thread-safe capabilities such as the data access abstraction in Spring.

Phase: Architecture and Design

Minimize the usage of shared resources in order to remove as much complexity as possible from the control flow and to reduce the likelihood of unexpected conditions occurring.

Additionally, this will minimize the amount of synchronization necessary and may even help to reduce the likelihood of a denial of service where an attacker may be able to repeatedly trigger a critical section (CWE-400).

Phase: Implementation

When using multithreading and operating on shared variables, only use thread-safe functions.

Phase: Implementation

Use atomic operations on shared variables. Be wary of innocent-looking constructs such as "x++". This may appear atomic at the code layer, but it is actually non-atomic at the instruction layer, since it involves a read, followed by a computation, followed by a write.

Phase: Implementation

Use a mutex if available, but be sure to avoid related weaknesses such as CWE-412.

Phase: Implementation

Avoid double-checked locking (CWE-609) and other implementation errors that arise when trying to avoid the overhead of synchronization.

Phase: Implementation

Disable interrupts or signals over critical parts of the code, but also make sure that the code does not go into a large or infinite loop.

Phase: Implementation

Use the volatile type modifier for critical variables to avoid unexpected compiler optimization or reordering. This does not necessarily solve the synchronization problem, but it can help.

Phases: Architecture and Design; Operation

Strategy: Environment Hardening

Run your code using the lowest privileges that are required to accomplish the necessary tasks [REF-76]. If possible, create isolated accounts with limited privileges that are only used for a single task. That way, a successful attack will not immediately give the attacker access to the rest of the software or its environment. For example, database applications rarely need to run as the database administrator, especially in day-to-day operations.
+ Detection Methods

Black Box

Black box methods may be able to identify evidence of race conditions via methods such as multiple simultaneous connections, which may cause the software to become instable or crash. However, race conditions with very narrow timing windows would not be detectable.

White Box

Common idioms are detectable in white box analysis, such as time-of-check-time-of-use (TOCTOU) file operations (CWE-367), or double-checked locking (CWE-609).

Automated Dynamic Analysis

This weakness can be detected using dynamic tools and techniques that interact with the software using large test suites with many diverse inputs, such as fuzz testing (fuzzing), robustness testing, and fault injection. The software's operation may slow down, but it should not become unstable, crash, or generate incorrect results.

Race conditions may be detected with a stress-test by calling the software simultaneously from a large number of threads or processes, and look for evidence of any unexpected behavior.

Insert breakpoints or delays in between relevant code statements to artificially expand the race window so that it will be easier to detect.

Effectiveness: Moderate

Automated Static Analysis - Binary or Bytecode

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Bytecode Weakness Analysis - including disassembler + source code weakness analysis
Cost effective for partial coverage:
  • Binary Weakness Analysis - including disassembler + source code weakness analysis

Effectiveness: High

Dynamic Analysis with Automated Results Interpretation

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Web Application Scanner
  • Web Services Scanner
  • Database Scanners

Effectiveness: SOAR Partial

Dynamic Analysis with Manual Results Interpretation

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Framework-based Fuzzer
Cost effective for partial coverage:
  • Fuzz Tester
  • Monitored Virtual Environment - run potentially malicious code in sandbox / wrapper / virtual machine, see if it does anything suspicious

Effectiveness: High

Manual Static Analysis - Source Code

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Manual Source Code Review (not inspections)
Cost effective for partial coverage:
  • Focused Manual Spotcheck - Focused manual analysis of source

Effectiveness: High

Automated Static Analysis - Source Code

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Source code Weakness Analyzer
  • Context-configured Source Code Weakness Analyzer

Effectiveness: High

Architecture or Design Review

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Formal Methods / Correct-By-Construction
Cost effective for partial coverage:
  • Inspection (IEEE 1028 standard) (can apply to requirements, design, source code, etc.)

Effectiveness: High

+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).635Weaknesses Originally Used by NVD from 2008 to 2016
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.743CERT C Secure Coding Standard (2008) Chapter 10 - Input Output (FIO)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.7512009 Top 25 - Insecure Interaction Between Components
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.8012010 Top 25 - Insecure Interaction Between Components
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.852The CERT Oracle Secure Coding Standard for Java (2011) Chapter 9 - Visibility and Atomicity (VNA)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.8672011 Top 25 - Weaknesses On the Cusp
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.877CERT C++ Secure Coding Section 09 - Input Output (FIO)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.882CERT C++ Secure Coding Section 14 - Concurrency (CON)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.988SFP Secondary Cluster: Race Condition Window
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).1003Weaknesses for Simplified Mapping of Published Vulnerabilities
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1142SEI CERT Oracle Secure Coding Standard for Java - Guidelines 08. Visibility and Atomicity (VNA)
+ Notes

Maintenance

The relationship between race conditions and synchronization problems (CWE-662) needs to be further developed. They are not necessarily two perspectives of the same core concept, since synchronization is only one technique for avoiding race conditions, and synchronization can be used for other purposes besides race condition prevention.

Research Gap

Race conditions in web applications are under-studied and probably under-reported. However, in 2008 there has been growing interest in this area.

Research Gap

Much of the focus of race condition research has been in Time-of-check Time-of-use (TOCTOU) variants (CWE-367), but many race conditions are related to synchronization problems that do not necessarily require a time-of-check.

Research Gap

From a classification/taxonomy perspective, the relationships between concurrency and program state need closer investigation and may be useful in organizing related issues.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
PLOVERRace Conditions
The CERT Oracle Secure Coding Standard for Java (2011)VNA03-JDo not assume that a group of calls to independently atomic methods is atomic
+ References
[REF-44] Michael Howard, David LeBlanc and John Viega. "24 Deadly Sins of Software Security". "Sin 13: Race Conditions." Page 205. McGraw-Hill. 2010.
[REF-349] Andrei Alexandrescu. "volatile - Multithreaded Programmer's Best Friend". Dr. Dobb's. 2008-02-01. <http://www.ddj.com/cpp/184403766>.
[REF-350] Steven Devijver. "Thread-safe webapps using Spring". <http://www.javalobby.org/articles/thread-safe/index.jsp>.
[REF-351] David Wheeler. "Prevent race conditions". 2007-10-04. <http://www.ibm.com/developerworks/library/l-sprace.html>.
[REF-352] Matt Bishop. "Race Conditions, Files, and Security Flaws; or the Tortoise and the Hare Redux". 1995-09. <http://www.cs.ucdavis.edu/research/tech-reports/1995/CSE-95-9.pdf>.
[REF-353] David Wheeler. "Secure Programming for Linux and Unix HOWTO". 2003-03-03. <http://www.dwheeler.com/secure-programs/Secure-Programs-HOWTO/avoid-race.html>.
[REF-354] Blake Watts. "Discovering and Exploiting Named Pipe Security Flaws for Fun and Profit". 2002-04. <http://www.blakewatts.com/namedpipepaper.html>.
[REF-355] Roberto Paleari, Davide Marrone, Danilo Bruschi and Mattia Monga. "On Race Vulnerabilities in Web Applications". <http://security.dico.unimi.it/~roberto/pubs/dimva08-web.pdf>.
[REF-356] "Avoiding Race Conditions and Insecure File Operations". Apple Developer Connection. <http://developer.apple.com/documentation/Security/Conceptual/SecureCodingGuide/Articles/RaceConditions.html>.
[REF-357] Johannes Ullrich. "Top 25 Series - Rank 25 - Race Conditions". SANS Software Security Institute. 2010-03-26. <http://blogs.sans.org/appsecstreetfighter/2010/03/26/top-25-series-rank-25-race-conditions/>.
[REF-76] Sean Barnum and Michael Gegick. "Least Privilege". 2005-09-14. <https://buildsecurityin.us-cert.gov/daisy/bsi/articles/knowledge/principles/351.html>.
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2006-07-19PLOVER
+ Contributions
Contribution DateContributorOrganization
2010-04-30Martin SeborCisco Systems, Inc.
Provided Demonstrative Example
+ Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2008-10-14CWE Content TeamMITRE
updated Relationships
2008-11-24CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-01-12CWE Content TeamMITRE
updated Applicable_Platforms, Common_Consequences, Demonstrative_Examples, Description, Likelihood_of_Exploit, Maintenance_Notes, Observed_Examples, Potential_Mitigations, References, Relationships, Research_Gaps
2009-03-10CWE Content TeamMITRE
updated Demonstrative_Examples, Potential_Mitigations
2009-05-27CWE Content TeamMITRE
updated Relationships
2010-02-16CWE Content TeamMITRE
updated Detection_Factors, References, Relationships
2010-06-21CWE Content TeamMITRE
updated Common_Consequences, Demonstrative_Examples, Detection_Factors, Potential_Mitigations, References
2010-09-27CWE Content TeamMITRE
updated Observed_Examples, Potential_Mitigations, Relationships
2010-12-13CWE Content TeamMITRE
updated Applicable_Platforms, Demonstrative_Examples, Description, Name, Potential_Mitigations, Relationships
2011-06-01CWE Content TeamMITRE
updated Common_Consequences, Relationships, Taxonomy_Mappings
2011-06-27CWE Content TeamMITRE
updated Relationships
2011-09-13CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Potential_Mitigations, References, Relationships
2014-07-30CWE Content TeamMITRE
updated Detection_Factors, Relationships
2015-12-07CWE Content TeamMITRE
updated Relationships
2017-11-08CWE Content TeamMITRE
updated Demonstrative_Examples, References, Research_Gaps, Taxonomy_Mappings
2019-01-03CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2019-06-20CWE Content TeamMITRE
updated Relationships
2020-02-24CWE Content TeamMITRE
updated Applicable_Platforms, Demonstrative_Examples, Observed_Examples, Relationships
2020-08-20CWE Content TeamMITRE
updated Relationships
2021-03-15CWE Content TeamMITRE
updated Demonstrative_Examples
+ Previous Entry Names
Change DatePrevious Entry Name
2008-04-11Race Conditions
2010-12-13Race Condition

CWE-352: Cross-Site Request Forgery (CSRF)

Weakness ID: 352
Abstraction: Compound
Structure: Composite
Status: Stable
Presentation Filter:
+ Description
The web application does not, or can not, sufficiently verify whether a well-formed, valid, consistent request was intentionally provided by the user who submitted the request.
+ Composite Components
NatureTypeIDName
RequiresBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.346Origin Validation Error
RequiresClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.441Unintended Proxy or Intermediary ('Confused Deputy')
RequiresClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.642External Control of Critical State Data
RequiresBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.613Insufficient Session Expiration
+ Extended Description
When a web server is designed to receive a request from a client without any mechanism for verifying that it was intentionally sent, then it might be possible for an attacker to trick a client into making an unintentional request to the web server which will be treated as an authentic request. This can be done via a URL, image load, XMLHttpRequest, etc. and can result in exposure of data or unintended code execution.
+ Alternate Terms
Session Riding
Cross Site Reference Forgery
XSRF
+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.345Insufficient Verification of Data Authenticity
PeerOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.79Improper Neutralization of Input During Web Page Generation ('Cross-site Scripting')
CanFollowVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.1275Sensitive Cookie with Improper SameSite Attribute
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.345Insufficient Verification of Data Authenticity
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Architectural Concepts" (CWE-1008)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1019Validate Inputs
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Architecture and DesignREALIZATION: This weakness is caused during implementation of an architectural security tactic.
+ Applicable Platforms
Section HelpThis listing shows possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Language-Independent (Undetermined Prevalence)

Technologies

Web Server (Undetermined Prevalence)

+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Confidentiality
Integrity
Availability
Non-Repudiation
Access Control

Technical Impact: Gain Privileges or Assume Identity; Bypass Protection Mechanism; Read Application Data; Modify Application Data; DoS: Crash, Exit, or Restart

The consequences will vary depending on the nature of the functionality that is vulnerable to CSRF. An attacker could effectively perform any operations as the victim. If the victim is an administrator or privileged user, the consequences may include obtaining complete control over the web application - deleting or stealing data, uninstalling the product, or using it to launch other attacks against all of the product's users. Because the attacker has the identity of the victim, the scope of CSRF is limited only by the victim's privileges.
+ Likelihood Of Exploit
Medium
+ Demonstrative Examples

Example 1

This example PHP code attempts to secure the form submission process by validating that the user submitting the form has a valid session. A CSRF attack would not be prevented by this countermeasure because the attacker forges a request through the user's web browser in which a valid session already exists.

The following HTML is intended to allow a user to update a profile.

(bad code)
Example Language: HTML
<form action="/url/profile.php" method="post">
<input type="text" name="firstname"/>
<input type="text" name="lastname"/>
<br/>
<input type="text" name="email"/>
<input type="submit" name="submit" value="Update"/>
</form>

profile.php contains the following code.

(bad code)
Example Language: PHP
// initiate the session in order to validate sessions

session_start();

//if the session is registered to a valid user then allow update

if (! session_is_registered("username")) {

echo "invalid session detected!";

// Redirect user to login page
[...]

exit;
}

// The user session is valid, so process the request

// and update the information

update_profile();

function update_profile {

// read in the data from $POST and send an update

// to the database
SendUpdateToDatabase($_SESSION['username'], $_POST['email']);
[...]
echo "Your profile has been successfully updated.";
}

This code may look protected since it checks for a valid session. However, CSRF attacks can be staged from virtually any tag or HTML construct, including image tags, links, embed or object tags, or other attributes that load background images.

The attacker can then host code that will silently change the username and email address of any user that visits the page while remaining logged in to the target web application. The code might be an innocent-looking web page such as:

(attack code)
Example Language: HTML
<SCRIPT>
function SendAttack () {
form.email = "attacker@example.com";
// send to profile.php
form.submit();
}
</SCRIPT>

<BODY onload="javascript:SendAttack();">

<form action="http://victim.example.com/profile.php" id="form" method="post">
<input type="hidden" name="firstname" value="Funny">
<input type="hidden" name="lastname" value="Joke">
<br/>
<input type="hidden" name="email">
</form>

Notice how the form contains hidden fields, so when it is loaded into the browser, the user will not notice it. Because SendAttack() is defined in the body's onload attribute, it will be automatically called when the victim loads the web page.

Assuming that the user is already logged in to victim.example.com, profile.php will see that a valid user session has been established, then update the email address to the attacker's own address. At this stage, the user's identity has been compromised, and messages sent through this profile could be sent to the attacker's address.

+ Observed Examples
ReferenceDescription
Add user accounts via a URL in an img tag
Add user accounts via a URL in an img tag
Arbitrary code execution by specifying the code in a crafted img tag or URL
Gain administrative privileges via a URL in an img tag
Delete a victim's information via a URL or an img tag
Change another user's settings via a URL or an img tag
Perform actions as administrator via a URL or an img tag
modify password for the administrator
CMS allows modification of configuration via CSRF attack against the administrator
web interface allows password changes or stopping a virtual machine via CSRF
+ Potential Mitigations

Phase: Architecture and Design

Strategy: Libraries or Frameworks

Use a vetted library or framework that does not allow this weakness to occur or provides constructs that make this weakness easier to avoid.

For example, use anti-CSRF packages such as the OWASP CSRFGuard. [REF-330]

Another example is the ESAPI Session Management control, which includes a component for CSRF. [REF-45]

Phase: Implementation

Ensure that the application is free of cross-site scripting issues (CWE-79), because most CSRF defenses can be bypassed using attacker-controlled script.

Phase: Architecture and Design

Generate a unique nonce for each form, place the nonce into the form, and verify the nonce upon receipt of the form. Be sure that the nonce is not predictable (CWE-330). [REF-332]
Note: Note that this can be bypassed using XSS (CWE-79).

Phase: Architecture and Design

Identify especially dangerous operations. When the user performs a dangerous operation, send a separate confirmation request to ensure that the user intended to perform that operation.
Note: Note that this can be bypassed using XSS (CWE-79).

Phase: Architecture and Design

Use the "double-submitted cookie" method as described by Felten and Zeller:

When a user visits a site, the site should generate a pseudorandom value and set it as a cookie on the user's machine. The site should require every form submission to include this value as a form value and also as a cookie value. When a POST request is sent to the site, the request should only be considered valid if the form value and the cookie value are the same.

Because of the same-origin policy, an attacker cannot read or modify the value stored in the cookie. To successfully submit a form on behalf of the user, the attacker would have to correctly guess the pseudorandom value. If the pseudorandom value is cryptographically strong, this will be prohibitively difficult.

This technique requires Javascript, so it may not work for browsers that have Javascript disabled. [REF-331]

Note: Note that this can probably be bypassed using XSS (CWE-79), or when using web technologies that enable the attacker to read raw headers from HTTP requests.

Phase: Architecture and Design

Do not use the GET method for any request that triggers a state change.

Phase: Implementation

Check the HTTP Referer header to see if the request originated from an expected page. This could break legitimate functionality, because users or proxies may have disabled sending the Referer for privacy reasons.
Note: Note that this can be bypassed using XSS (CWE-79). An attacker could use XSS to generate a spoofed Referer, or to generate a malicious request from a page whose Referer would be allowed.
+ Detection Methods

Manual Analysis

This weakness can be detected using tools and techniques that require manual (human) analysis, such as penetration testing, threat modeling, and interactive tools that allow the tester to record and modify an active session.

Specifically, manual analysis can be useful for finding this weakness, and for minimizing false positives assuming an understanding of business logic. However, it might not achieve desired code coverage within limited time constraints. For black-box analysis, if credentials are not known for privileged accounts, then the most security-critical portions of the application may not receive sufficient attention.

Consider using OWASP CSRFTester to identify potential issues and aid in manual analysis.

Effectiveness: High

Note: These may be more effective than strictly automated techniques. This is especially the case with weaknesses that are related to design and business rules.

Automated Static Analysis

CSRF is currently difficult to detect reliably using automated techniques. This is because each application has its own implicit security policy that dictates which requests can be influenced by an outsider and automatically performed on behalf of a user, versus which requests require strong confidence that the user intends to make the request. For example, a keyword search of the public portion of a web site is typically expected to be encoded within a link that can be launched automatically when the user clicks on the link.

Effectiveness: Limited

Automated Static Analysis - Binary or Bytecode

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Bytecode Weakness Analysis - including disassembler + source code weakness analysis
  • Binary Weakness Analysis - including disassembler + source code weakness analysis

Effectiveness: SOAR Partial

Manual Static Analysis - Binary or Bytecode

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Binary / Bytecode disassembler - then use manual analysis for vulnerabilities & anomalies

Effectiveness: SOAR Partial

Dynamic Analysis with Automated Results Interpretation

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Web Application Scanner

Effectiveness: High

Dynamic Analysis with Manual Results Interpretation

According to SOAR, the following detection techniques may be useful:

Highly cost effective:
  • Fuzz Tester
  • Framework-based Fuzzer

Effectiveness: High

Manual Static Analysis - Source Code

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Focused Manual Spotcheck - Focused manual analysis of source
  • Manual Source Code Review (not inspections)

Effectiveness: SOAR Partial

Automated Static Analysis - Source Code

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Source code Weakness Analyzer
  • Context-configured Source Code Weakness Analyzer

Effectiveness: SOAR Partial

Architecture or Design Review

According to SOAR, the following detection techniques may be useful:

Cost effective for partial coverage:
  • Inspection (IEEE 1028 standard) (can apply to requirements, design, source code, etc.)
  • Formal Methods / Correct-By-Construction

Effectiveness: SOAR Partial

+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).635Weaknesses Originally Used by NVD from 2008 to 2016
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.716OWASP Top Ten 2007 Category A5 - Cross Site Request Forgery (CSRF)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.7512009 Top 25 - Insecure Interaction Between Components
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.8012010 Top 25 - Insecure Interaction Between Components
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.814OWASP Top Ten 2010 Category A5 - Cross-Site Request Forgery(CSRF)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.8642011 Top 25 - Insecure Interaction Between Components
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.936OWASP Top Ten 2013 Category A8 - Cross-Site Request Forgery (CSRF)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).1200Weaknesses in the 2019 CWE Top 25 Most Dangerous Software Errors
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).1337Weaknesses in the 2021 CWE Top 25 Most Dangerous Software Weaknesses
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).1350Weaknesses in the 2020 CWE Top 25 Most Dangerous Software Weaknesses
+ Notes

Relationship

There can be a close relationship between XSS and CSRF (CWE-352). An attacker might use CSRF in order to trick the victim into submitting requests to the server in which the requests contain an XSS payload. A well-known example of this was the Samy worm on MySpace [REF-956]. The worm used XSS to insert malicious HTML sequences into a user's profile and add the attacker as a MySpace friend. MySpace friends of that victim would then execute the payload to modify their own profiles, causing the worm to propagate exponentially. Since the victims did not intentionally insert the malicious script themselves, CSRF was a root cause.

Theoretical

The CSRF topology is multi-channel:

  1. Attacker (as outsider) to intermediary (as user). The interaction point is either an external or internal channel.
  2. Intermediary (as user) to server (as victim). The activation point is an internal channel.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
PLOVERCross-Site Request Forgery (CSRF)
OWASP Top Ten 2007A5ExactCross Site Request Forgery (CSRF)
WASC9Cross-site Request Forgery
+ References
[REF-44] Michael Howard, David LeBlanc and John Viega. "24 Deadly Sins of Software Security". "Sin 2: Web-Server Related Vulnerabilities (XSS, XSRF, and Response Splitting)." Page 37. McGraw-Hill. 2010.
[REF-329] Peter W. "Cross-Site Request Forgeries (Re: The Dangers of Allowing Users to Post Images)". Bugtraq. <http://marc.info/?l=bugtraq&m=99263135911884&w=2>.
[REF-330] OWASP. "Cross-Site Request Forgery (CSRF) Prevention Cheat Sheet". <http://www.owasp.org/index.php/Cross-Site_Request_Forgery_(CSRF)_Prevention_Cheat_Sheet>.
[REF-331] Edward W. Felten and William Zeller. "Cross-Site Request Forgeries: Exploitation and Prevention". 2008-10-18. <http://citeseerx.ist.psu.edu/viewdoc/summary?doi=10.1.1.147.1445>.
[REF-332] Robert Auger. "CSRF - The Cross-Site Request Forgery (CSRF/XSRF) FAQ". <http://www.cgisecurity.com/articles/csrf-faq.shtml>.
[REF-333] "Cross-site request forgery". Wikipedia. 2008-12-22. <http://en.wikipedia.org/wiki/Cross-site_request_forgery>.
[REF-334] Jason Lam. "Top 25 Series - Rank 4 - Cross Site Request Forgery". SANS Software Security Institute. 2010-03-03. <http://software-security.sans.org/blog/2010/03/03/top-25-series-rank-4-cross-site-request-forgery>.
[REF-335] Jeff Atwood. "Preventing CSRF and XSRF Attacks". 2008-10-14. <http://www.codinghorror.com/blog/2008/10/preventing-csrf-and-xsrf-attacks.html>.
[REF-45] OWASP. "OWASP Enterprise Security API (ESAPI) Project". <http://www.owasp.org/index.php/ESAPI>.
[REF-956] Wikipedia. "Samy (computer worm)". 2018-01-16. <https://en.wikipedia.org/wiki/Samy_(computer_worm)>.
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2006-07-19PLOVER
+ Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Alternate_Terms, Description, Relationships, Other_Notes, Relationship_Notes, Taxonomy_Mappings
2009-01-12CWE Content TeamMITRE
updated Applicable_Platforms, Description, Likelihood_of_Exploit, Observed_Examples, Other_Notes, Potential_Mitigations, References, Relationship_Notes, Relationships, Research_Gaps, Theoretical_Notes
2009-03-10CWE Content TeamMITRE
updated Potential_Mitigations
2009-05-20Tom Stracener
Added demonstrative example for profile.
2009-05-27CWE Content TeamMITRE
updated Demonstrative_Examples, Related_Attack_Patterns
2009-12-28CWE Content TeamMITRE
updated Common_Consequences, Demonstrative_Examples, Detection_Factors, Likelihood_of_Exploit, Observed_Examples, Potential_Mitigations, Time_of_Introduction
2010-02-16CWE Content TeamMITRE
updated Applicable_Platforms, Detection_Factors, References, Relationships, Taxonomy_Mappings
2010-06-21CWE Content TeamMITRE
updated Common_Consequences, Detection_Factors, Potential_Mitigations, References, Relationships
2010-09-27CWE Content TeamMITRE
updated Potential_Mitigations
2011-03-29CWE Content TeamMITRE
updated Description
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2011-06-27CWE Content TeamMITRE
updated Relationships
2011-09-13CWE Content TeamMITRE
updated Potential_Mitigations, References
2012-05-11CWE Content TeamMITRE
updated Related_Attack_Patterns, Relationships
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2013-02-21CWE Content TeamMITRE
updated Relationships
2013-07-17CWE Content TeamMITRE
updated References, Relationships
2014-07-30CWE Content TeamMITRE
updated Detection_Factors
2015-12-07CWE Content TeamMITRE
updated Relationships
2017-11-08CWE Content TeamMITRE
updated Applicable_Platforms, Likelihood_of_Exploit, Modes_of_Introduction, References, Relationships
2018-03-27CWE Content TeamMITRE
updated References, Relationship_Notes, Research_Gaps
2019-09-19CWE Content TeamMITRE
updated Relationships
2020-02-24CWE Content TeamMITRE
updated Relationships
2020-06-25CWE Content TeamMITRE
updated Relationships, Theoretical_Notes
2020-08-20CWE Content TeamMITRE
updated Relationships
2021-07-20CWE Content TeamMITRE
updated Relationships

CWE-502: Deserialization of Untrusted Data

Weakness ID: 502
Abstraction: Base
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The application deserializes untrusted data without sufficiently verifying that the resulting data will be valid.
+ Extended Description

It is often convenient to serialize objects for communication or to save them for later use. However, deserialized data or code can often be modified without using the provided accessor functions if it does not use cryptography to protect itself. Furthermore, any cryptography would still be client-side security -- which is a dangerous security assumption.

Data that is untrusted can not be trusted to be well-formed.

When developers place no restrictions on "gadget chains," or series of instances and method invocations that can self-execute during the deserialization process (i.e., before the object is returned to the caller), it is sometimes possible for attackers to leverage them to perform unauthorized actions, like generating a shell.

+ Alternate Terms
Marshaling, Unmarshaling:
Marshaling and unmarshaling are effectively synonyms for serialization and deserialization, respectively.
Pickling, Unpickling:
In Python, the "pickle" functionality is used to perform serialization and deserialization.
PHP Object Injection:
Some PHP application researchers use this term when attacking unsafe use of the unserialize() function; but it is also used for CWE-915.
+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.913Improper Control of Dynamically-Managed Code Resources
PeerOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.915Improperly Controlled Modification of Dynamically-Determined Object Attributes
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Software Development" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.399Resource Management Errors
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.913Improper Control of Dynamically-Managed Code Resources
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Architectural Concepts" (CWE-1008)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1019Validate Inputs
+ Background Details
Serialization and deserialization refer to the process of taking program-internal object-related data, packaging it in a way that allows the data to be externally stored or transferred ("serialization"), then extracting the serialized data to reconstruct the original object ("deserialization").
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Architecture and DesignOMISSION: This weakness is caused by missing a security tactic during the architecture and design phase.
Implementation
+ Applicable Platforms
Section HelpThis listing shows possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Java (Undetermined Prevalence)

Ruby (Undetermined Prevalence)

PHP (Undetermined Prevalence)

Python (Undetermined Prevalence)

JavaScript (Undetermined Prevalence)

+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Integrity

Technical Impact: Modify Application Data; Unexpected State

Attackers can modify unexpected objects or data that was assumed to be safe from modification.
Availability

Technical Impact: DoS: Resource Consumption (CPU)

If a function is making an assumption on when to terminate, based on a sentry in a string, it could easily never terminate.
Other

Technical Impact: Varies by Context

The consequences can vary widely, because it depends on which objects or methods are being deserialized, and how they are used. Making an assumption that the code in the deserialized object is valid is dangerous and can enable exploitation.
+ Likelihood Of Exploit
Medium
+ Demonstrative Examples

Example 1

This code snippet deserializes an object from a file and uses it as a UI button:

(bad code)
Example Language: Java
try {
File file = new File("object.obj");
ObjectInputStream in = new ObjectInputStream(new FileInputStream(file));
javax.swing.JButton button = (javax.swing.JButton) in.readObject();
in.close();
}

This code does not attempt to verify the source or contents of the file before deserializing it. An attacker may be able to replace the intended file with a file that contains arbitrary malicious code which will be executed when the button is pressed.

To mitigate this, explicitly define final readObject() to prevent deserialization. An example of this is:

(good code)
Example Language: Java
private final void readObject(ObjectInputStream in) throws java.io.IOException {
throw new java.io.IOException("Cannot be deserialized"); }

Example 2

In Python, the Pickle library handles the serialization and deserialization processes. In this example derived from [REF-467], the code receives and parses data, and afterwards tries to authenticate a user based on validating a token.

(bad code)
Example Language: Python
try {
class ExampleProtocol(protocol.Protocol):
def dataReceived(self, data):

# Code that would be here would parse the incoming data
# After receiving headers, call confirmAuth() to authenticate

def confirmAuth(self, headers):
try:
token = cPickle.loads(base64.b64decode(headers['AuthToken']))
if not check_hmac(token['signature'], token['data'], getSecretKey()):
raise AuthFail
self.secure_data = token['data']
except:
raise AuthFail
}

Unfortunately, the code does not verify that the incoming data is legitimate. An attacker can construct a illegitimate, serialized object "AuthToken" that instantiates one of Python's subprocesses to execute arbitrary commands. For instance,the attacker could construct a pickle that leverages Python's subprocess module, which spawns new processes and includes a number of arguments for various uses. Since Pickle allows objects to define the process for how they should be unpickled, the attacker can direct the unpickle process to call Popen in the subprocess module and execute /bin/sh.

+ Observed Examples
ReferenceDescription
chain: bypass of untrusted deserialization issue (CWE-502) by using an assumed-trusted class (CWE-183)
Deserialization issue in commonly-used Java library allows remote execution.
Deserialization issue in commonly-used Java library allows remote execution.
Use of PHP unserialize function on untrusted input allows attacker to modify application configuration.
Use of PHP unserialize function on untrusted input in content management system might allow code execution.
Use of PHP unserialize function on untrusted input in content management system allows code execution using a crafted cookie value.
Content management system written in PHP allows unserialize of arbitrary objects, possibly allowing code execution.
Python script allows local users to execute code via pickled data.
Unsafe deserialization using pickle in a Python script.
Web browser allows execution of native methods via a crafted string to a JavaScript function that deserializes the string.
+ Potential Mitigations

Phases: Architecture and Design; Implementation

If available, use the signing/sealing features of the programming language to assure that deserialized data has not been tainted. For example, a hash-based message authentication code (HMAC) could be used to ensure that data has not been modified.

Phase: Implementation

When deserializing data, populate a new object rather than just deserializing. The result is that the data flows through safe input validation and that the functions are safe.

Phase: Implementation

Explicitly define a final object() to prevent deserialization.

Phases: Architecture and Design; Implementation

Make fields transient to protect them from deserialization.

An attempt to serialize and then deserialize a class containing transient fields will result in NULLs where the transient data should be. This is an excellent way to prevent time, environment-based, or sensitive variables from being carried over and used improperly.

Phase: Implementation

Avoid having unnecessary types or gadgets available that can be leveraged for malicious ends. This limits the potential for unintended or unauthorized types and gadgets to be leveraged by the attacker. Add only acceptable classes to an allowlist. Note: new gadgets are constantly being discovered, so this alone is not a sufficient mitigation.
+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.858The CERT Oracle Secure Coding Standard for Java (2011) Chapter 15 - Serialization (SER)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.994SFP Secondary Cluster: Tainted Input to Variable
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1034OWASP Top Ten 2017 Category A8 - Insecure Deserialization
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1148SEI CERT Oracle Secure Coding Standard for Java - Guidelines 14. Serialization (SER)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).1200Weaknesses in the 2019 CWE Top 25 Most Dangerous Software Errors
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1308CISQ Quality Measures - Security
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).1337Weaknesses in the 2021 CWE Top 25 Most Dangerous Software Weaknesses
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).1340CISQ Data Protection Measures
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).1350Weaknesses in the 2020 CWE Top 25 Most Dangerous Software Weaknesses
+ Notes

Maintenance

The relationships between CWE-502 and CWE-915 need further exploration. CWE-915 is more narrowly scoped to object modification, and is not necessarily used for deserialization.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CLASPDeserialization of untrusted data
The CERT Oracle Secure Coding Standard for Java (2011)SER01-JDo not deviate from the proper signatures of serialization methods
The CERT Oracle Secure Coding Standard for Java (2011)SER03-JDo not serialize unencrypted, sensitive data
The CERT Oracle Secure Coding Standard for Java (2011)SER06-JMake defensive copies of private mutable components during deserialization
The CERT Oracle Secure Coding Standard for Java (2011)SER08-JDo not use the default serialized form for implementation defined invariants
Software Fault PatternsSFP25Tainted input to variable
+ References
[REF-18] Secure Software, Inc.. "The CLASP Application Security Process". 2005. <https://cwe.mitre.org/documents/sources/TheCLASPApplicationSecurityProcess.pdf>.
[REF-461] Matthias Kaiser. "Exploiting Deserialization Vulnerabilities in Java". 2015-10-28. <http://www.slideshare.net/codewhitesec/exploiting-deserialization-vulnerabilities-in-java-54707478>.
[REF-462] Sam Thomas. "PHP unserialization vulnerabilities: What are we missing?". 2015-08-27. <http://www.slideshare.net/_s_n_t/php-unserialization-vulnerabilities-what-are-we-missing>.
[REF-463] Gabriel Lawrence and Chris Frohoff. "Marshalling Pickles: How deserializing objects can ruin your day". 2015-01-28. <http://www.slideshare.net/frohoff1/appseccali-2015-marshalling-pickles>.
[REF-464] Heine Deelstra. "Unserializing user-supplied data, a bad idea". 2010-08-25. <http://heine.familiedeelstra.com/security/unserialize>.
[REF-465] Manish S. Saindane. "Black Hat EU 2010 - Attacking Java Serialized Communication". 2010-04-26. <http://www.slideshare.net/msaindane/black-hat-eu-2010-attacking-java-serialized-communication>.
[REF-466] Nadia Alramli. "Why Python Pickle is Insecure". 2009-09-09. <http://nadiana.com/python-pickle-insecure>.
[REF-467] Nelson Elhage. "Exploiting misuse of Python's "pickle"". 2011-03-20. <https://blog.nelhage.com/2011/03/exploiting-pickle/>.
[REF-468] Chris Frohoff. "Deserialize My Shorts: Or How I Learned to Start Worrying and Hate Java Object Deserialization". 2016-03-21. <https://www.slideshare.net/frohoff1/deserialize-my-shorts-or-how-i-learned-to-start-worrying-and-hate-java-object-deserialization>.
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2006-07-19CLASP
+ Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Common_Consequences, Description, Relationships, Other_Notes, Taxonomy_Mappings
2009-10-29CWE Content TeamMITRE
updated Description, Other_Notes, Potential_Mitigations
2011-06-01CWE Content TeamMITRE
updated Common_Consequences, Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-10-30CWE Content TeamMITRE
updated Demonstrative_Examples
2013-02-21CWE Content TeamMITRE
updated Alternate_Terms, Applicable_Platforms, Background_Details, Common_Consequences, Maintenance_Notes, Observed_Examples, Potential_Mitigations, References, Relationships
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2015-12-07CWE Content TeamMITRE
updated Observed_Examples, References, Relationships
2017-05-03CWE Content TeamMITRE
updated Applicable_Platforms, Demonstrative_Examples, Description, Potential_Mitigations, References
2017-11-08CWE Content TeamMITRE
updated Applicable_Platforms, Common_Consequences, Demonstrative_Examples, Modes_of_Introduction, Potential_Mitigations, References, Relationships
2018-03-27CWE Content TeamMITRE
updated Relationships
2019-01-03CWE Content TeamMITRE
updated Related_Attack_Patterns, Relationships, Taxonomy_Mappings
2019-06-20CWE Content TeamMITRE
updated Type
2019-09-19CWE Content TeamMITRE
updated Relationships
2020-02-24CWE Content TeamMITRE
updated Observed_Examples, References, Relationships
2020-06-25CWE Content TeamMITRE
updated Alternate_Terms, Potential_Mitigations
2020-08-20CWE Content TeamMITRE
updated Relationships
2020-12-10CWE Content TeamMITRE
updated Relationships
2021-07-20CWE Content TeamMITRE
updated Relationships

CWE-425: Direct Request ('Forced Browsing')

Weakness ID: 425
Abstraction: Base
Structure: Simple
Status: Incomplete
Presentation Filter:
+ Description
The web application does not adequately enforce appropriate authorization on all restricted URLs, scripts, or files.
+ Extended Description
Web applications susceptible to direct request attacks often make the false assumption that such resources can only be reached through a given navigation path and so only apply authorization at certain points in the path.
+ Alternate Terms
forced browsing:
The "forced browsing" term could be misinterpreted to include weaknesses such as CSRF or XSS, so its use is discouraged.
+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.288Authentication Bypass Using an Alternate Path or Channel
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.424Improper Protection of Alternate Path
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.862Missing Authorization
PeerOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.288Authentication Bypass Using an Alternate Path or Channel
CanPrecedeVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.98Improper Control of Filename for Include/Require Statement in PHP Program ('PHP Remote File Inclusion')
CanPrecedeBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.471Modification of Assumed-Immutable Data (MAID)
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Software Development" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1212Authorization Errors
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.417Communication Channel Errors
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.862Missing Authorization
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Architectural Concepts" (CWE-1008)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1011Authorize Actors
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Architecture and DesignOMISSION: This weakness is caused by missing a security tactic during the architecture and design phase.
Implementation
Operation
+ Applicable Platforms
Section HelpThis listing shows possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Language-Independent (Undetermined Prevalence)

Technologies

Class: Web Based (Undetermined Prevalence)

+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Confidentiality
Integrity
Availability
Access Control

Technical Impact: Read Application Data; Modify Application Data; Execute Unauthorized Code or Commands; Gain Privileges or Assume Identity

+ Demonstrative Examples

Example 1

If forced browsing is possible, an attacker may be able to directly access a sensitive page by entering a URL similar to the following.

(attack code)
Example Language: JSP
http://somesite.com/someapplication/admin.jsp
+ Observed Examples
ReferenceDescription
Bypass authentication via direct request.
Infinite loop or infoleak triggered by direct requests.
Bypass auth/auth via direct request.
Direct request leads to infoleak by error.
Direct request leads to infoleak by error.
Direct request leads to infoleak by error.
Authentication bypass via direct request.
Authentication bypass via direct request.
Authorization bypass using direct request.
Access privileged functionality using direct request.
Upload arbitrary files via direct request.
+ Potential Mitigations

Phases: Architecture and Design; Operation

Apply appropriate access control authorizations for each access to all restricted URLs, scripts or files.

Phase: Architecture and Design

Consider using MVC based frameworks such as Struts.
+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.721OWASP Top Ten 2007 Category A10 - Failure to Restrict URL Access
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.722OWASP Top Ten 2004 Category A1 - Unvalidated Input
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.723OWASP Top Ten 2004 Category A2 - Broken Access Control
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.953SFP Secondary Cluster: Missing Endpoint Authentication
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1031OWASP Top Ten 2017 Category A5 - Broken Access Control
+ Notes

Relationship

Overlaps Modification of Assumed-Immutable Data (MAID), authorization errors, container errors; often primary to other weaknesses such as XSS and SQL injection.

Theoretical

"Forced browsing" is a step-based manipulation involving the omission of one or more steps, whose order is assumed to be immutable. The application does not verify that the first step was performed successfully before the second step. The consequence is typically "authentication bypass" or "path disclosure," although it can be primary to all kinds of weaknesses, especially in languages such as PHP, which allow external modification of assumed-immutable variables.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
PLOVERDirect Request aka 'Forced Browsing'
OWASP Top Ten 2007A10CWE More SpecificFailure to Restrict URL Access
OWASP Top Ten 2004A1CWE More SpecificUnvalidated Input
OWASP Top Ten 2004A2CWE More SpecificBroken Access Control
WASC34Predictable Resource Location
Software Fault PatternsSFP30Missing endpoint authentication
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2006-07-19PLOVER
+ Modifications
Modification DateModifierOrganization
2008-07-01Sean EidemillerCigital
added/updated demonstrative examples
2008-07-01Eric DalciCigital
updated Potential_Mitigations, Time_of_Introduction
2008-08-15Veracode
Suggested OWASP Top Ten 2004 mapping
2008-09-08CWE Content TeamMITRE
updated Alternate_Terms, Relationships, Relationship_Notes, Taxonomy_Mappings, Theoretical_Notes
2008-10-14CWE Content TeamMITRE
updated Description
2010-02-16CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2011-03-29CWE Content TeamMITRE
updated Applicable_Platforms, Description, Relationships
2011-06-01CWE Content TeamMITRE
updated Common_Consequences, Relationships
2012-05-11CWE Content TeamMITRE
updated Related_Attack_Patterns, Relationships
2012-10-30CWE Content TeamMITRE
updated Potential_Mitigations
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2017-11-08CWE Content TeamMITRE
updated Modes_of_Introduction, Relationships
2018-03-27CWE Content TeamMITRE
updated Relationships
2019-06-20CWE Content TeamMITRE
updated Relationships
2020-02-24CWE Content TeamMITRE
updated Applicable_Platforms, Relationships
2021-07-20CWE Content TeamMITRE
updated Related_Attack_Patterns

CWE-369: Divide By Zero

Weakness ID: 369
Abstraction: Base
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The product divides a value by zero.
+ Extended Description
This weakness typically occurs when an unexpected value is provided to the product, or if an error occurs that is not properly detected. It frequently occurs in calculations involving physical dimensions such as size, length, width, and height.
+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfPillarPillar - a weakness that is the most abstract type of weakness and represents a theme for all class/base/variant weaknesses related to it. A Pillar is different from a Category as a Pillar is still technically a type of weakness that describes a mistake, while a Category represents a common characteristic used to group related things.682Incorrect Calculation
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Software Development" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.189Numeric Errors
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfPillarPillar - a weakness that is the most abstract type of weakness and represents a theme for all class/base/variant weaknesses related to it. A Pillar is different from a Category as a Pillar is still technically a type of weakness that describes a mistake, while a Category represents a common characteristic used to group related things.682Incorrect Calculation
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "CISQ Quality Measures (2020)" (CWE-1305)
NatureTypeIDName
ChildOfPillarPillar - a weakness that is the most abstract type of weakness and represents a theme for all class/base/variant weaknesses related to it. A Pillar is different from a Category as a Pillar is still technically a type of weakness that describes a mistake, while a Category represents a common characteristic used to group related things.682Incorrect Calculation
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "CISQ Data Protection Measures" (CWE-1340)
NatureTypeIDName
ChildOfPillarPillar - a weakness that is the most abstract type of weakness and represents a theme for all class/base/variant weaknesses related to it. A Pillar is different from a Category as a Pillar is still technically a type of weakness that describes a mistake, while a Category represents a common characteristic used to group related things.682Incorrect Calculation
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Implementation
+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Availability

Technical Impact: DoS: Crash, Exit, or Restart

A Divide by Zero results in a crash.
+ Likelihood Of Exploit
Medium
+ Demonstrative Examples

Example 1

The following Java example contains a function to compute an average but does not validate that the input value used as the denominator is not zero. This will create an exception for attempting to divide by zero. If this error is not handled by Java exception handling, unexpected results can occur.

(bad code)
Example Language: Java
public int computeAverageResponseTime (int totalTime, int numRequests) {
return totalTime / numRequests;
}

By validating the input value used as the denominator the following code will ensure that a divide by zero error will not cause unexpected results. The following Java code example will validate the input value, output an error message, and throw an exception.

(good code)

public int computeAverageResponseTime (int totalTime, int numRequests) throws ArithmeticException {
if (numRequests == 0) {
System.out.println("Division by zero attempted!");
throw ArithmeticException;
}
return totalTime / numRequests;
}

Example 2

The following C/C++ example contains a function that divides two numeric values without verifying that the input value used as the denominator is not zero. This will create an error for attempting to divide by zero, if this error is not caught by the error handling capabilities of the language, unexpected results can occur.

(bad code)
Example Language:
double divide(double x, double y){
return x/y;
}

By validating the input value used as the denominator the following code will ensure that a divide by zero error will not cause unexpected results. If the method is called and a zero is passed as the second argument a DivideByZero error will be thrown and should be caught by the calling block with an output message indicating the error.

(good code)

const int DivideByZero = 10;
double divide(double x, double y){
if ( 0 == y ){
throw DivideByZero;
}
return x/y;
}
...
try{
divide(10, 0);
}
catch( int i ){
if(i==DivideByZero) {
cerr<<"Divide by zero error";
}
}
Example 2 References:
[REF-371] Alex Allain. "Handling Errors Exceptionally Well in C++". <http://www.cprogramming.com/tutorial/exceptions.html>.

Example 3

The following C# example contains a function that divides two numeric values without verifying that the input value used as the denominator is not zero. This will create an error for attempting to divide by zero, if this error is not caught by the error handling capabilities of the language, unexpected results can occur.

(bad code)
Example Language: C#
int Division(int x, int y){
return (x / y);
}

The method can be modified to raise, catch and handle the DivideByZeroException if the input value used as the denominator is zero.

(good code)

int SafeDivision(int x, int y){
try{
return (x / y);
}
catch (System.DivideByZeroException dbz){
System.Console.WriteLine("Division by zero attempted!");
return 0;
}
}
Example 3 References:
[REF-372] Microsoft. "Exceptions and Exception Handling (C# Programming Guide)". <https://msdn.microsoft.com/pl-pl/library/ms173160(v=vs.100).aspx>.
+ Observed Examples
ReferenceDescription
Invalid size value leads to divide by zero.
"Empty" content triggers divide by zero.
Height value of 0 triggers divide by zero.
+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.730OWASP Top Ten 2004 Category A9 - Denial of Service
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.738CERT C Secure Coding Standard (2008) Chapter 5 - Integers (INT)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.739CERT C Secure Coding Standard (2008) Chapter 6 - Floating Point (FLP)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.848The CERT Oracle Secure Coding Standard for Java (2011) Chapter 5 - Numeric Types and Operations (NUM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.872CERT C++ Secure Coding Section 04 - Integers (INT)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.873CERT C++ Secure Coding Section 05 - Floating Point Arithmetic (FLP)
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.998SFP Secondary Cluster: Glitch in Computation
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1137SEI CERT Oracle Secure Coding Standard for Java - Guidelines 03. Numeric Types and Operations (NUM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1158SEI CERT C Coding Standard - Guidelines 04. Integers (INT)
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
OWASP Top Ten 2004A9CWE More SpecificDenial of Service
CERT C Secure CodingFLP03-CDetect and handle floating point errors
CERT C Secure CodingINT33-CExactEnsure that division and remainder operations do not result in divide-by-zero errors
The CERT Oracle Secure Coding Standard for Java (2011)NUM02-JEnsure that division and modulo operations do not result in divide-by-zero errors
Software Fault PatternsSFP1Glitch in computation
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2008-04-11CWE Community
Submitted by members of the CWE community to extend early CWE versions
+ Modifications
Modification DateModifierOrganization
2008-07-01Sean EidemillerCigital
added/updated demonstrative examples
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Common_Consequences, Description, Relationships, Other_Notes, Taxonomy_Mappings
2008-11-24CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-05-27CWE Content TeamMITRE
updated Demonstrative_Examples
2009-10-29CWE Content TeamMITRE
updated Other_Notes
2011-06-01CWE Content TeamMITRE
updated Common_Consequences, Relationships, Taxonomy_Mappings
2011-09-13CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2015-12-07CWE Content TeamMITRE
updated Relationships
2017-11-08CWE Content TeamMITRE
updated Demonstrative_Examples, Taxonomy_Mappings
2019-01-03CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2020-02-24CWE Content TeamMITRE
updated Relationships
2020-08-20CWE Content TeamMITRE
updated Relationships
2020-12-10CWE Content TeamMITRE
updated Relationships

CWE-415: Double Free

Weakness ID: 415
Abstraction: Variant
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The product calls free() twice on the same memory address, potentially leading to modification of unexpected memory locations.
+ Extended Description
When a program calls free() twice with the same argument, the program's memory management data structures become corrupted. This corruption can cause the program to crash or, in some circumstances, cause two later calls to malloc() to return the same pointer. If malloc() returns the same value twice and the program later gives the attacker control over the data that is written into this doubly-allocated memory, the program becomes vulnerable to a buffer overflow attack.
+ Alternate Terms
Double-free
+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.666Operation on Resource in Wrong Phase of Lifetime
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.675Duplicate Operations on Resource
ChildOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.825Expired Pointer Dereference
PeerOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.123Write-what-where Condition
PeerOfVariantVariant - a weakness that is linked to a certain type of product, typically involving a specific language or technology. More specific than a Base weakness. Variant level weaknesses typically describe issues in terms of 3 to 5 of the following dimensions: behavior, property, technology, language, and resource.416Use After Free
CanFollowBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.364Signal Handler Race Condition
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.672Operation on a Resource after Expiration or Release
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "CISQ Quality Measures (2020)" (CWE-1305)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.672Operation on a Resource after Expiration or Release
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "CISQ Data Protection Measures" (CWE-1340)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.672Operation on a Resource after Expiration or Release
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Architecture and Design
Implementation
+ Applicable Platforms
Section HelpThis listing shows possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

C (Undetermined Prevalence)

C++ (Undetermined Prevalence)

+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Integrity
Confidentiality
Availability

Technical Impact: Modify Memory; Execute Unauthorized Code or Commands

Doubly freeing memory may result in a write-what-where condition, allowing an attacker to execute arbitrary code.
+ Likelihood Of Exploit
High
+ Demonstrative Examples

Example 1

The following code shows a simple example of a double free vulnerability.

(bad code)
Example Language:
char* ptr = (char*)malloc (SIZE);
...
if (abrt) {
free(ptr);
}
...
free(ptr);

Double free vulnerabilities have two common (and sometimes overlapping) causes:

  • Error conditions and other exceptional circumstances
  • Confusion over which part of the program is responsible for freeing the memory

Although some double free vulnerabilities are not much more complicated than the previous example, most are spread out across hundreds of lines of code or even different files. Programmers seem particularly susceptible to freeing global variables more than once.

Example 2

While contrived, this code should be exploitable on Linux distributions which do not ship with heap-chunk check summing turned on.

(bad code)
Example Language:
#include <stdio.h>
#include <unistd.h>
#define BUFSIZE1 512
#define BUFSIZE2 ((BUFSIZE1/2) - 8)

int main(int argc, char **argv) {
char *buf1R1;
char *buf2R1;
char *buf1R2;
buf1R1 = (char *) malloc(BUFSIZE2);
buf2R1 = (char *) malloc(BUFSIZE2);
free(buf1R1);
free(buf2R1);
buf1R2 = (char *) malloc(BUFSIZE1);
strncpy(buf1R2, argv[1], BUFSIZE1-1);
free(buf2R1);
free(buf1R2);
}
+ Observed Examples
ReferenceDescription
Chain: Signal handler contains too much functionality (CWE-828), introducing a race condition that leads to a double free (CWE-415).
Double free resultant from certain error conditions.
Double free resultant from certain error conditions.
Double free resultant from certain error conditions.
Double free from invalid ASN.1 encoding.
Double free from malformed GIF.
Double free from malformed GIF.
Double free from malformed compressed data.
+ Potential Mitigations

Phase: Architecture and Design

Choose a language that provides automatic memory management.

Phase: Implementation

Ensure that each allocation is freed only once. After freeing a chunk, set the pointer to NULL to ensure the pointer cannot be freed again. In complicated error conditions, be sure that clean-up routines respect the state of allocation properly. If the language is object oriented, ensure that object destructors delete each chunk of memory only once.

Phase: Implementation

Use a static analysis tool to find double free instances.
+ Affected Resources
  • Memory
+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.3987PK - Code Quality
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.742CERT C Secure Coding Standard (2008) Chapter 9 - Memory Management (MEM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.876CERT C++ Secure Coding Section 08 - Memory Management (MEM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.969SFP Secondary Cluster: Faulty Memory Release
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1162SEI CERT C Coding Standard - Guidelines 08. Memory Management (MEM)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1237SFP Primary Cluster: Faulty Resource Release
+ Notes

Relationship

This is usually resultant from another weakness, such as an unhandled error or race condition between threads. It could also be primary to weaknesses such as buffer overflows.

Theoretical

It could be argued that Double Free would be most appropriately located as a child of "Use after Free", but "Use" and "Release" are considered to be distinct operations within vulnerability theory, therefore this is more accurately "Release of a Resource after Expiration or Release", which doesn't exist yet.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
PLOVERDFREE - Double-Free Vulnerability
7 Pernicious KingdomsDouble Free
CLASPDoubly freeing memory
CERT C Secure CodingMEM00-CAllocate and free memory in the same module, at the same level of abstraction
CERT C Secure CodingMEM01-CStore a new value in pointers immediately after free()
CERT C Secure CodingMEM30-CCWE More SpecificDo not access freed memory
CERT C Secure CodingMEM31-CFree dynamically allocated memory exactly once
Software Fault PatternsSFP12Faulty Memory Release
+ References
[REF-44] Michael Howard, David LeBlanc and John Viega. "24 Deadly Sins of Software Security". "Sin 8: C++ Catastrophes." Page 143. McGraw-Hill. 2010.
[REF-62] Mark Dowd, John McDonald and Justin Schuh. "The Art of Software Security Assessment". Chapter 7, "Double Frees", Page 379. 1st Edition. Addison Wesley. 2006.
[REF-18] Secure Software, Inc.. "The CLASP Application Security Process". 2005. <https://cwe.mitre.org/documents/sources/TheCLASPApplicationSecurityProcess.pdf>.
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2006-07-19PLOVER
+ Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Potential_Mitigations, Time_of_Introduction
2008-08-01KDM Analytics
added/updated white box definitions
2008-09-08CWE Content TeamMITRE
updated Applicable_Platforms, Common_Consequences, Description, Maintenance_Notes, Relationships, Other_Notes, Relationship_Notes, Taxonomy_Mappings
2008-11-24CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2009-05-27CWE Content TeamMITRE
updated Demonstrative_Examples
2009-10-29CWE Content TeamMITRE
updated Other_Notes
2010-09-27CWE Content TeamMITRE
updated Relationships
2010-12-13CWE Content TeamMITRE
updated Observed_Examples, Relationships
2011-06-01CWE Content TeamMITRE
updated Common_Consequences
2011-09-13CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2012-05-11CWE Content TeamMITRE
updated References, Relationships
2014-07-30CWE Content TeamMITRE
updated Relationships, Taxonomy_Mappings
2015-12-07CWE Content TeamMITRE
updated Relationships
2017-11-08CWE Content TeamMITRE
updated Likelihood_of_Exploit, Relationships, Taxonomy_Mappings, White_Box_Definitions
2019-01-03CWE Content TeamMITRE
updated Relationships
2019-06-20CWE Content TeamMITRE
updated Relationships
2020-02-24CWE Content TeamMITRE
updated References, Relationships
2020-06-25CWE Content TeamMITRE
updated Common_Consequences
2020-08-20CWE Content TeamMITRE
updated Relationships
2020-12-10CWE Content TeamMITRE
updated Relationships
2021-03-15CWE Content TeamMITRE
updated Maintenance_Notes, Theoretical_Notes

CWE-494: Download of Code Without Integrity Check

Weakness ID: 494
Abstraction: Base
Structure: Simple
Status: Draft
Presentation Filter:
+ Description
The product downloads source code or an executable from a remote location and executes the code without sufficiently verifying the origin and integrity of the code.
+ Extended Description
An attacker can execute malicious code by compromising the host server, performing DNS spoofing, or modifying the code in transit.
+ Relationships
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Research Concepts" (CWE-1000)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.669Incorrect Resource Transfer Between Spheres
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.345Insufficient Verification of Data Authenticity
PeerOfBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.79Improper Neutralization of Input During Web Page Generation ('Cross-site Scripting')
CanFollowBaseBase - a weakness that is still mostly independent of a resource or technology, but with sufficient details to provide specific methods for detection and prevention. Base level weaknesses typically describe issues in terms of 2 or 3 of the following dimensions: behavior, property, technology, language, and resource.79Improper Neutralization of Input During Web Page Generation ('Cross-site Scripting')
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Software Development" (CWE-699)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1214Data Integrity Issues
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Weaknesses for Simplified Mapping of Published Vulnerabilities" (CWE-1003)
NatureTypeIDName
ChildOfClassClass - a weakness that is described in a very abstract fashion, typically independent of any specific language or technology. More specific than a Pillar Weakness, but more general than a Base Weakness. Class level weaknesses typically describe issues in terms of 1 or 2 of the following dimensions: behavior, property, and resource.669Incorrect Resource Transfer Between Spheres
Section HelpThis table shows the weaknesses and high level categories that are related to this weakness. These relationships are defined as ChildOf, ParentOf, MemberOf and give insight to similar items that may exist at higher and lower levels of abstraction. In addition, relationships such as PeerOf and CanAlsoBe are defined to show similar weaknesses that the user may want to explore.
+ Relevant to the view "Architectural Concepts" (CWE-1008)
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.1020Verify Message Integrity
+ Modes Of Introduction
Section HelpThe different Modes of Introduction provide information about how and when this weakness may be introduced. The Phase identifies a point in the life cycle at which introduction may occur, while the Note provides a typical scenario related to introduction during the given phase.
PhaseNote
Architecture and DesignOMISSION: This weakness is caused by missing a security tactic during the architecture and design phase.
Implementation
+ Applicable Platforms
Section HelpThis listing shows possible areas for which the given weakness could appear. These may be for specific named Languages, Operating Systems, Architectures, Paradigms, Technologies, or a class of such platforms. The platform is listed along with how frequently the given weakness appears for that instance.

Languages

Class: Language-Independent (Undetermined Prevalence)

+ Common Consequences
Section HelpThis table specifies different individual consequences associated with the weakness. The Scope identifies the application security area that is violated, while the Impact describes the negative technical impact that arises if an adversary succeeds in exploiting this weakness. The Likelihood provides information about how likely the specific consequence is expected to be seen relative to the other consequences in the list. For example, there may be high likelihood that a weakness will be exploited to achieve a certain impact, but a low likelihood that it will be exploited to achieve a different impact.
ScopeImpactLikelihood
Integrity
Availability
Confidentiality
Other

Technical Impact: Execute Unauthorized Code or Commands; Alter Execution Logic; Other

Executing untrusted code could compromise the control flow of the program. The untrusted code could execute attacker-controlled commands, read or modify sensitive resources, or prevent the software from functioning correctly for legitimate users.
+ Likelihood Of Exploit
Medium
+ Demonstrative Examples

Example 1

This example loads an external class from a local subdirectory.

(bad code)
Example Language: Java
URL[] classURLs= new URL[]{
new URL("file:subdir/")
};
URLClassLoader loader = new URLClassLoader(classURLs);
Class loadedClass = Class.forName("loadMe", true, loader);

This code does not ensure that the class loaded is the intended one, for example by verifying the class's checksum. An attacker may be able to modify the class file to execute malicious code.

Example 2

This code includes an external script to get database credentials, then authenticates a user against the database, allowing access to the application.

(bad code)
Example Language: PHP
//assume the password is already encrypted, avoiding CWE-312

function authenticate($username,$password){

include("http://external.example.com/dbInfo.php");

//dbInfo.php makes $dbhost, $dbuser, $dbpass, $dbname available
mysql_connect($dbhost, $dbuser, $dbpass) or die ('Error connecting to mysql');
mysql_select_db($dbname);
$query = 'Select * from users where username='.$username.' And password='.$password;
$result = mysql_query($query);

if(mysql_numrows($result) == 1){
mysql_close();
return true;
}
else{
mysql_close();
return false;
}

}

This code does not verify that the external domain accessed is the intended one. An attacker may somehow cause the external domain name to resolve to an attack server, which would provide the information for a false database. The attacker may then steal the usernames and encrypted passwords from real user login attempts, or simply allow themself to access the application without a real user account.

This example is also vulnerable to an Adversary-in-the-Middle AITM (CWE-300) attack.

+ Observed Examples
ReferenceDescription
OS does not verify authenticity of its own updates.
online poker client does not verify authenticity of its own updates.
anti-virus product does not verify automatic updates for itself.
VOIP phone downloads applications from web sites without verifying integrity.
+ Potential Mitigations

Phase: Implementation

Perform proper forward and reverse DNS lookups to detect DNS spoofing.
Note: This is only a partial solution since it will not prevent your code from being modified on the hosting site or in transit.

Phases: Architecture and Design; Operation

Encrypt the code with a reliable encryption scheme before transmitting.

This will only be a partial solution, since it will not detect DNS spoofing and it will not prevent your code from being modified on the hosting site.

Phase: Architecture and Design

Strategy: Libraries or Frameworks

Use a vetted library or framework that does not allow this weakness to occur or provides constructs that make this weakness easier to avoid.

Speficially, it may be helpful to use tools or frameworks to perform integrity checking on the transmitted code.

  • When providing the code that is to be downloaded, such as for automatic updates of the software, then use cryptographic signatures for the code and modify the download clients to verify the signatures. Ensure that the implementation does not contain CWE-295, CWE-320, CWE-347, and related weaknesses.
  • Use code signing technologies such as Authenticode. See references [REF-454] [REF-455] [REF-456].

Phases: Architecture and Design; Operation

Strategy: Environment Hardening

Run your code using the lowest privileges that are required to accomplish the necessary tasks [REF-76]. If possible, create isolated accounts with limited privileges that are only used for a single task. That way, a successful attack will not immediately give the attacker access to the rest of the software or its environment. For example, database applications rarely need to run as the database administrator, especially in day-to-day operations.

Phases: Architecture and Design; Operation

Strategy: Sandbox or Jail

Run the code in a "jail" or similar sandbox environment that enforces strict boundaries between the process and the operating system. This may effectively restrict which files can be accessed in a particular directory or which commands can be executed by the software.

OS-level examples include the Unix chroot jail, AppArmor, and SELinux. In general, managed code may provide some protection. For example, java.io.FilePermission in the Java SecurityManager allows the software to specify restrictions on file operations.

This may not be a feasible solution, and it only limits the impact to the operating system; the rest of the application may still be subject to compromise.

Be careful to avoid CWE-243 and other weaknesses related to jails.

Effectiveness: Limited

Note: The effectiveness of this mitigation depends on the prevention capabilities of the specific sandbox or jail being used and might only help to reduce the scope of an attack, such as restricting the attacker to certain system calls or limiting the portion of the file system that can be accessed.
+ Detection Methods

Manual Analysis

This weakness can be detected using tools and techniques that require manual (human) analysis, such as penetration testing, threat modeling, and interactive tools that allow the tester to record and modify an active session.

Specifically, manual static analysis is typically required to find the behavior that triggers the download of code, and to determine whether integrity-checking methods are in use.

Note: These may be more effective than strictly automated techniques. This is especially the case with weaknesses that are related to design and business rules.

Black Box

Use monitoring tools that examine the software's process as it interacts with the operating system and the network. This technique is useful in cases when source code is unavailable, if the software was not developed by you, or if you want to verify that the build phase did not introduce any new weaknesses. Examples include debuggers that directly attach to the running process; system-call tracing utilities such as truss (Solaris) and strace (Linux); system activity monitors such as FileMon, RegMon, Process Monitor, and other Sysinternals utilities (Windows); and sniffers and protocol analyzers that monitor network traffic.

Attach the monitor to the process and also sniff the network connection. Trigger features related to product updates or plugin installation, which is likely to force a code download. Monitor when files are downloaded and separately executed, or if they are otherwise read back into the process. Look for evidence of cryptographic library calls that use integrity checking.

+ Memberships
Section HelpThis MemberOf Relationships table shows additional CWE Categories and Views that reference this weakness as a member. This information is often useful in understanding where a weakness fits within the context of external information sources.
NatureTypeIDName
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.7522009 Top 25 - Risky Resource Management
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.8022010 Top 25 - Risky Resource Management
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.859The CERT Oracle Secure Coding Standard for Java (2011) Chapter 16 - Platform Security (SEC)
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.8652011 Top 25 - Risky Resource Management
MemberOfViewView - a subset of CWE entries that provides a way of examining CWE content. The two main view structures are Slices (flat lists) and Graphs (containing relationships between entries).884CWE Cross-section
MemberOfCategoryCategory - a CWE entry that contains a set of other entries that share a common characteristic.991SFP Secondary Cluster: Tainted Input to Environment
+ Notes

Research Gap

This is critical for mobile code, but it is likely to become more and more common as developers continue to adopt automated, network-based product distributions and upgrades. Software-as-a-Service (SaaS) might introduce additional subtleties. Common exploitation scenarios may include ad server compromises and bad upgrades.
+ Taxonomy Mappings
Mapped Taxonomy NameNode IDFitMapped Node Name
CLASPInvoking untrusted mobile code
The CERT Oracle Secure Coding Standard for Java (2011)SEC06-JDo not rely on the default automatic signature verification provided by URLClassLoader and java.util.jar
Software Fault PatternsSFP27Tainted input to environment
+ References
[REF-454] Microsoft. "Introduction to Code Signing". <http://msdn.microsoft.com/en-us/library/ms537361(VS.85).aspx>.
[REF-456] Apple. "Code Signing Guide". Apple Developer Connection. 2008-11-19. <http://developer.apple.com/documentation/Security/Conceptual/CodeSigningGuide/Introduction/chapter_1_section_1.html>.
[REF-457] Anthony Bellissimo, John Burgess and Kevin Fu. "Secure Software Updates: Disappointments and New Challenges". <http://prisms.cs.umass.edu/~kevinfu/papers/secureupdates-hotsec06.pdf>.
[REF-44] Michael Howard, David LeBlanc and John Viega. "24 Deadly Sins of Software Security". "Sin 18: The Sins of Mobile Code." Page 267. McGraw-Hill. 2010.
[REF-459] Johannes Ullrich. "Top 25 Series - Rank 20 - Download of Code Without Integrity Check". SANS Software Security Institute. 2010-04-05. <http://blogs.sans.org/appsecstreetfighter/2010/04/05/top-25-series-rank-20-download-code-integrity-check/>.
[REF-76] Sean Barnum and Michael Gegick. "Least Privilege". 2005-09-14. <https://buildsecurityin.us-cert.gov/daisy/bsi/articles/knowledge/principles/351.html>.
[REF-18] Secure Software, Inc.. "The CLASP Application Security Process". 2005. <https://cwe.mitre.org/documents/sources/TheCLASPApplicationSecurityProcess.pdf>.
+ Content History
+ Submissions
Submission DateSubmitterOrganization
2006-07-19CLASP
+ Modifications
Modification DateModifierOrganization
2008-07-01Eric DalciCigital
updated Time_of_Introduction
2008-09-08CWE Content TeamMITRE
updated Relationships, Other_Notes, Taxonomy_Mappings
2009-01-12CWE Content TeamMITRE
updated Applicable_Platforms, Common_Consequences, Description, Name, Other_Notes, Potential_Mitigations, References, Relationships, Research_Gaps, Type
2009-03-10CWE Content TeamMITRE
updated Potential_Mitigations
2009-07-27CWE Content TeamMITRE
updated Description, Observed_Examples, Related_Attack_Patterns
2010-02-16CWE Content TeamMITRE
updated Detection_Factors, References, Relationships
2010-04-05CWE Content TeamMITRE
updated Applicable_Platforms
2010-06-21CWE Content TeamMITRE
updated Common_Consequences, Detection_Factors, Potential_Mitigations, References
2010-09-27CWE Content TeamMITRE
updated Potential_Mitigations, References
